ENGINE OVERHAUL GASKET KIT

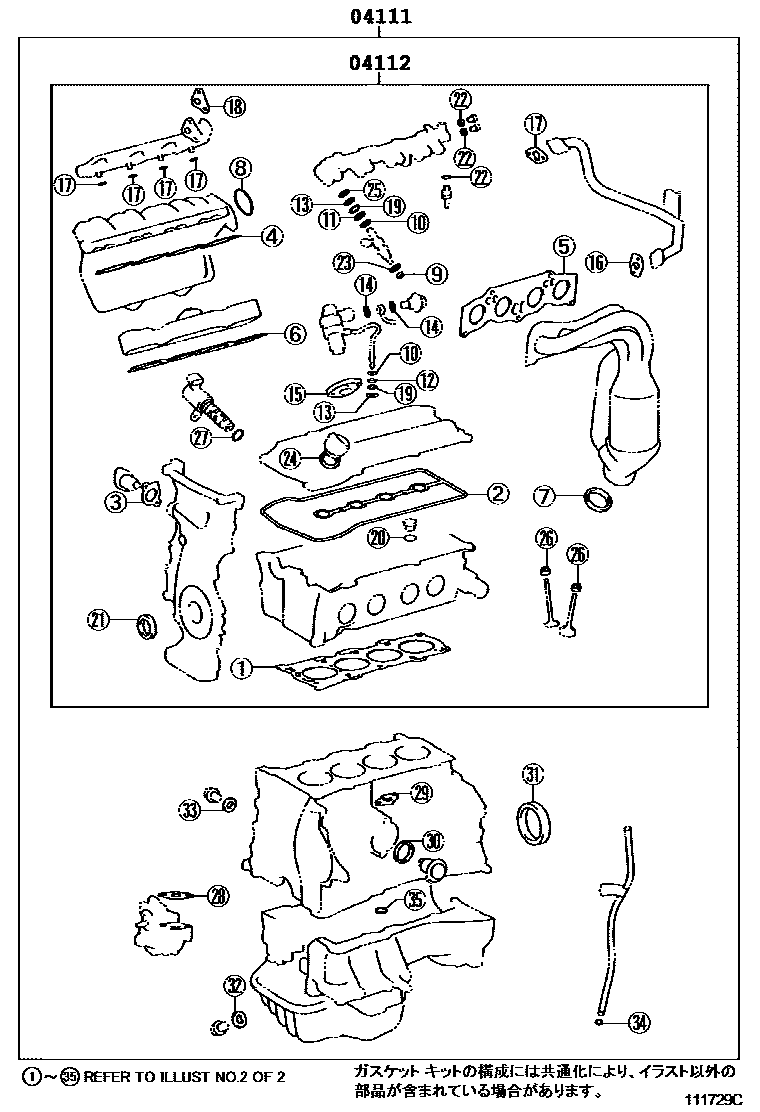

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-28062i200104-200211
main04111-28063i200211-200212
main04111-28064i200212-200304
main04111-28065i200304-200311
main04111-28350i200311
sub04111-28321
main04111-64362i199805-199811
main04111-64363i199811-199906
main04111-64364i199906-200104
main04111-64710i200311-200409
main04111-74730i200104-200208
04112GASKET KIT, ENGINE VALVE GRIND
main04112-28062i200104-200211
main04112-28063i200211-200212
main04112-28064i200212-200304
main04112-28065i200304-200311
main04112-28340i200311
sub04112-28311
main04112-64271i199805-199906
main04112-64272i199906-200104
main04112-74730i200104-200208

2 parts on this diagram · 6 diagrams in section
