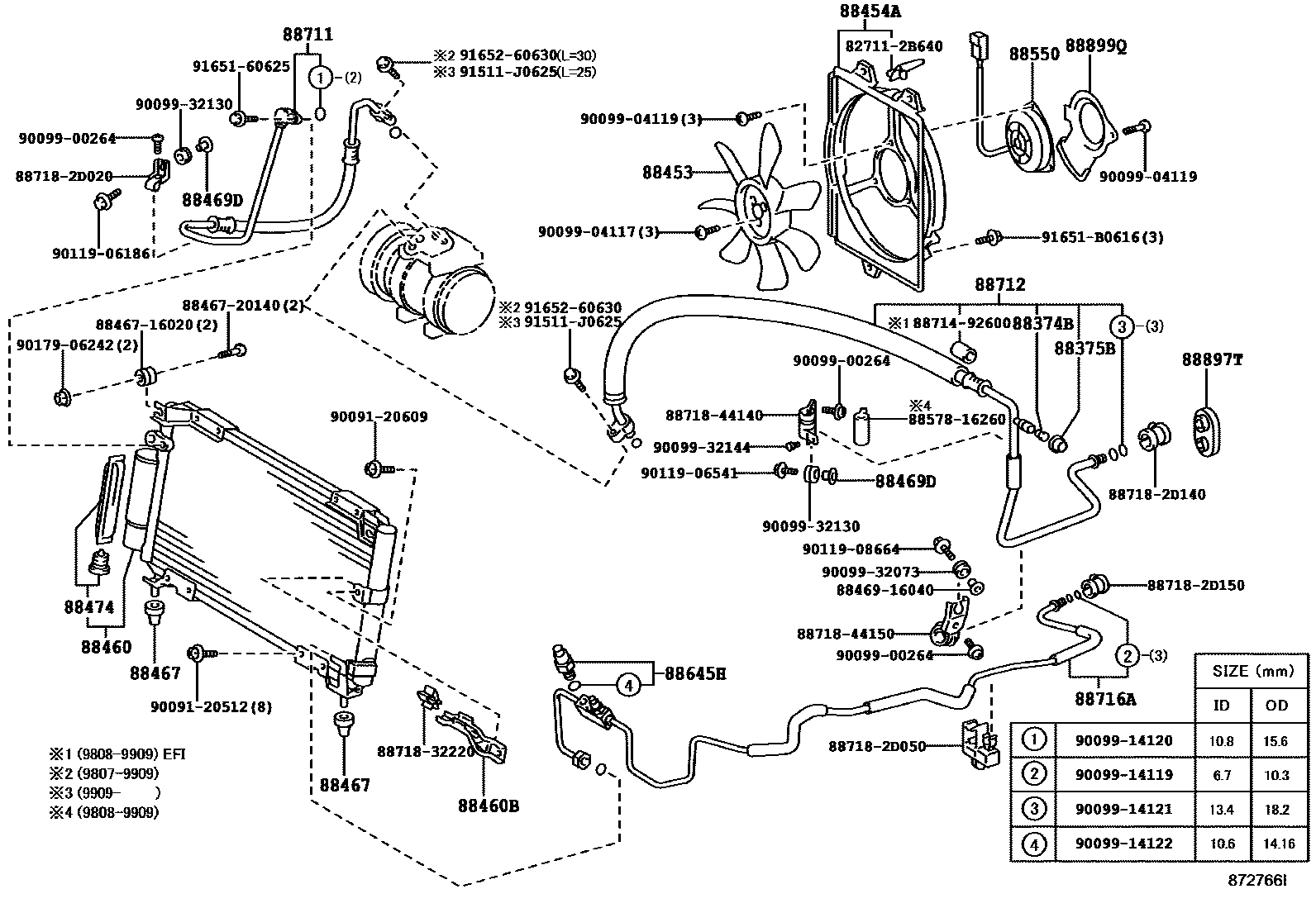

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

88374BVALVE, SERVICE, NO.1

main88374-30010iSXN1#199807-200104

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iSXN1#199807-200104

88453FAN, COOLING (FOR CONDENSER)

main88453-20080iACN1#,SXN1#199807

88454ASHROUD, FAN

main16711-74600iACN10,SXN1#199807-200208

sub16711-74601

main16711-74601iACN1#200208

88460CONDENSER ASSY, COOLER

main88460-44330iACN1#,SXN1#199807

sub88460-44340

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-44160iACN1#,SXN1#199807

88467CUSHION, COOLER CONDENSER, NO.1

main88467-20190iACN1#,SXN15200109

main88467-32060iACN10,SXN1#199807-200109

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-28010iSXN1#199807-200104

88474DRYER, COOLER

main88474-47010iACN1#,SXN1#199807

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-74150iACN1#,SXN1#199807

88645HSWITCH, PRESSURE NO.1

main88645-36050iSXN1#199807-200104

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-44160iSXN1#199807-199909

main88711-44240iSXN1#199909-200104

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-44260iSXN1#..EFI199807-199909

main88712-44270iSXN10..D4199807-199909

main88712-44340iSXN1#..EFI199909-200104

main88712-44350iSXN10..D4199909-200104

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-44340iSXN1#199807-200104

88897TGROMMET, COOLER

main88897-44010iACN1#,SXN1#199807

88899QPLATE, COVER

main88899-74070iACN1#,SXN1#199807

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8846716020CUSHION, COOLER CONDENSER, NO.1

main88467-16020

8846720140CUSHION, COOLER CONDENSER, NO.1

main88467-20140

8846916040SWITCH, PRESSURE CONTROL

main88469-16040

8857816260PAKING, COOLER AIR DUCT

main88578-16260

8871492600HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-92600

887182D020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D020

887182D050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D050

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

8871844140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-44140

8871844150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-44150

9009120512

main90091-20512

9009120609

main90091-20609

9009900264

main90099-00264

9009904117

main90099-04117

9009904119

main90099-04119

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9009932073

main90099-32073

9009932130

main90099-32130

9009932144

main90099-32144

9011906186

main90119-06186

9011906541

main90119-06541

9011908664

main90119-08664

9017906242

main90179-06242

91511J0625

main91511-J0625

9165160625

main91651-60625

91651B0616

main91651-B0616

9165260630

main91652-60630

49 parts on this diagram · 3 diagrams in section
