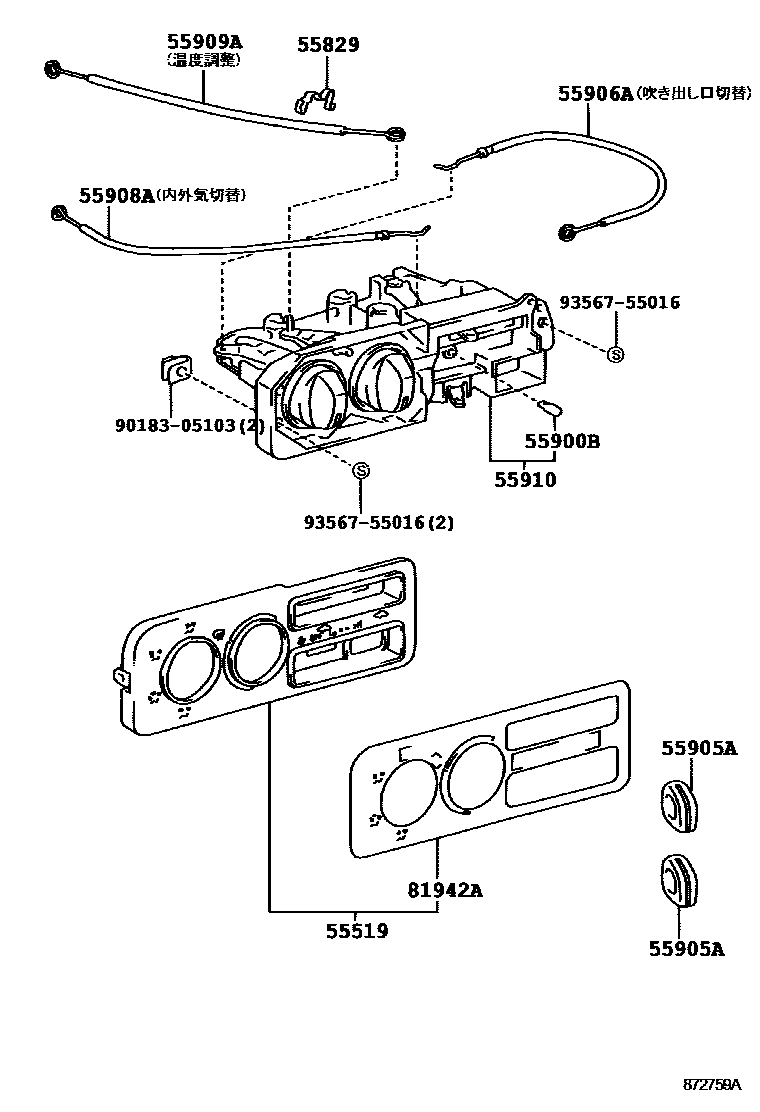

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1������(����� ��) 0002 1������(����� ��) 0003 1����-� 0004 1����-�,��(������ & ������-) 0005 1�� ���� 0006 1����

55519PLATE, HEATER CONTROL NAME

main55519-44010iSXN1#..EFI199807-200104

sub55519-16220

55829CLAMP, VENTILATOR CONTROL CABLE, LOWER

main55829-37010iSXN1#..EFI199807-200104

55900BBULB, AIR CONDITIONER CONTROL

main90010-05101iACN1#,SXN15200104

main90010-05101iSXN1#199807-200104

main90010-05130iACN1#,SXN15200104

main90981-11014iSXN1#..EFI199807-200104

55905AKNOB, HEATER CONTROL

main55905-44010iSXN1#..SU199906-200104

main55905-44030iACN1#,SXN15200104

main55905-44080iACN1#,SXN15200104

main55905-44090iACN1#,SXN15200104

main55905-44240iACN1#,SXN15200104

main55905-60170iSXN1#..STD199807-200104

main55905-60180iSXN1#199807-200104

main55905-60190iSXN1#199807-200104

main55905-60200iSXN1#199807-200104

main55905-60210iSXN1#199807-200104

main55905-60220iSXN1#199807-200104

main55905-60230iSXN1#199807-200104

main55905-60240iSXN1#199807-200104

main55905-89115iSXN1#..EFI199807-200104

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-44030iSXN1#..EFI199807-200104

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-44040iSXN1#..EFI199807-200104

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-44050iSXN1#..EFI199807-200104

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-44010iSXN1#..EFI199807-200104

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-44010iSXN1#..EFI199807-200104

9018305103

main90183-05103

9356755016

main93567-55016

11 parts on this diagram · 6 diagrams in section
