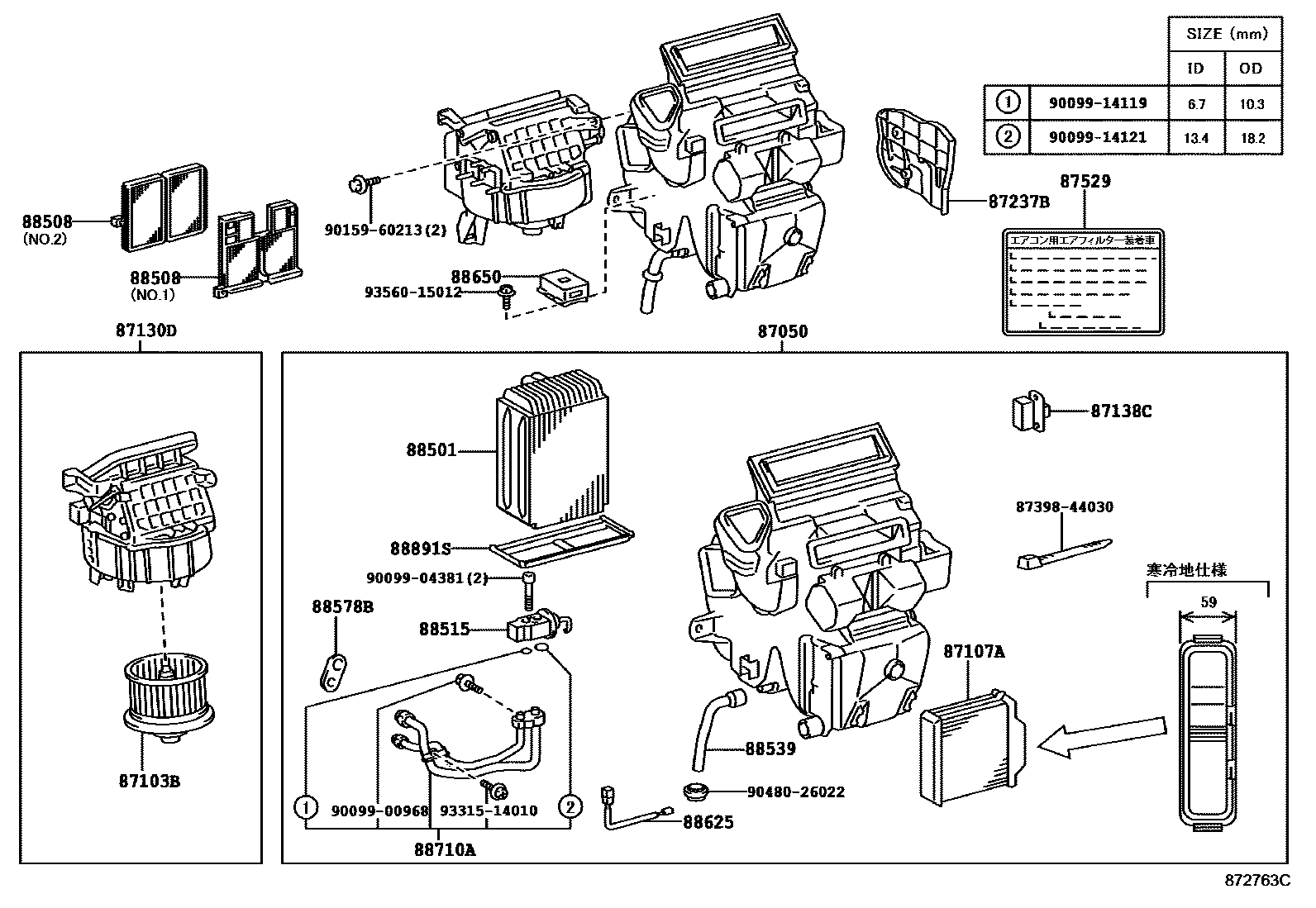

HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
87138CRESISTOR, BLOWER
87237BCOVER, HEATER PIPING
87529PLATE, AIR FILTER CAUTION
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88508FILTER SUB-ASSY, CLEAN AIR
88515VALVE, COOLER EXPANSION
88539HOSE, COOLER UNIT DRAIN, NO.1
88578BPACKING, COOLING UNIT, NO.1
88625THERMISTOR, COOLER, NO.1
88650AMPLIFIER ASSY, COOLER STABILIZER
88710ATUBE ASSY, AIR CONDITIONER
88891SCOVER, COOLER, NO.1
8739844030BAND ASSY (FOR COMBUSTION HEATER)
main87398-44030
9009900968
main90099-00968
9009904381
main90099-04381
9009914119
main90099-14119
9009914121
main90099-14121
9015960213
main90159-60213
9048026022
main90480-26022
9331514010
main93315-14010
9356015012
main93560-15012
25 parts on this diagram · 3 diagrams in section
