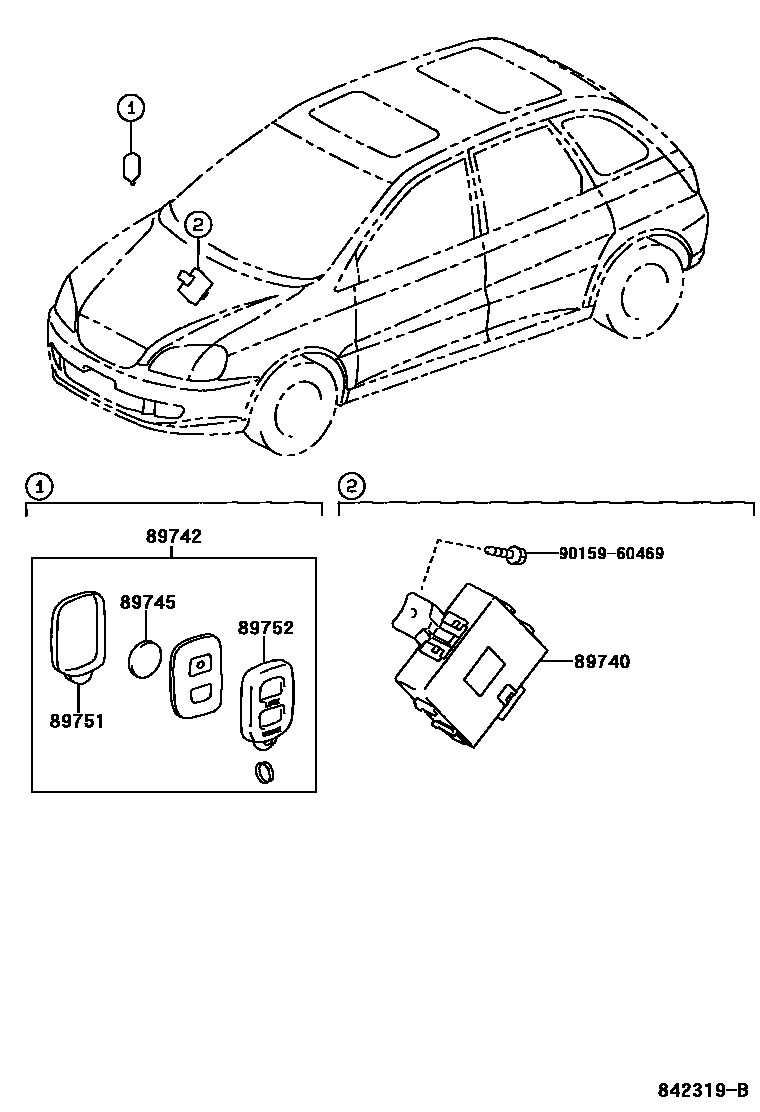

WIRELESS DOOR LOCK

0001 1 0002 1

89740COMPUTER ASSY, DOOR CONTROL W/RECEIVER

main89740-44011iSXN1#199807-200104

89742TRANSMITTER, DOOR CONTROL

main89742-44010iSXN1#199807-200104

89745BATTERY, TRANSMITTER

main89745-26010iACN1#,SXN15200104

sub89745-41010

main89745-50010iSXN1#199807-200104

sub89745-71010

89751COVER, TRANSMITTER HOUSING

main89751-44010iACN1#,SXN15200104

main89751-44050iSXN1#199807-200104

89752CASE, TRANSMITTER HOUSING

main89752-44020iSXN1#199807-200104

9015960469

main90159-60469

6 parts on this diagram · 2 diagrams in section
