SWITCH & RELAY & COMPUTER

0001 1����� & ���� ����� 0002 1����� & ���� ����� 0003 1����� & ��������� 0004 1����� �-� 0005 1����� �-� 0006 1����� ���� 0007 1��� 0008 1�-������ ���� 0009 1�-������ ���� 0010 1���,�-� & ���

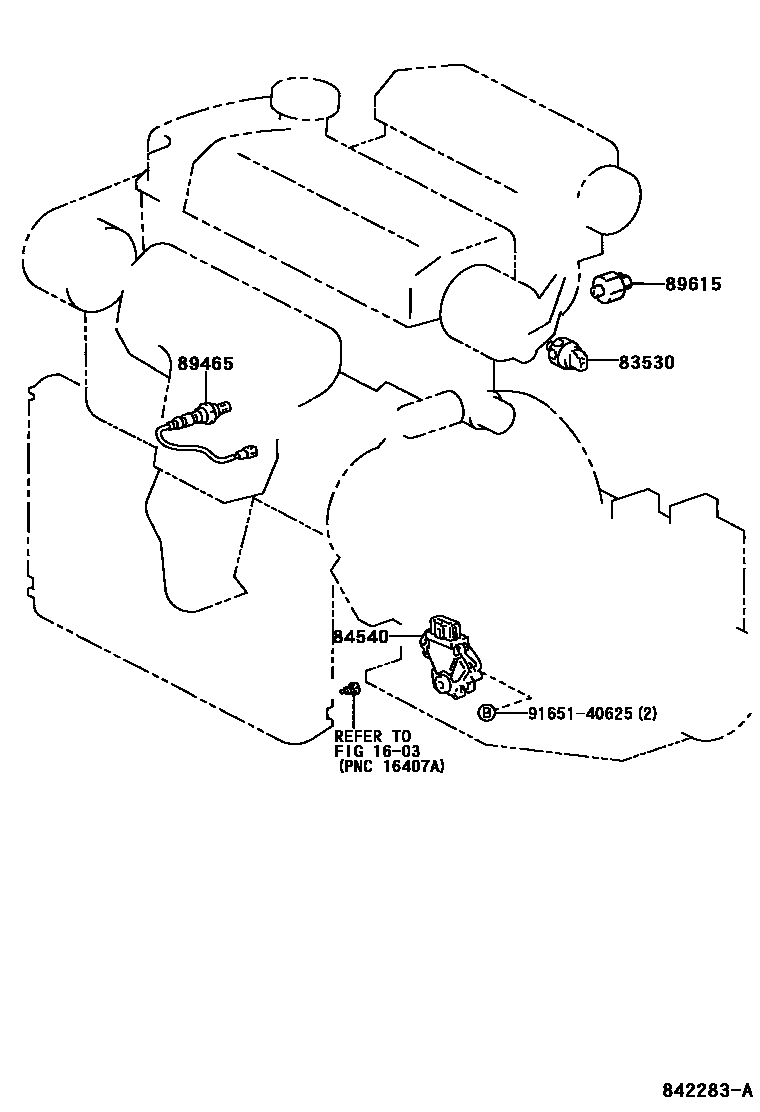

1603

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iACN1#,SXN1#199807

main83530-60020iACN1#,SXN1#199807

84540SWITCH ASSY, NEUTRAL START

main84540-12200iSXN10199807-200104

main84540-12210iSXN10199807-200104

main84540-12230iACN1#200104

sub84540-32110

main84540-16050iSXN15199807-200104

main84540-52010iSXN15200104-200208

89465SENSOR, OXYGEN

main89465-44020iSXN1#..EFI199807-200208

main89465-44040iSXN10..D4199807-200104

main89465-44070iACN1#200104

89615SENSOR, KNOCK CONTROL

main89615-20030iSXN1#..EFI199807-199910

sub89615-32040

main89615-20070iSXN10..D4199810-199909

sub89615-32050

main89615-30080iACN10200104-200105

main89615-32030iSXN10..EFI;ACN10,SXN15199910-200208

main89615-32040iSXN1#..EFI199910-200208

sub89615-32030

main89615-32050iSXN10..D4199909-200104

main89615-33020iSXN1#..EFI199807-199910

sub89615-32030

main89615-44010iACN1#200105

9165140625

main91651-40625

6 parts on this diagram · 10 diagrams in section
