SEAT BELT & CHILD RESTRAINT SEAT

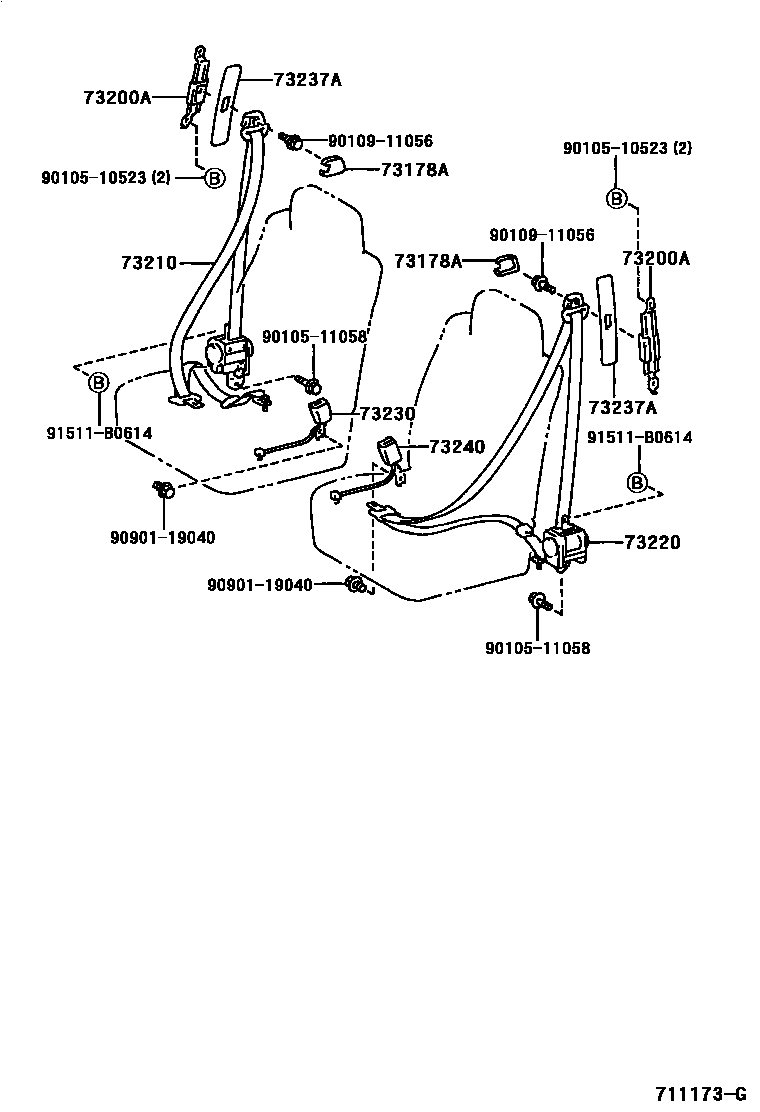

Parts diagram
73178ACAP, SEAT BELT ANCHOR COVER
main73178-12040-A0i200001
sub73178-12040
main73178-12040-B0i199807-200104
LT.GRAY,TRIM1#
sub73178-12040
main73178-33020-A0i200104
IVORY,TRIM0#
sub73178-33020
main73178-33020-B6i200104
LT.GRAY,TRIM1#
sub73178-33020
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-21010-A1i200104
IVORY,TRIM0#
main73200-21010-A1i200001
main73200-21010-B1i199807
LT.GRAY,TRIM1#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-44060-A0i200001
main73210-44060-B1i199807-200104
BLUISH GRAY,TRIM1#
main73210-44060-B2i199906-200104
BLUISH GRAY,TRIM1#
main73210-44110-A0i200104
IVORY,TRIM0#
main73210-44110-B0i200104
BLUISH GRAY,TRIM1#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-44090-A0i200001
main73220-44090-B1i199807-200104
BLUISH GRAY,TRIM1#
main73220-44090-B2i199906-200104
BLUISH GRAY,TRIM1#
main73220-44120-A0i200104
IVORY,TRIM0#
main73220-44120-B0i200104
BLUISH GRAY,TRIM1#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-44010-A1i200104-200208
IVORY,TRIM0#
main73230-44010-A1i200001
main73230-44010-B1i199807-200104
BLUE GRAY,TRIM1#
main73230-44010-B2i199906
SHADOW GRAY,TRIM1#
main73230-44060-A0i200104
main73230-44060-A0i200208
IVORY,TRIM0#
73237ACOVER, SHOULDER BELT ANCHOR
main73237-21010-A0i200001
sub73237-21010
main73237-21010-A0i200104
IVORY,TRIM0#
sub73237-21010
main73237-21010-B1i199807
LT.GRAY,TRIM1#
sub73237-21010
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-44010-A1i200001
main73230-44010-B1i199807-200104
BLUE GRAY,TRIM1#
main73230-44010-B2i199906-200104
SHADOW GRAY,TRIM1#
main73230-44050-A0i200104
IVORY,TRIM0#
main73230-44070-A0i200104
IVORY,TRIM0#
main73230-44080-B0i200104
SHADOW GRAY,TRIM1#
9010510523
main90105-10523
9010511058
main90105-11058
9010911056
main90109-11056
9090119040
main90901-19040
91511B0614
main91511-B0614

12 parts on this diagram · 4 diagrams in section
