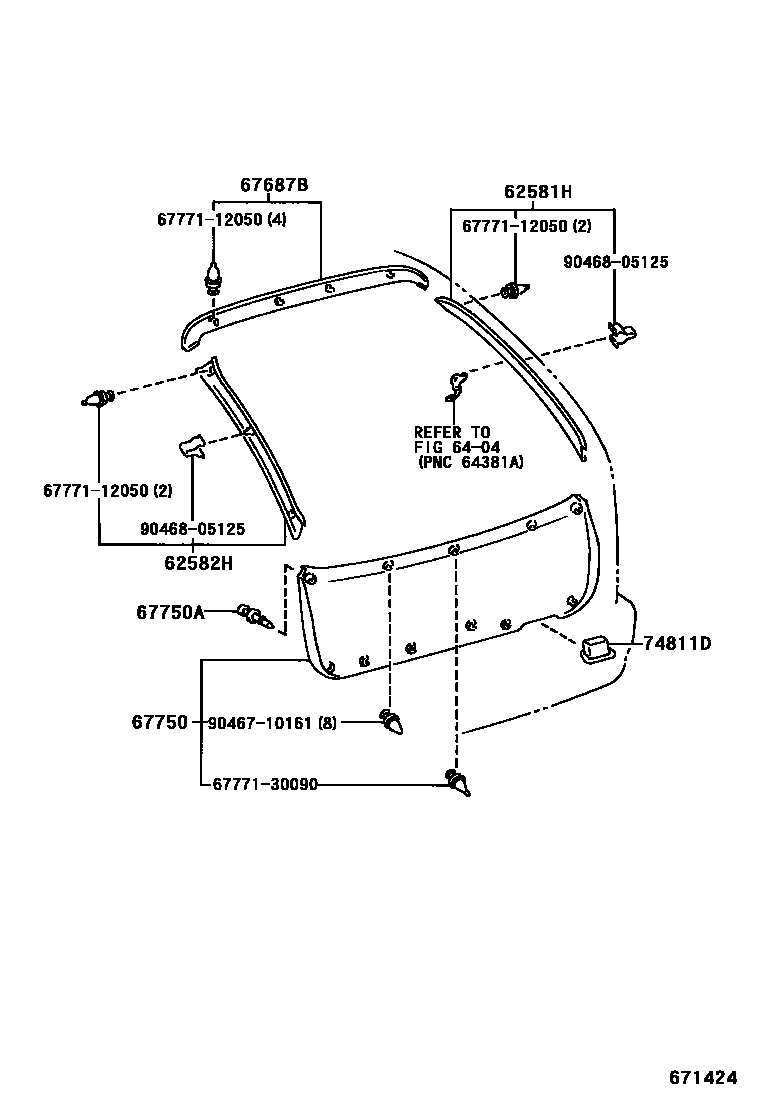

BACK DOOR PANEL & GLASS

0001 1 0002 1

62581HGARNISH, REAR WINDOW SIDE, RH

main62581-44030-A0iSXN1#..STD..NOG200001

sub62581-44030

main62581-44030-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

sub62581-44030

main62581-44030-B0iACN1#,SXN1#..NOG,S199807

LT.GRAY,TRIM1#

sub62581-44030

62582HGARNISH, REAR WINDOW SIDE, LH

main62582-44030-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

sub62582-44030

main62582-44030-A0iSXN1#..STD..NOG200001

sub62582-44030

main62582-44030-B0iACN1#,SXN1#..NOG,S199807

LT.GRAY,TRIM1#

sub62582-44030

6404

67687BGARNISH, BACK WINDOW

main67687-44030-A0iSXN1#..STD..NOG200001

main67687-44030-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

main67687-44030-B0iACN1#,SXN1#..NOG,S199807

LT.GRAY,TRIM1#

67750BOARD ASSY, BACK DOOR TRIM

main67750-44030-A0iSXN1#..STD..NOG200001

sub67750-44030

main67750-44030-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

sub67750-44030

main67750-44030-B0iACN1#,SXN1#..NOG,S199807

LT.GRAY,TRIM1#

sub67750-44030

67750ACLIP(FOR BACK DOOR TRIM)

main90467-10199-A0iSXN1#..STD..NOG200001

main90467-10199-A0iACN1#,SXN15..L,X200104

IVORY,TRIM0#

main90467-10199-B0iACN1#,SXN1#..NOG,S199807

LT.GRAY,TRIM1#

74811DHANDLE, DOOR PULL

main74811-13010-A2iSXN1#..STD..NOG200001

sub74811-13010

main74811-13010-A2iACN1#,SXN15..L,X200104

IVORY,TRIM0#

sub74811-13010

main74811-13010-B1iACN1#,SXN1#..NOG,S199807

LT.GRAY,TRIM1#

sub74811-13010

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

6777130090WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30090

9046710161

main90467-10161

9046805125

main90468-05125

11 parts on this diagram · 2 diagrams in section
