REAR DOOR PANEL & GLASS

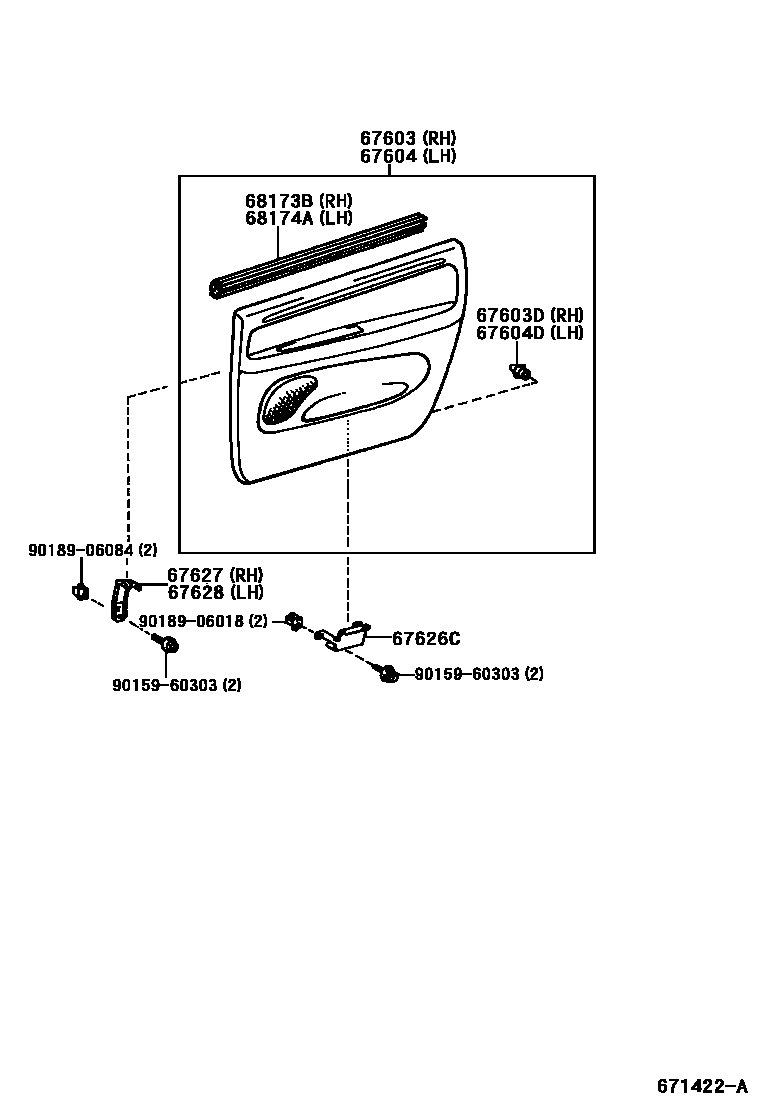

Parts diagram

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-44080-B0i199807-200104

main67630-44090-B0i199807-200104

main67630-44100-B0i199807-200104

main67630-44160-B0i199812

main67630-44170-B0i199906-200104

main67630-44180-B0i199906-200104

main67630-44190-B0i199811

main67630-44200-A0i200001

main67630-44300-A0i200104

IVORY,TRIM0#

main67630-44310-B0i200104

BLUISH GRAY,TRIM1#

main67630-44320-A0i200104

IVORY,TRIM0#

67603DRETAINER, REAR DOOR TRIM, RH

main67771-28020i199807-199810

main67771-28020i199810-200201

main90467-09203i200201

main90467-09206i200201

main90467-10156i199810-200201

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-44080-B0i199807-200104

main67640-44090-B0i199807-200104

main67640-44100-B0i199807-200104

main67640-44160-B0i199812

main67640-44170-B0i199906-200104

main67640-44180-B0i199906-200104

main67640-44190-B0i199811

main67640-44200-A0i200001

main67640-44300-A0i200104

IVORY,TRIM0#

main67640-44310-B0i200104

BLUISH GRAY,TRIM1#

main67640-44320-A0i200104

IVORY,TRIM0#

67604DRETAINER, REAR DOOR TRIM, LH

main67771-28020i199807-199810

main67771-28020i199810-200201

main90467-09203i200201

main90467-09206i200201

main90467-10156i199810-200201

67626CBRACKET, REAR DOOR TRIM, NO.2

main67625-44010i199807

67627BRACKET, REAR DOOR TRIM, RH

main67643-44010i199807

67628BRACKET, REAR DOOR TRIM, LH

main67644-44010i199807

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-44030i199807

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-44030i199807

9015960303

main90159-60303

9018906018

main90189-06018

9018906084

main90189-06084

12 parts on this diagram · 2 diagrams in section
