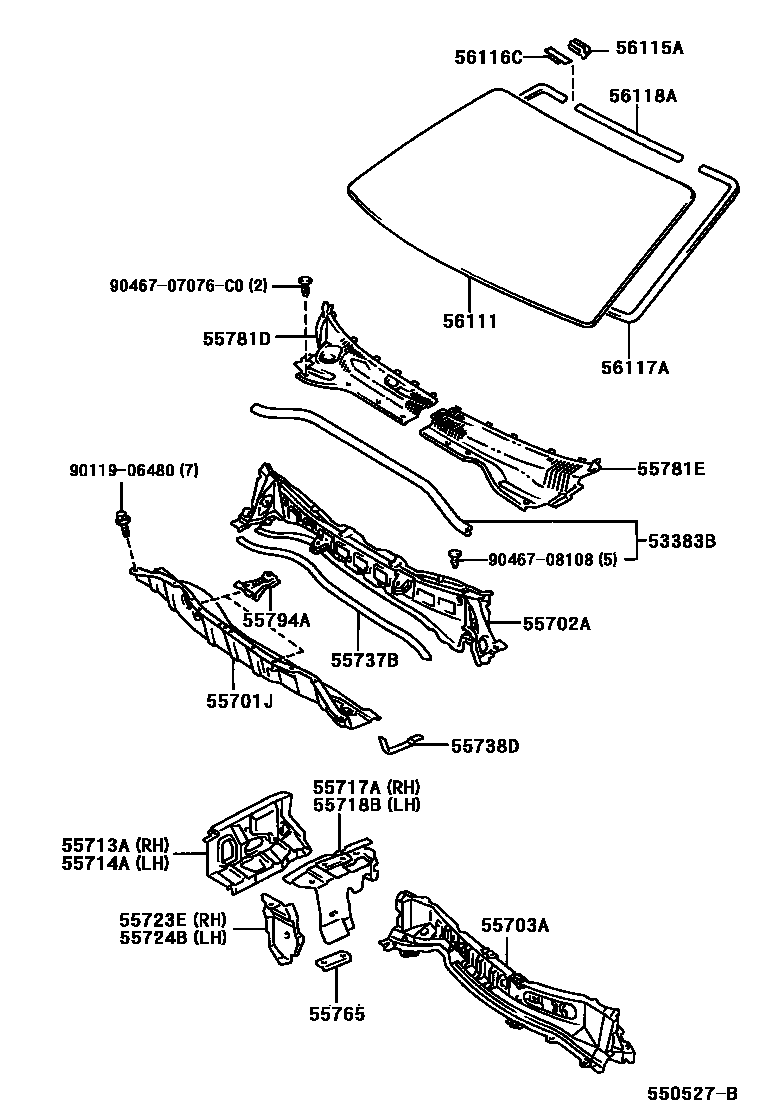

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-44020iSXN1#199807-199902

main53383-44021iSXN1#199902-199911

main53383-44022iACN1#,SXN1#199911

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55712-44030iSXN1#199807-200208

main55712-44060iACN1#200104

55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT

main55702-44030iACN1#,SXN1#199807

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-44030iACN1#,SXN1#199807

55713APANEL, COWL TOP SIDE, RH

main55713-44020iACN1#,SXN1#199807

55714APANEL, COWL TOP SIDE, LH

main55714-44020iACN1#,SXN1#199807

55717APANEL, COWL TOP SIDE, INNER RH

main55717-44020iACN1#,SXN1#199807

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-44020iACN1#,SXN1#199807

55723EGUSSET, FRONT PANEL, RH

main55723-44020iACN1#,SXN1#199807

55724BGUSSET, FRONT PANEL, LH

main55724-44020iACN1#,SXN1#199807

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-44010iACN1#,SXN1#199807

sub55737-48010

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-44010×2iACN1#,SXN1#199807

55765BRACKET, HOOD DAMPER MOUNTING

main55765-44010×2iACN1#,SXN1#199807

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-44060iACN1#,SXN1#199807

main55708-44070iACN1#,SXN1#199807

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55709-44060iACN1#,SXN1#199807

main55709-44070iACN1#,SXN1#199807

55794ABRACKET, WEATHERSTRIP WIPER PIVOT GUIDE, NO.2

main55794-44020iACN1#,SXN1#199807

main55794-44030iACN1#,SXN1#199807

56111GLASS, WINDSHIELD

main56111-44040iACN1#,SXN1#199807

main56111-44210iACN1#,SXN15200104

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iSXN1#199807-199905

main56115-33040×2iSXN1#199905-200104

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iACN1#,SXN1#199807

56117ADAM, WINDOW GLASS ADHESIVE

main56117-44030iACN1#,SXN1#199807

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-44020iACN1#,SXN1#199807

sub56118-50050

9011906480

main90119-06480

9046707076C0

main90467-07076C0

9046708108

main90467-08108

24 parts on this diagram · 1 diagram in section
