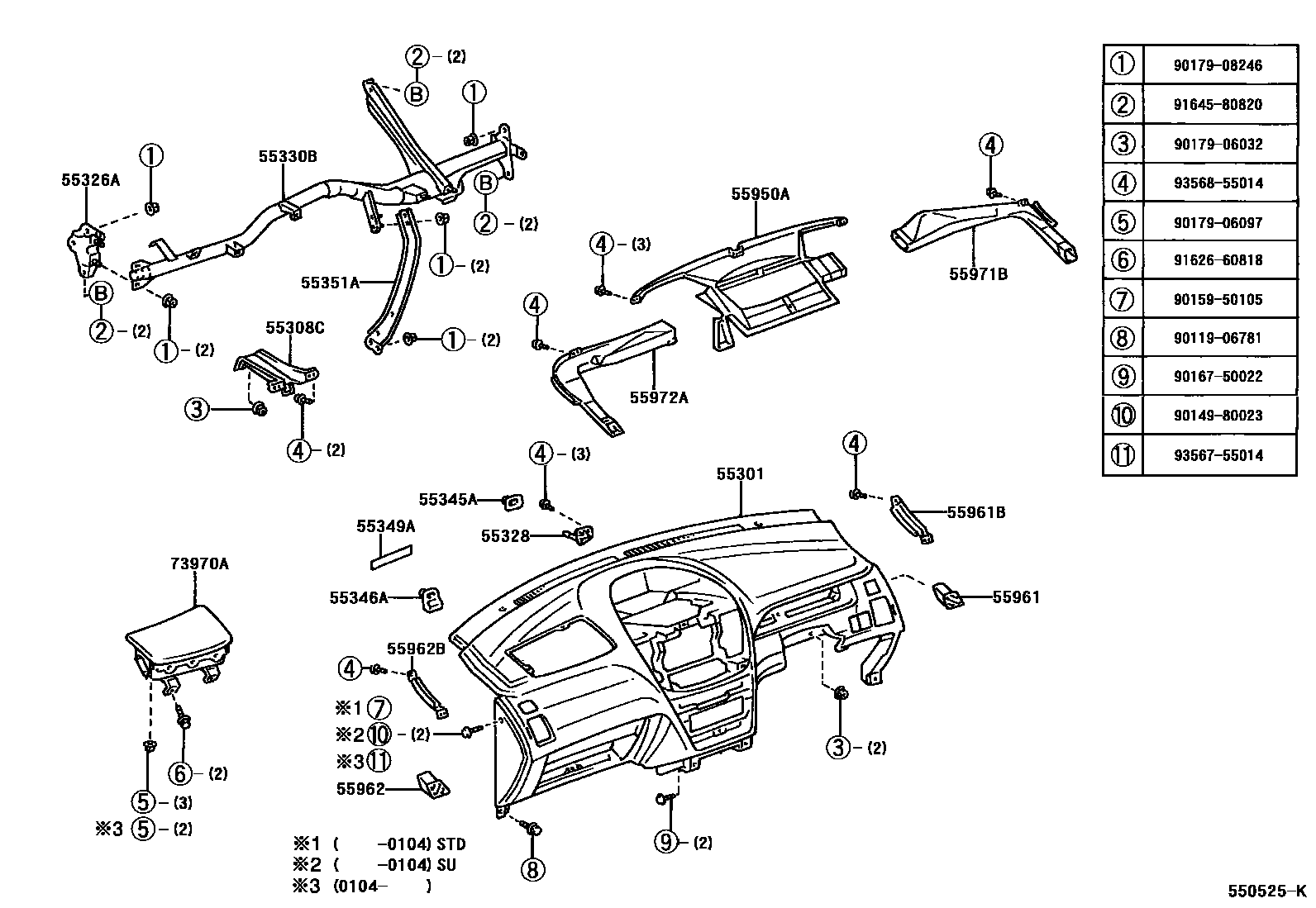

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
sub55311-44040
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55326ASTAY, INSTRUMENT PANEL, NO.1
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55345ACLIP, INSTRUMENT PANEL, NO.1
55346ACLIP, INSTRUMENT PANEL, NO.2
55349ACUSHION, INSTRUMENT PANEL
55351ABRACE, INSTRUMENT PANEL TO FLOOR
55950ANOZZLE ASSY, DEFROSTER
55961NOZZLE, SIDE DEFROSTER, NO.1
sub55961-44030
55961BNOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
sub55962-44030
55962BNOZZLE, SIDE DEFROSTER, LH
55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1
55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2
9011906781
main90119-06781
9014980023
main90149-80023
9015950105
main90159-50105
9016750022
main90167-50022
9017906032
main90179-06032
9017906097
main90179-06097
9017908246
main90179-08246
9162660818
main91626-60818
9164580820
main91645-80820
9356755014
main93567-55014
9356855014
main93568-55014
28 parts on this diagram · 2 diagrams in section
