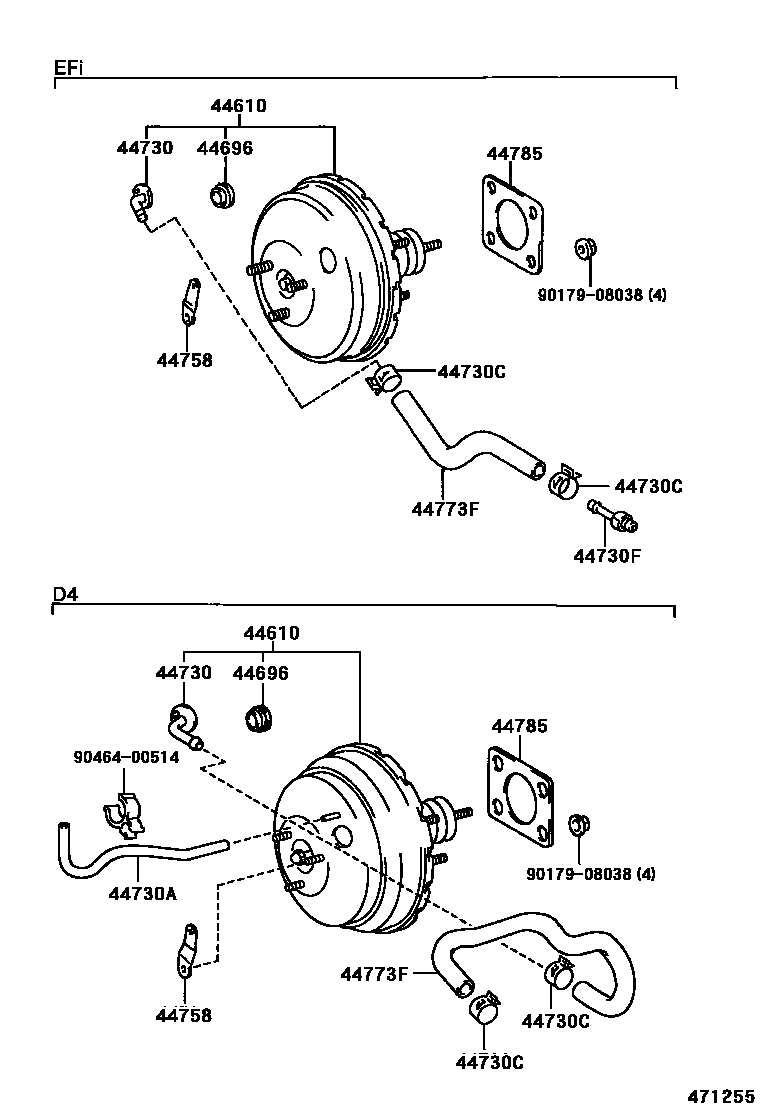

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-44110iACN1#,SXN10..STD..D4199807

main44610-44120iSXN1#..STD..EFI199807-200208

main44610-44130iSXN1#..SU199906-200208

main44610-44200iACN1#..SU200104

44696GROMMET, CHECK VALVE

main90480-24015iACN1#,SXN1#199807

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28010iACN1#,SXN1#199807

44730AHOSE, VACUUM, NO.1

main90999-92003iSXN10..D4199807-200104

44730CCLIP(FOR VACUUM HOSE)

main96134-51500iACN1#,SXN1#199807

sub96133-41500

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iSXN1#..EFI199807-200208

44758BRACKET, VACUUM CHECK VALVE

main44758-44020iSXN10..EFI;ACN1#,SXN15199807

sub44758-32070

main44758-44030iSXN10..D4199807-200104

44773FHOSE, UNION TO CHECK VALVE

main44773-44010iSXN1#..STD..EFI199807-200208

main44773-44030iSXN10..D4199807-200104

main44773-44040iSXN1#..SU199906-200208

main44773-44070iACN10..SU200104-200208

main44773-44090iACN1#..STD200104

main44773-44110iACN1#..SU200208

44785GASKET, BRAKE BOOSTER

main44785-20020iACN1#,SXN1#199807

9017908038

main90179-08038

9046400514

main90464-00514

11 parts on this diagram · 2 diagrams in section
