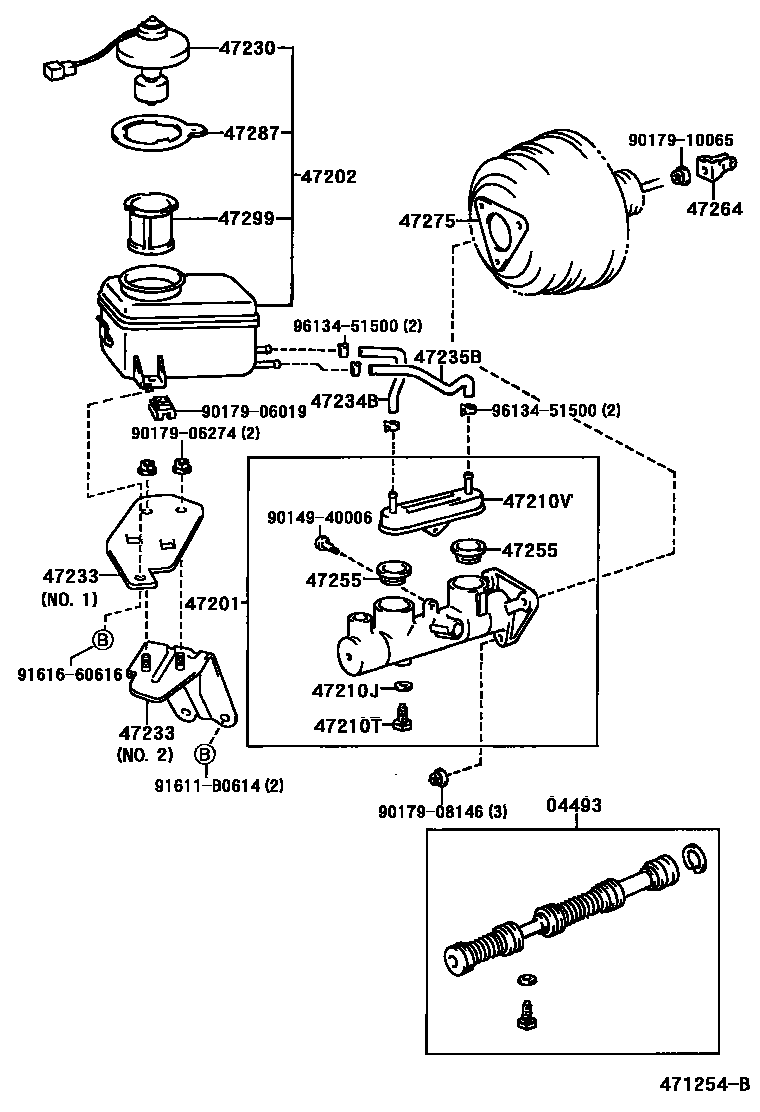

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-2B010iACN1#,SXN15199807

main04493-44010iSXN10199807-200104

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-44021iSXN10199807-200104

main47201-44070iACN1#,SXN15199807

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-44020iACN1#,SXN1#199807

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iACN1#,SXN1#199807

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iACN1#,SXN1#199807

47210VUNION(FOR BRAKE MASTER CYLINDER)

main90029-40011iACN1#,SXN1#199807

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-30040iACN1#,SXN1#199807

47233BRACKET, RESERVOIR

main47233-44041iACN1#,SXN1#199807

sub47233-44040

main47233-44050iACN1#,SXN1#199807

47234BTUBE, RESERVOIR, NO.1

main47234-44050iACN1#,SXN1#199807

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-44050iACN1#,SXN1#199807

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iACN1#,SXN1#199807

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-28010iACN1#,SXN1#199807

47275GASKET, BRAKE MASTER CYLINDER

main47275-32010iACN1#,SXN1#199807

47287LABEL, BRAKE FLUID INFORMATION

main47287-20020iACN1#,SXN1#199807

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iACN1#,SXN1#199807

9014940006

main90149-40006

9017906019

main90179-06019

9017906274

main90179-06274

9017908146

main90179-08146

9017910065

main90179-10065

91611B0614

main91611-B0614

9161660616

main91616-60616

9613451500

main96134-51500

23 parts on this diagram · 1 diagram in section
