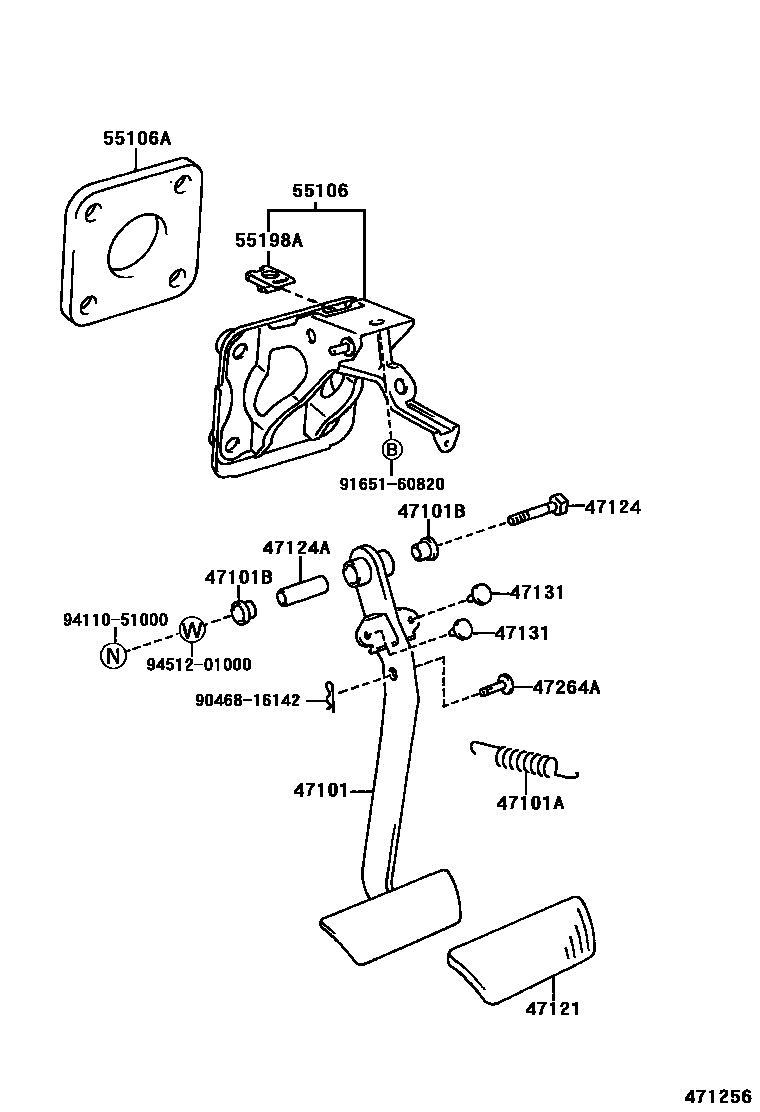

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-44060iSXN1#..STD199807-200104

main47101-44110iSXN1#..SU199906-200104

main47101-44160iACN1#,SXN15..STD200104

main47101-44170iACN1#,SXN15..SU200104

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-06025iACN1#,SXN1#199807

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iACN1#,SXN1#199807

47121PAD, BRAKE PEDAL

main47121-14010iSXN1#199807-200104

main47121-52010iACN1#,SXN15200104

47124SHAFT, BRAKE PEDAL

main90101-10164iACN1#,SXN1#199807

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iACN1#,SXN1#199807

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iACN1#,SXN1#199807

47264APIN(FOR PUSH ROD)

main90249-10064iACN1#,SXN1#199807

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-44030iACN1#,SXN1#199807

55106ASEAL, DASH PANEL

main55259-20010iACN1#,SXN1#199807

55198AHOLDER, BRAKE AWAY MOUNTING BOLT

main55198-13010iACN1#,SXN1#199807

9046816142

main90468-16142

9165160820

main91651-60820

9411051000

main94110-51000

9451201000

main94512-01000

15 parts on this diagram · 1 diagram in section
