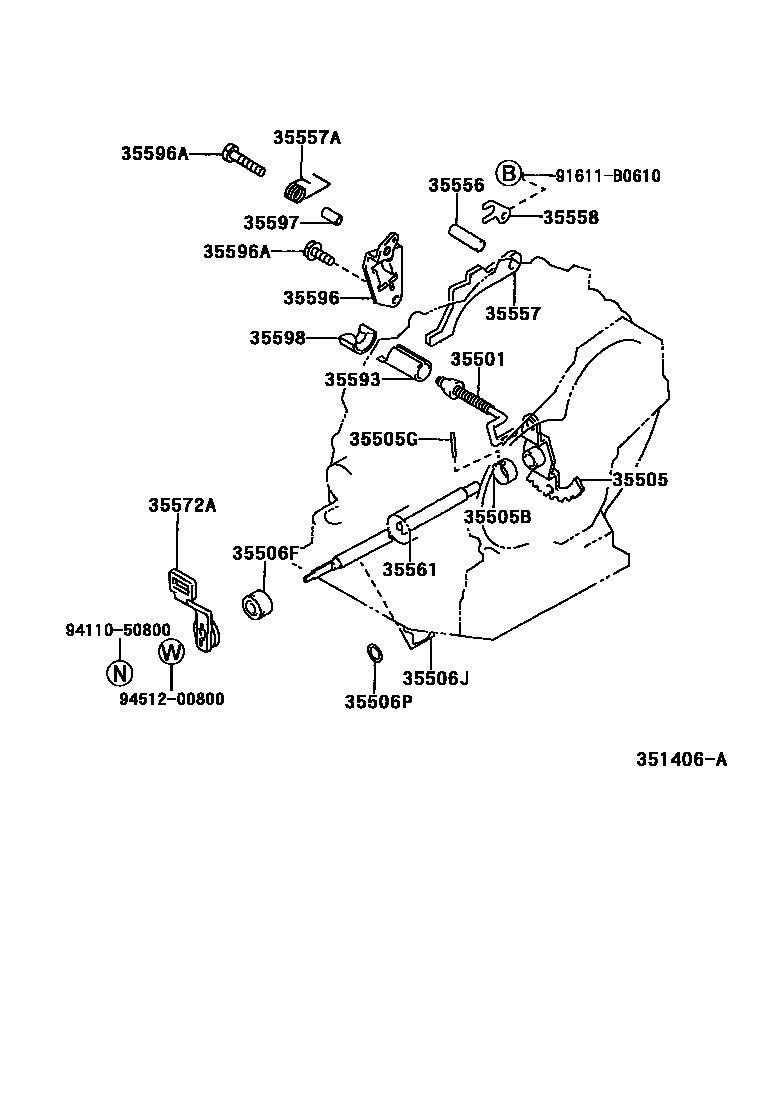

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A243F,A247E,A248E,A248F 0003 1A247E,A248E 0004 1A243F 0005 1U240E

35501ROD SUB-ASSY, PARKING LOCK

main35501-12010iSXN1#..EFI199807-200204

main35501-12030iACN10200104-200308

main35501-21010iSXN10..D4199807-200104

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-10030iSXN15200204-200208

main35505-20040iSXN15199807-200204

main35505-32020iSXN10..D4199807-200104

main35505-44010iSXN10..EFI199807-200104

main35505-44020iACN1#200104-200308

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iACN1#,SXN1#199807-200308

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iACN1#,SXN1#199807-200308

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iACN1#,SXN1#199807-200308

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iSXN10..D4199807-200104

main90524-11001iSXN10..EFI;ACN1#,SXN15199807-200308

35506PWASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT)

main90201-12028iSXN10..EFI;ACN1#,SXN15199807-200308

35556SHAFT, PARKING LOCK PAWL

main35556-12020iSXN10..EFI;ACN1#,SXN15199807-200308

main35556-32030iSXN10..D4199807-200104

35557PAWL, PARKING LOCK

main35557-12020iSXN1#..EFI199807-200204

main35557-12030iACN10200104-200308

main35590-32010iSXN10..D4199807-200104

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90506-18077iSXN10..D4199807-200104

main90508-21003iSXN1#..EFI199807-200204

main90949-03060iACN1#,SXN15200104-200308

35558CLAMP, PAWL SHAFT

main35558-12010iSXN10..EFI;ACN1#,SXN15199807-200308

main35558-32010iSXN10..D4199807-200104

35561SHAFT, MANUAL VALVE LEVER

main35561-12020iSXN15199807-200208

main35561-12030iSXN10..EFI199807-200104

main35561-12040iACN1#200104-200308

main35561-21010iSXN10..D4199807-200104

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-44020iSXN15199807-200208

main35572-44030iSXN10..EFI199807-200104

sub35572-44040

main35572-44040iACN1#200104-200308

main35572-48010iSXN10..D4199807-200104

35593SLEEVE, CAM GUIDE

main35593-12010iSXN10..EFI;ACN1#,SXN15199807-200308

35596PLATE, PAWL STOPPER

main35596-12010iSXN10..EFI;ACN1#,SXN15199807-200308

35596ABOLT (FOR PAWL STOPPER PLATE)

main90105-08068iSXN10..EFI;ACN10,SXN15199807-200202

sub90105-08333

main90105-08070iSXN10..EFI;ACN1#,SXN15199807-200308

main90105-08333iACN10,SXN15200202-200308

sub91551-C0835

35597SLEEVE, SPRING GUIDE

main35597-12010iSXN10..EFI;ACN1#,SXN15199807-200308

35598SLEEVE, PARKING LOCK

main35598-12010iSXN10..EFI;ACN1#,SXN15199807-200308

91611B0610

main91611-B0610

9411050800

main94110-50800

9451200800

main94512-00800

21 parts on this diagram · 4 diagrams in section
