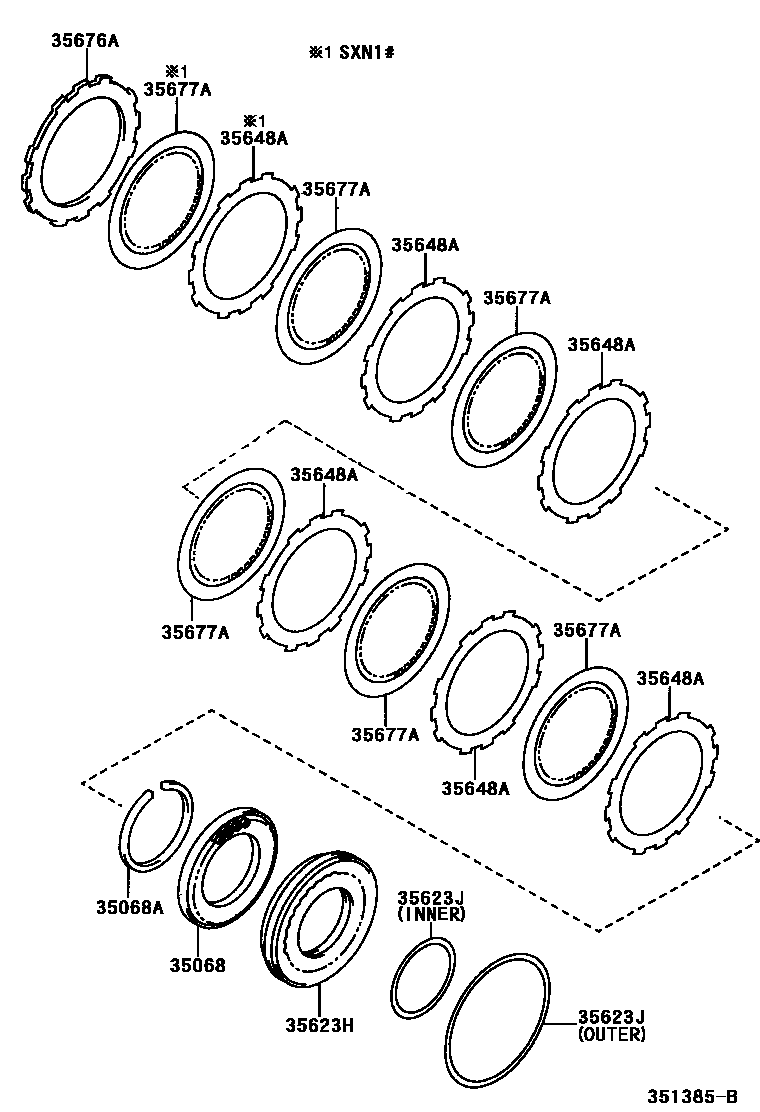

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A243F,A247E,A248E,A248F 0003 1U240E

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-12010iACN1#;SXN10..EFI199807-200308

main35068-20010iSXN15199807-200208

main35068-21010iSXN10..D4199807-200104

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iSXN10..EFI;ACN1#,SXN15199807-200308

main90520-99035iSXN10..D4199807-200104

35623HPISTON, 1ST & REVERSE BRAKE

main35623-12030iSXN10..EFI199807-200104

main35623-20020iACN1#200104-200308

main35623-20030iSXN15199807-200208

main35623-48010iSXN10..D4199807-200104

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iSXN15199807-200208

main90301-94004iACN1#;SXN10..EFI200008-200308

main90301-99022iSXN15199807-200208

main90301-99096iSXN10..D4199807-200104

main90301-99098iSXN10..D4199807-200104

sub90301-99134

main90301-99131iACN1#;SXN10..EFI200008-200308

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-12020iSXN10..EFI199807-200308

main35648-32020iSXN15199807-200208

main35692-21010iSXN10..D4199807-200104

sub35692-21011

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-12030iSXN10..EFI;ACN1#,SXN15199904-200308

main35676-32010iSXN1#..EFI199807-199904

sub35676-12030

main35678-21010iSXN10..D4199807-200104

main35678-21020iSXN10..D4199807-200104

main35678-21030iSXN10..D4199807-200104

main35678-21040iSXN10..D4199807-200104

main35678-21050iSXN10..D4199807-200104

main35678-21060iSXN10..D4199807-200104

main35678-21070iSXN10..D4199807-200104

main35678-21080iSXN10..D4199807-200104

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12060iSXN15199807-200208

main35677-20070iSXN10..EFI199807-200104

main35677-32080iACN1#200104-200308

main35682-21010iSXN10..D4199807-200104

7 parts on this diagram · 2 diagrams in section
