TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

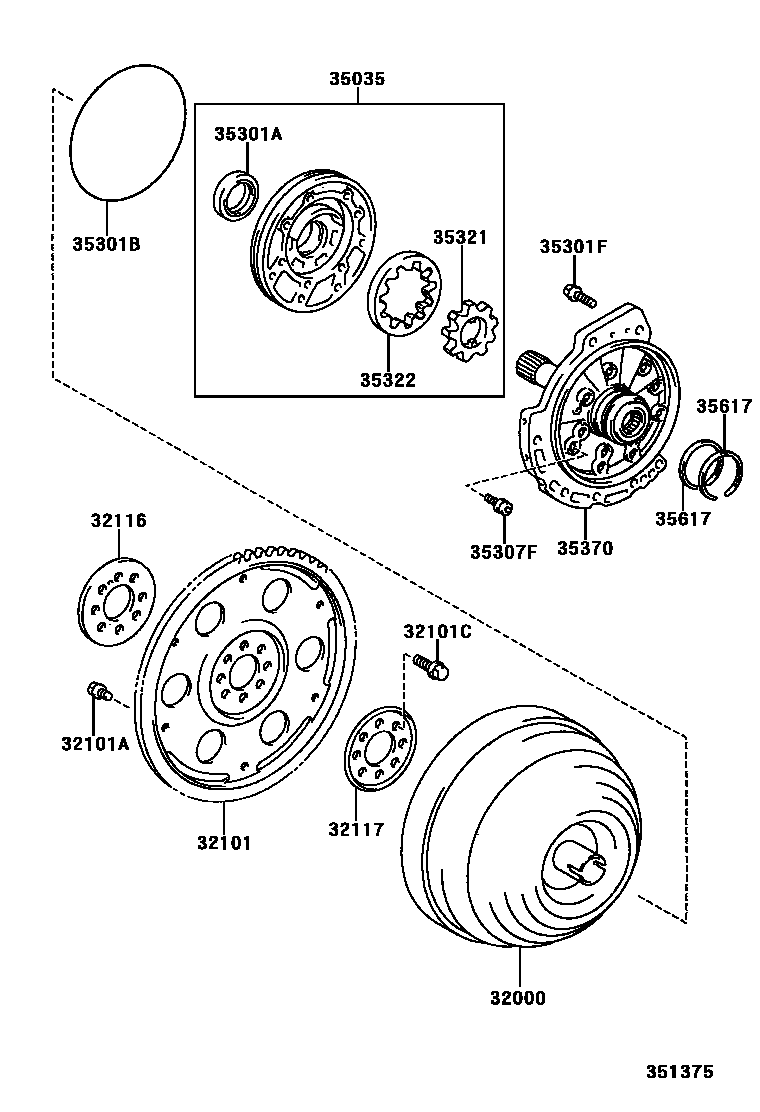

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-32170i199807-200104
main32000-44010i199807-200104
main32000-44020i199807-200208
main32000-44050i200104-200308
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-28040i200104
main32101-32051i199807-200208
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-08107i200104-200208
main90109-08113i199807-200208
main90109-09001i200104
main90119-08269i200104-200208
main90119-08498i199807-200208
main90119-09025i200104
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-12184i200104
sub90105-12384
main90109-10054i199807-200208
32116SPACER, DRIVE PLATE, FRONT
main32116-20050i200104
main32116-32011i199807-200208
32117SPACER, DRIVE PLATE, REAR
main32117-20060i200104
main32117-32010i199807-200208
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-21010i199807-200008
sub35035-21H00
main35035-21020i200008-200104
sub35035-28010
35301BODY SUB-ASSY, FRONT OIL PUMP
main35035-12010i199807-200308
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38020i199807-200009
main90311-38064i199810-200104
main90311-38082i200009-200308
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99024i199807-200308
main90301-99099i199807-200104
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08050i199807-200104
main90105-08198i199807-200308
35307FBOLT (FOR STATOR SHAFT)
main90119-06808i199807-200308
sub90119-06559
main90148-60027i199807-200104
35321GEAR, FRONT OIL PUMP DRIVE
main35321-12020i199807-200308
main35321-12030i199807-200308
main35321-12040i199807-200308
main35321-12050i199807-200308
main35321-12060i199807-200308
main35321-21010i199807-200008
sub35035-21H00
main35321-21020i199807-200008
sub35035-21H00
main35321-21030i199807-200008
sub35035-21H00
main35321-21040i199807-200008
sub35035-21H00
main35321-21050i199807-200008
sub35035-21H00
main35321-21060i200008-200104
sub35321-28060
main35321-21070i200008-200104
sub35321-28070
main35321-21080i200008-200104
sub35321-28080
main35321-21090i200008-200104
sub35321-28090
main35321-21100i200008-200104
sub35321-28100
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-12010i199807-200308
main35322-12020i199807-200308
main35322-12030i199807-200308
main35322-12040i199807-200308
main35322-12050i199807-200308
main35322-21010i199807-200008
sub35035-21H00
main35322-21020i199807-200008
sub35035-21H00
main35322-21030i199807-200008
sub35035-21H00
main35322-21040i199807-200008
sub35035-21H00
main35322-21050i199807-200008
sub35035-21H00
main35322-21060i200008-200104
sub35322-28060
main35322-21070i200008-200104
sub35322-28070
main35322-21080i200008-200104
sub35322-28080
main35322-21090i200008-200104
sub35322-28090
main35322-21100i200008-200104
sub35322-28100
35370SHAFT ASSY, STATOR
main35370-12040i199807-200208
main35370-12050i199807-200104
sub35370-32060
main35370-21010i199807-200008
sub35035-21H00
main35370-21030i200008-200104
main35370-32060i200104-200308
35617RING, CLUTCH DRUM OIL SEAL
main35613-21010i199807-200104
main35617-32011i199807-200308

16 parts on this diagram · 2 diagrams in section
