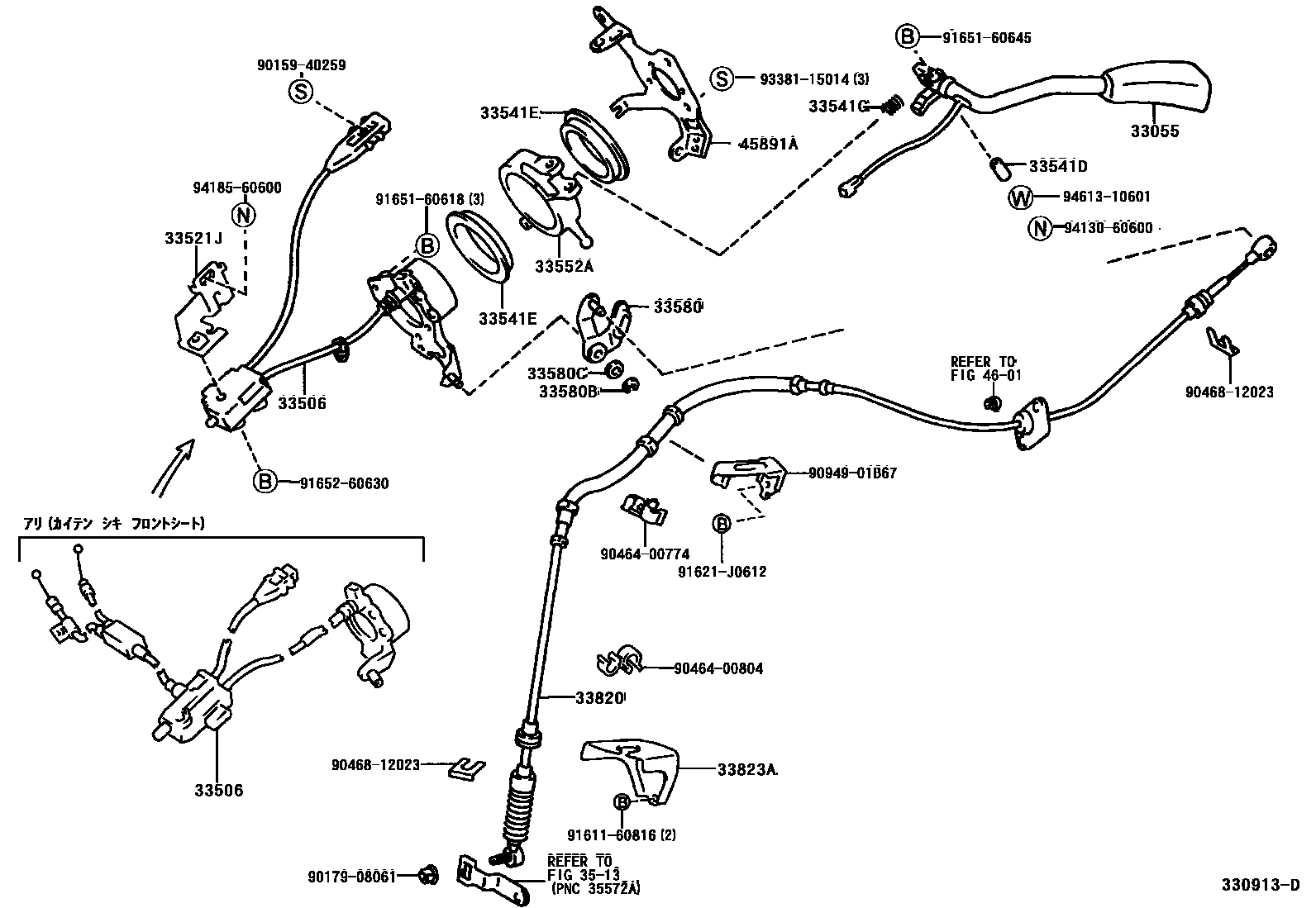

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1

33055LEVER SUB-ASSY, COLUMN SHIFT

main33055-44030iACN1#,SXN15200104

main33055-44040iSXN1#199807-200104

33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33506-44040iACN1#,SXN1#199807

main33506-44050iSXN1#199807-200104

33521JHOUSING, SHIFT LEVER (FOR COLUMN SHIFT)

main33521-44010iACN1#,SXN1#199807

33541DCOLLAR (FOR COLUMN SHIFT LEVER)

main90387-06062iACN1#,SXN1#199807

33541EBUSH (FOR COLUMN SHIFT LEVER)

main90387-49001iACN1#,SXN1#199807

33541GSPRING, COMPRESSION (FOR COLUMN SHIFT LEVER)

main90501-16150iACN1#,SXN1#199807

33552AARM, SHIFT LEVER

main33552-44011iACN1#,SXN1#199807

33580BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)

main33580-44010iACN1#,SXN1#199807

33580BRING, SHAFT SNAP (FOR SHIFTING BELLCRANK)

main96160-01000iACN1#,SXN1#199807

33580CWASHER, PLATE (FOR SHIFTING BELL CRANK)

main90560-11028iACN1#,SXN1#199807

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-44111iSXN1#..STD..EFI199807-200208

sub33820-44112

main33820-44120iSXN10..D4199807-200104

sub33820-44121

main33820-44130iSXN1#..SU199906-200208

sub33820-44131

main33820-44180iACN1#..STD200104

sub33820-44181

main33820-44190iACN1#..SU200104

sub33820-44191

33823ABRACKET, TRANSMISSION CONTROL CABLE

main33823-32050iSXN10..D4199807-200104

3513

45891ABRACKET, TURN SIGNAL

main45891-44020iACN1#,SXN1#199807

4601

9015940259

main90159-40259

9017908061

main90179-08061

9046400774

main90464-00774

9046400804

main90464-00804

9046812023

main90468-12023

9094901B67

main90949-01B67

9161160816

main91611-60816

91621J0612

main91621-J0612

9165160618

main91651-60618

9165160645

main91651-60645

9165260630

main91652-60630

9338115014

main93381-15014

9413060600

main94130-60600

9418560600

main94185-60600

9461310601

main94613-10601

30 parts on this diagram · 3 diagrams in section
