STANDARD TOOL

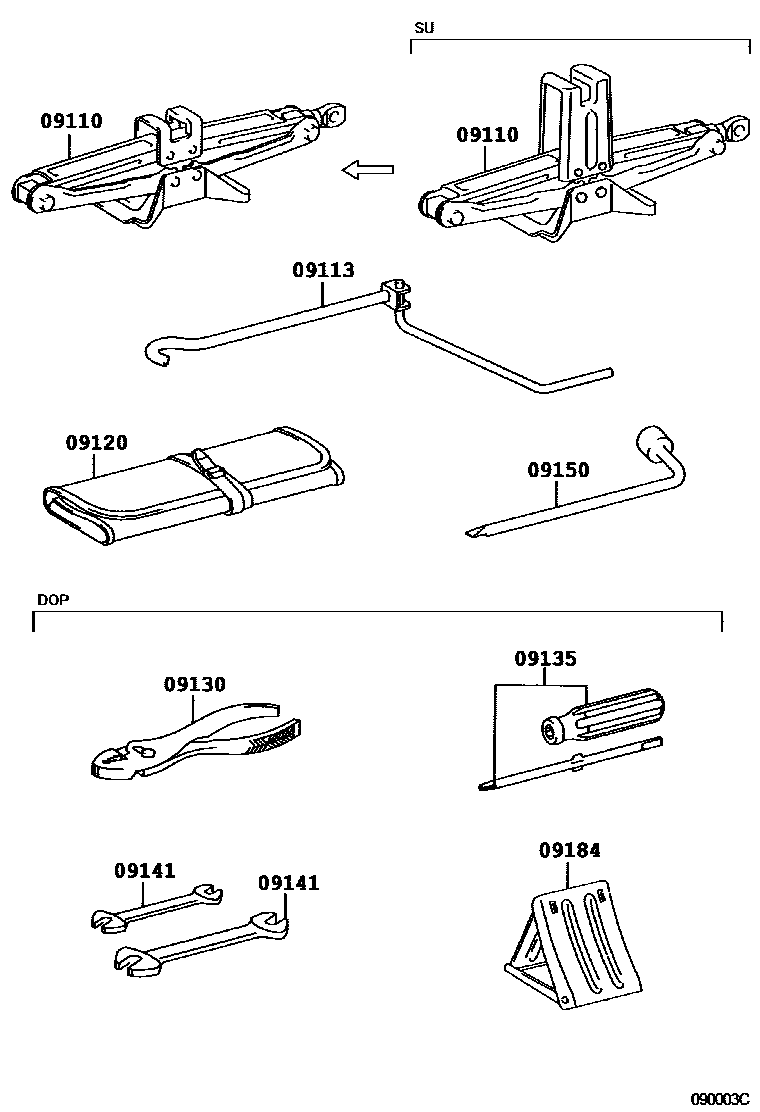

Parts diagram

09110JACK ASSY

main09111-44010i199807

main09111-44020i199906

09113HANDLE, JACK

main09113-44010i199807-200307

09120BAG, TOOL

main09120-16030i199807-200307

09130PLIERS

main99913-11500i199807

09135DRIVER, SCREW

main99915-10700i199807

09141SPANNER

main99914-10810i199807

main99914-11214i199807

09150WRENCH, HUB NUT BOX

main09150-40010i199807

09184STOPPER, WHEEL

main09184-00010i199807

8 parts on this diagram · 1 diagram in section
