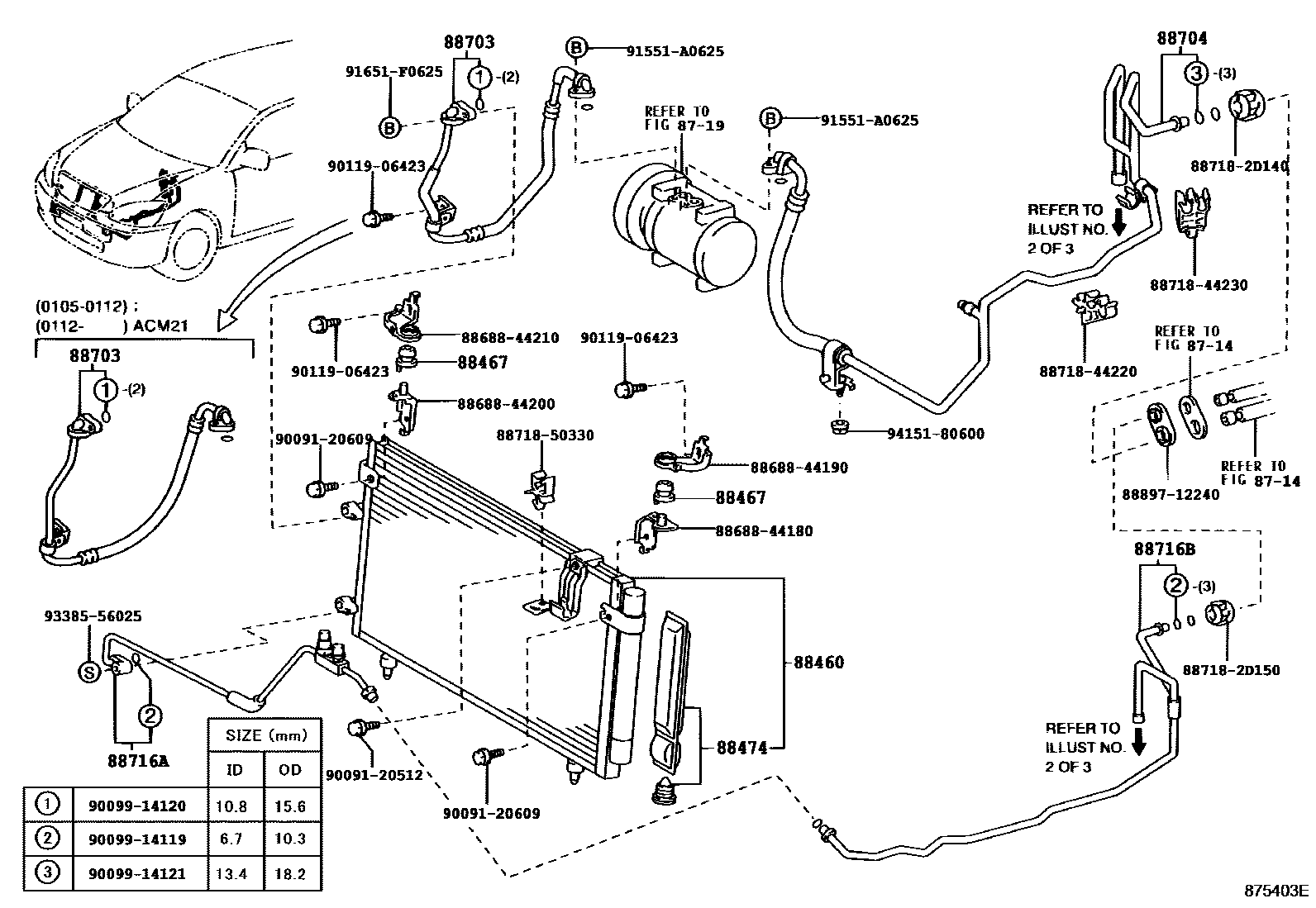

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1���� 0002 1���� 0003 1�� 0004 1��

8714

8719

88460CONDENSER ASSY, COOLER

main88460-44430iACM2#200105-200310

main88460-44510iACM2#..06S200310-200706

88467CUSHION, COOLER CONDENSER, NO.1

main88467-28050iACM2#200105-200706

88474DRYER, COOLER

main88474-17010iACM2#..06S200310-200706

main88474-47010iACM2#200105-200310

88703HOSE SUB-ASSY, DISCHARGE

main88703-44270iACM2#200105-200310

main88703-44360iACM26200112-200310

main88703-44390iACM2#..06S200310-200706

88704HOSE SUB-ASSY, SUCTION

main88704-44261iACM2#200105-200310

main88704-44440iACM2#..06S200310-200706

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-44490iACM2#200105-200310

main88710-44700iACM2#..06S200310-200706

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-44511iACM2#200105-200310

main88716-44720iACM2#..07S200310-200706

8868844180BRACKET, COOLER DIAPHRAGM

main88688-44180

8868844190BRACKET, COOLER DIAPHRAGM

main88688-44190

8868844200BRACKET, COOLER DIAPHRAGM

main88688-44200

8868844210BRACKET, COOLER DIAPHRAGM

main88688-44210

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871844220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-44220

8871844230PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-44230

8871850330PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50330

8889712240VALVE, COOLER MAGNET

main88897-12240

9009120512

main90091-20512

9009120609

main90091-20609

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906423

main90119-06423

91551A0625

main91551-A0625

91651F0625

main91651-F0625

9338556025

main93385-56025

9415180600

main94151-80600

29 parts on this diagram · 4 diagrams in section
