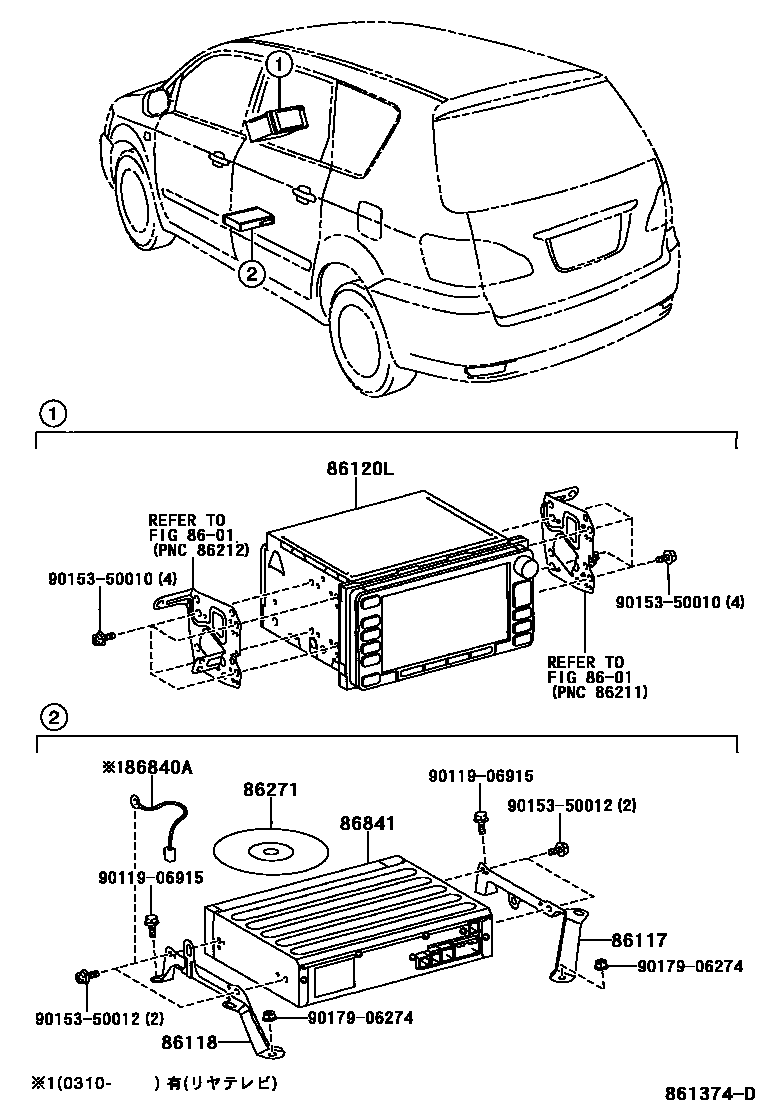

NAVIGATION & FRONT MONITOR DISPLAY

8601

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-44110iACM2#200105-200706

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-44010iACM2#200105-200706

86120LRECEIVER ASSY, NAVIGATION

main86120-44070iACM2#200105-200302

sub86120-44071

main86120-44071iACM2#200302-200310

main86120-44130iACM2#200206-200302

sub86120-44131

main86120-44131iACM2#200302-200310

main86120-44150iACM2#200310-200508

main86120-44151iACM2#..06S200508-200706

main86120-44160iACM2#..240S,240U200310-200508

main86120-44161iACM2#..06S200508-200706

86271DISC, DISC PLAYER

main86271-44020iACM2#200105-200310

sub08664-00436

main86271-48130iACM2#200804-200809

sub08664-00Q16

main86271-48131iACM2#200809-200904

sub08664-00R16

main86271-48132iACM2#200905-200909

sub08664-00S16

main86271-48133iACM2#200910-200912

sub08664-00V16

main86271-52041iACM2#200310-200404

sub08664-00E76

main86271-52042iACM2#200404-200410

sub08664-00F24

main86271-52043iACM2#200410-200508

sub08664-00G16

main86271-52044iACM2#200508-200509

sub86271-52045

main86271-52045iACM2#200510-200604

sub08664-00J16

main86271-52046iACM2#200604-200609

sub08664-00K16

main86271-52047iACM2#200609-200704

sub08664-00L16

main86271-52048iACM2#200704-200707

sub08664-00M16

main86271-52049iACM2#200708-200803

sub08664-00N16

86840ACABLE, BOND

main90980-07239iACM2#..07S..(240S,240U)200310-200706

86841COMPUTER, NAVIGATION

main86841-44010iACM2#200105-200310

main86841-44020iACM2#200206-200310

sub86841-44010

main86841-52020iACM2#200310-200912

9011906915

main90119-06915

9015350010

main90153-50010

9015350012

main90153-50012

9017906274

main90179-06274

11 parts on this diagram · 1 diagram in section
