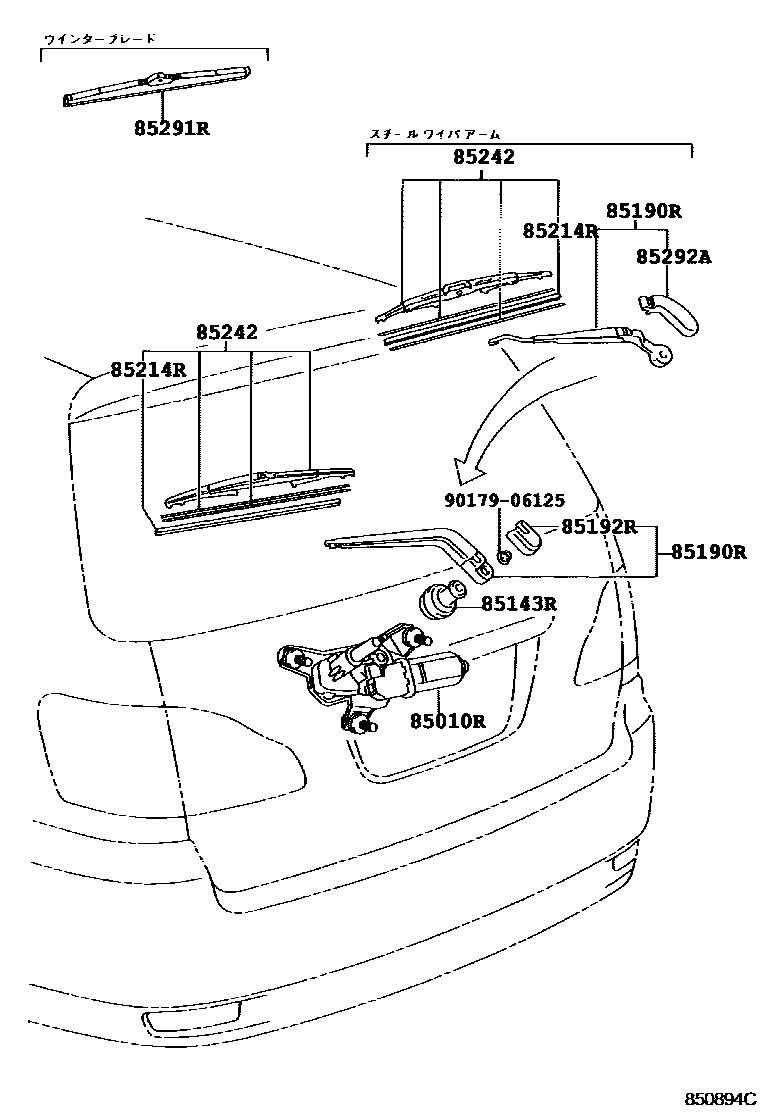

REAR WIPER

85010RMOTOR & LINK ASSY, RR WIPER

main85020-44020iACM2#200105-200706

85143RGROMMET, REAR WIPER MOTOR

main85143-60110iACM2#200105-200706

85190RARM ASSY, REAR WIPER

main85241-44020iACM2#..06S200202-200706

main85241-63010iACM2#..06S200105-200706

85192RCOVER, REAR WIPER ARM

main85292-28030iACM2#200105-200912

85214RRUBBER, REAR WIPER

main85214-10100iACM2#200105-200706

main85214-30280iACM2#..06S200202-200706

85242BLADE, RR WIPER

main85242-28060iACM2#200105-200706

main85242-30040iACM2#200202-200706

85291RBLADE,REAR WIPER, WINTER

main85291-28120iACM2#..07S200310-200706

main85291-44100iACM2#..07S200105-200706

main85291-60030iACM2#200202-200310

sub85291-28120

85292ACAP, REAR WIPER ARM HEAD

main85292-44020iACM2#200202-200912

9017906125

main90179-06125

9 parts on this diagram · 1 diagram in section
