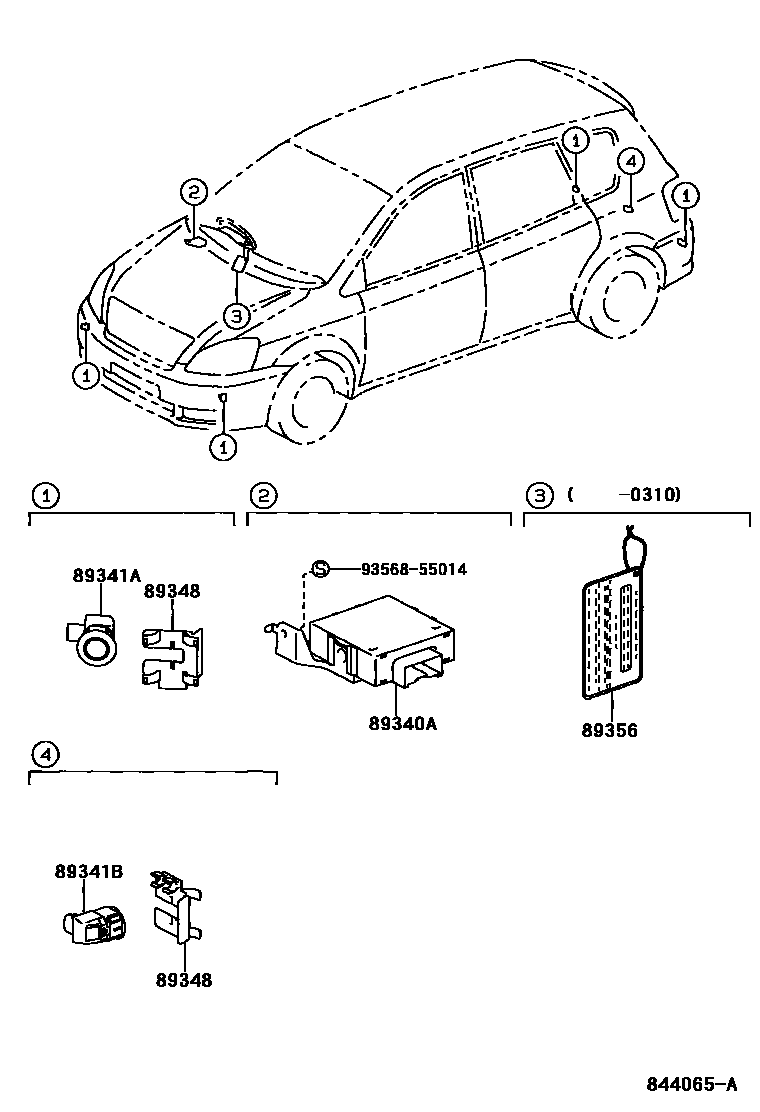

CLEARANCE & BACK SONAR

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-44040iACM2#..240I,240S,240U200105-200310

main89340-44050iACM2#..07S200310-200706

main89340-44060iACM2#..07S200310-200706

89341ASENSOR, ULTRASONIC, NO.1

main89341-44130iACM2#..240I,240S,240U200105-200706

89341BSENSOR, ULTRASONIC, NO.2

main89341-44080iACM2#..07S200105-200706

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-44010iACM2#..240I,240S,240U200105-200310

main89348-44010iACM2#..06S200310-200706

89356LABEL, CLEARANCE WARNING INFORMATION

main89356-44010iACM2#..240I,240S,240U200105-200310

9356855014

main93568-55014

6 parts on this diagram · 1 diagram in section
