ABS & VSC

0001 1 0002 1

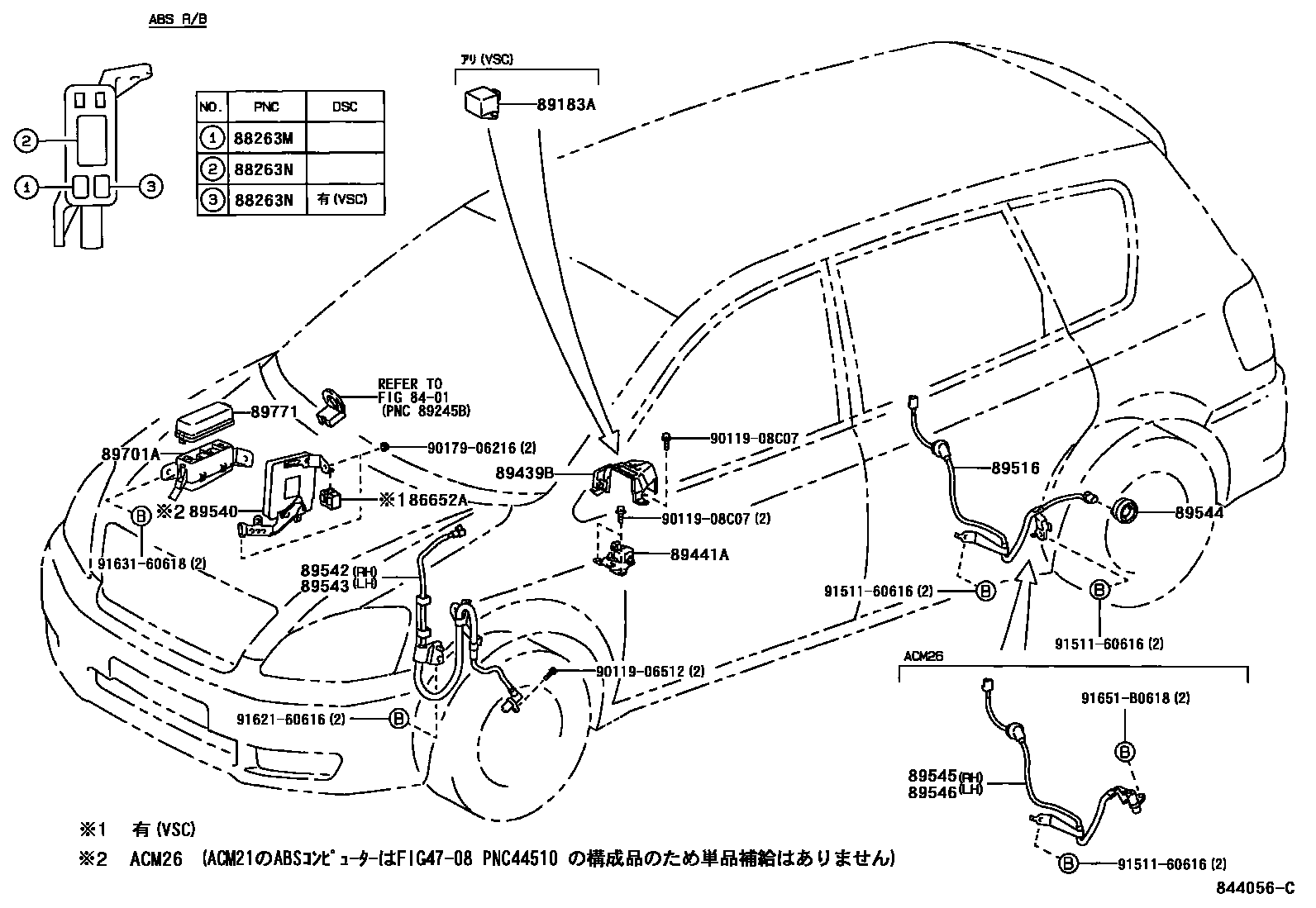

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-51010iACM26..06S200105-200706

88263MRELAY, ABS SOLENOID

main88263-32070iACM26200105-200706

88263NRELAY, ABS MOTOR

main88263-24020iACM26..07S200310-200706

main88263-30150iACM26200105-200310

main88263-32070iACM26..06S200105-200706

89183ASENSOR, YAWRATE

main89183-22020iACM26..07S200105-200706

89439BBRACKET, SENSOR

main89439-44010iACM26200105-200310

sub89439-44020

main89439-44020iACM26..06S200310-200706

89441ASENSOR, DECELERATION

main89440-44010iACM26200105-200706

89516WIRE, SKID CONTROL SENSOR

main89516-44060iACM21200105-200706

main89516-44070iACM21..06S200105-200706

89540COMPUTER ASSY, SKID CONTROL

main89540-44120iACM26200105-200310

main89540-44130iACM26200105-200110

main89540-44160iACM26200110-200310

main89540-44200iACM26..06S200310-200706

main89540-44210iACM26..06S200310-200706

89542SENSOR, SPEED, FRONT RH

main89542-44030iACM2#200105-200706

89543SENSOR, SPEED, FRONT LH

main89543-44030iACM2#200105-200706

89544SENSOR, SKID CONTROL

main89544-20010iACM21200310-200912

main89544-47010iACM21200105-200310

sub89544-20010

89545SENSOR, SPEED, REAR RH

main89545-44030iACM26200105-200706

89546SENSOR, SPEED, REAR LH

main89546-44040iACM26200105-200706

89701ABLOCK SUB-ASSY, ABS RELAY

main82743-44070iACM26200105-200706

89771COVER, ABS RELAY BLOCK, UPPER

main82662-44120iACM26200105-200706

9011906512

main90119-06512

9011908C07

main90119-08C07

9017906216

main90179-06216

9151160616

main91511-60616

9162160616

main91621-60616

9163160618

main91631-60618

91651B0618

main91651-B0618

23 parts on this diagram · 2 diagrams in section
