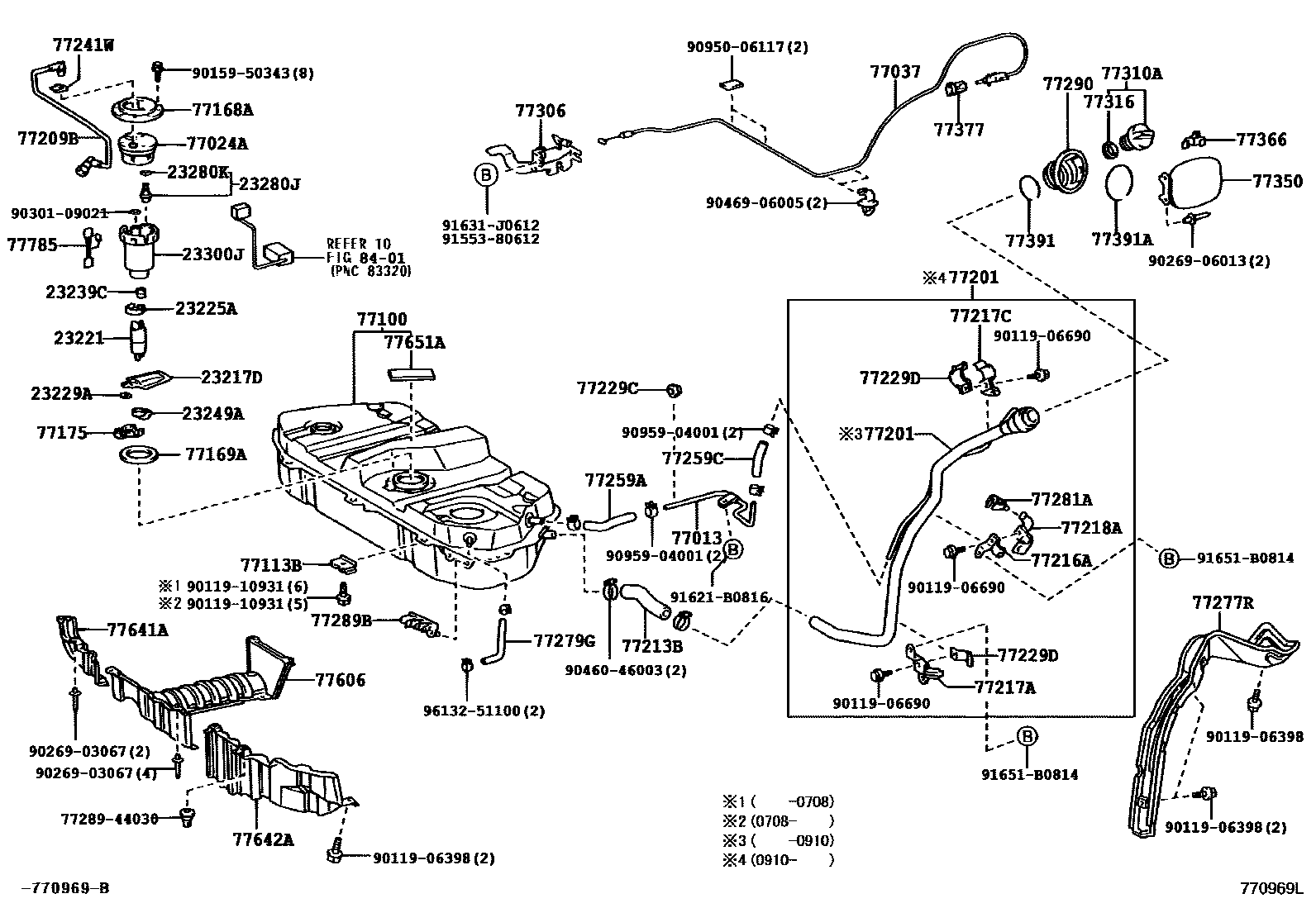

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23225ASPACER, FUEL PUMP
23229ACLIP(FOR FUEL PUMP FILTER)
23239CSEAL, FUEL PUMP FILTER
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
77024APLATE SUB-ASSY, FUEL SUCTION
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100TANK ASSY, FUEL
sub77001-44031
sub77001-44032
sub77001-28H00
sub77001-44034
sub77001-44041
sub77001-44042
sub77001-44043
sub77001-44044
77113BPLATE, FUEL TANK SIDE
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77229CCLAMP, BREATHER TUBE
77229DSUPPORT, FUEL TANK FILLER PIPE, NO.4
77241WCLIP, TUBE JOINT
77259AHOSE, FUEL(FOR BREATHER TUBE)
77259CHOSE, FUEL
77277RPROTECTOR, FUEL TANK FILLER PIPE
77279GHOSE, FUEL, NO.2
77281ACLAMP, FUEL FILLER PIPE
77289BCLAMP, FUEL TUBE, NO.3
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77651ACUSHION, FUEL TANK, NO.1
77785HARNESS, FUEL PUMP
8401
7728944030HOLDER, FUEL TANK PIPE SETTING
main77289-44030
9011906398
main90119-06398
9011906690
main90119-06690
9011910931
main90119-10931
9015950343
main90159-50343
9026903067
main90269-03067
9026906013
main90269-06013
9030109021
main90301-09021
9046046003
main90460-46003
9046906005
main90469-06005
9095006117
main90950-06117
9095904001
main90959-04001
9155380612
main91553-80612
91621B0816
main91621-B0816
91631J0612
main91631-J0612
91651B0814
main91651-B0814
9613251100
main96132-51100
65 parts on this diagram · 3 diagrams in section
