MUDGUARD & SPOILER

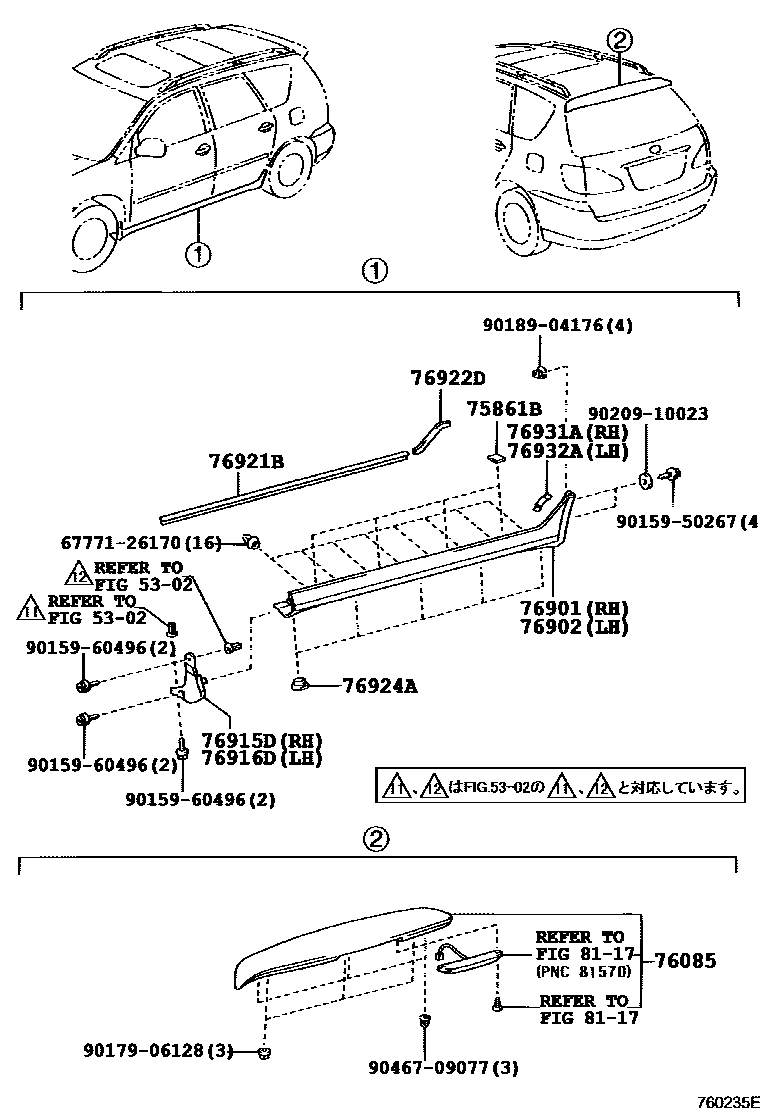

Parts diagram
5302
75861BPAD, ROCKER PANEL MOULDING
main75861-44010i200105-200310
76085SPOILER SUB-ASSY, REAR
main76085-44060-A0i200105-200508
SUPER WHITE 2,040
sub76085-44902
main76085-44060-A1i200105-200508
WHITE PM.,042
sub76085-44902
main76085-44060-B0i200105-200310
SILVER ME.,1C0
sub76085-44902
main76085-44060-B1i200105-200310
DARK GRAY M.M.,1E2
sub76085-44902
main76085-44060-B2i200310-200508
SILVER ME.,1D4
sub76085-44902
main76085-44060-C0i200201-200206
sub76085-44902
main76085-44060-C0i200304-200309
sub76085-44902
main76085-44060-C0i200310-200508
BLACK,202
sub76085-44902
main76085-44060-C0i200206-200303
sub76085-44902
main76085-44060-D0i200105-200310
RED MC.,3M8
sub76085-44902
main76085-44060-D1i200105-200310
LT.ROSE M.M.,3Q1
sub76085-44902
main76085-44060-D2i200105-200310
sub76085-44902
main76085-44060-D2i200304-200309
sub76085-44902
main76085-44060-D3i200310-200508
SUPER RED 5,3P0
sub76085-44902
main76085-44060-D4i200310-200508
DK. RED M.M.,3Q3
sub76085-44902
main76085-44060-F0i200105-200310
CHAMPAGNE M.M.,587
sub76085-44902
main76085-44060-F1i200310-200508
YELLOW M.M.,580
sub76085-44902
main76085-44060-H0i200105-200310
AQUA ME.,771
sub76085-44902
main76085-44060-J0i200105-200310
DK.BLUE M.M.,8P4
sub76085-44902
main76085-44060-J1i200310-200508
LT.PURPLISH BLUE M.M.,8K2
sub76085-44902
main76085-44060-J2i200310-200508
BLUE MC.,8M6
sub76085-44902
main76085-44080-A0i200508-200912
SUPER WHITE 2,040
sub76085-44905
main76085-44080-A1i200508-200912
WHITE PM.,042
sub76085-44905
main76085-44080-B0i200508-200912
SILVER ME.,1D4
sub76085-44905
main76085-44080-C0i200508-200912
BLACK,202
sub76085-44905
main76085-44080-D0i200508-200706
SUPER RED 5,3P0
sub76085-44905
main76085-44080-D1i200508-200912
DK. RED M.M.,3Q3
sub76085-44905
main76085-44080-E0i200706-200912
BRONZE M.M.,4S2
sub76085-44905
main76085-44080-F0i200508-200706
YELLOW M.M.,580
sub76085-44905
main76085-44080-J0i200508-200912
LT.PURPLISH BLUE M.M.,8K2
sub76085-44905
main76085-44080-J1i200508-200912
BLUE MC.,8M6
sub76085-44905
76901MUDGUARD SUB-ASSY, SIDE, RH
main76911-44070-A0i200105-200310
SUPER WHITE 2,040
main76911-44070-B0i200105-200310
SILVER ME.,1C0
main76911-44070-B1i200105-200310
DARK GRAY M.M.,1E2
main76911-44070-C0i200304-200309
main76911-44070-C0i200206-200303
main76911-44070-D0i200304-200309
main76911-44070-D0i200105-200310
main76911-44070-J0i200105-200310
DK.BLUE M.M.,8P4
main76911-44080-A0i200310
main76911-44080-A0i200310-200912
WHITE PM.,042
main76911-44080-B0i200310-200912
main76911-44080-C0i200310-200912
main76911-44080-D0i200310-200912
main76911-44080-F0i200310-200912
main76911-44080-J0i200310-200912
main76911-44080-J1i200310-200912
main76911-44090-A0i200310-200912
sub76911-44907
main76911-44090-A1i200706-200912
sub76911-44907
main76911-44090-A1i200412-200507
sub76911-44907
main76911-44090-B0i200310-200912
sub76911-44907
main76911-44090-C0i200310-200912
sub76911-44907
main76911-44090-D0i200310-200912
sub76911-44907
main76911-44090-D1i200412-200507
sub76911-44907
main76911-44090-D1i200706-200912
sub76911-44907
main76911-44090-E0i200706-200912
BRONZE M.M.,4S2
sub76911-44907
main76911-44090-F0i200310-200912
sub76911-44907
76902MUDGUARD SUB-ASSY, SIDE, LH
main76912-44070-A0i200105-200310
SUPER WHITE 2,040
main76912-44070-B0i200105-200310
SILVER ME.,1C0
main76912-44070-B1i200105-200310
DARK GRAY M.M.,1E2
main76912-44070-C0i200206-200303
main76912-44070-C0i200304-200309
main76912-44070-D0i200105-200310
main76912-44070-D0i200304-200309
main76912-44070-J0i200105-200310
DK.BLUE M.M.,8P4
main76912-44080-A0i200310
sub76912-44907
main76912-44080-A0i200310-200912
WHITE PM.,042
sub76912-44907
main76912-44080-B0i200310-200912
sub76912-44907
main76912-44080-C0i200310-200912
sub76912-44907
main76912-44080-D0i200310-200912
sub76912-44907
main76912-44080-F0i200310-200912
sub76912-44907
main76912-44080-J0i200310-200912
sub76912-44907
main76912-44080-J1i200310-200912
sub76912-44907
main76912-44090-A0i200310-200912
sub76912-44908
main76912-44090-A1i200706-200912
sub76912-44908
main76912-44090-A1i200412-200507
sub76912-44908
main76912-44090-B0i200310-200912
sub76912-44908
main76912-44090-C0i200310-200912
sub76912-44908
main76912-44090-D0i200310-200912
sub76912-44908
main76912-44090-D1i200412-200507
sub76912-44908
main76912-44090-D1i200706-200912
sub76912-44908
main76912-44090-E0i200706-200912
BRONZE M.M.,4S2
sub76912-44908
main76912-44090-F0i200310-200912
sub76912-44908
76915DMUDGUARD, SIDE, FRONT RH
main76915-44060i200105-200310
main76915-44070i200310
main76915-44080i200310
76916DMUDGUARD, SIDE, FRONT LH
main76916-44060i200105-200310
main76916-44070i200310
main76916-44080i200310
76921BPROTECTOR, SIDE MUDGUARD, NO.1
main76921-44060-B0i200310-200912
LT. GRAY,040
main76921-44060-B0i200310-200912
LT. GRAY,042
main76921-44060-B1i200310-200912
MEDIUM GRAY,1D4
main76921-44060-C0i200310
BLACK,202 ,3Q3 ,4S2 ,580 ,8K2 ,8M6
main76921-44060-C0i200310
BLACK,202 ,3P0 ,3Q3 ,4S2 ,580
main76921-44060-C0i200310-200706
BLACK,202 ,3P0 ,580
main76921-44080-B2i200105-200310
SUPER WHITE 2,040 ,1C0
sub76921-44060
main76921-44080-C0i200105-200310
sub76921-44060
main76921-44080-C0i200105-200310
DARK GRAY M.M.,1E2 ,8P4
sub76921-44060
main76921-44080-C0i200206-200303
sub76921-44060
main76921-44080-C0i200304-200309
sub76921-44060
76922DPROTECTOR, SIDE MUDGUARD, NO.2
main76922-44070-B0i200105-200310
LT. GRAY,040 ,1C0
main76922-44070-C0i200105-200310
BLACK,1E2 ,8P4
main76922-44070-C0i200105-200310
main76922-44070-C0i200206-200303
main76922-44070-C0i200304-200309
76924ARETAINER, SIDE MUDGUARD, NO.2
main76924-52021i200105-200310
76931ABRACKET, SIDE MUDGUARD, NO.1 RH
main76931-44040i200105-200310
76932ABRACKET, SIDE MUDGUARD, NO.1 LH
main76932-44020i200105-200310
8117
6777126170WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-26170
9015950267
main90159-50267
9015960496
main90159-60496
9017906128
main90179-06128
9018904176
main90189-04176
9020910023
main90209-10023
9046709077
main90467-09077

20 parts on this diagram · 2 diagrams in section
