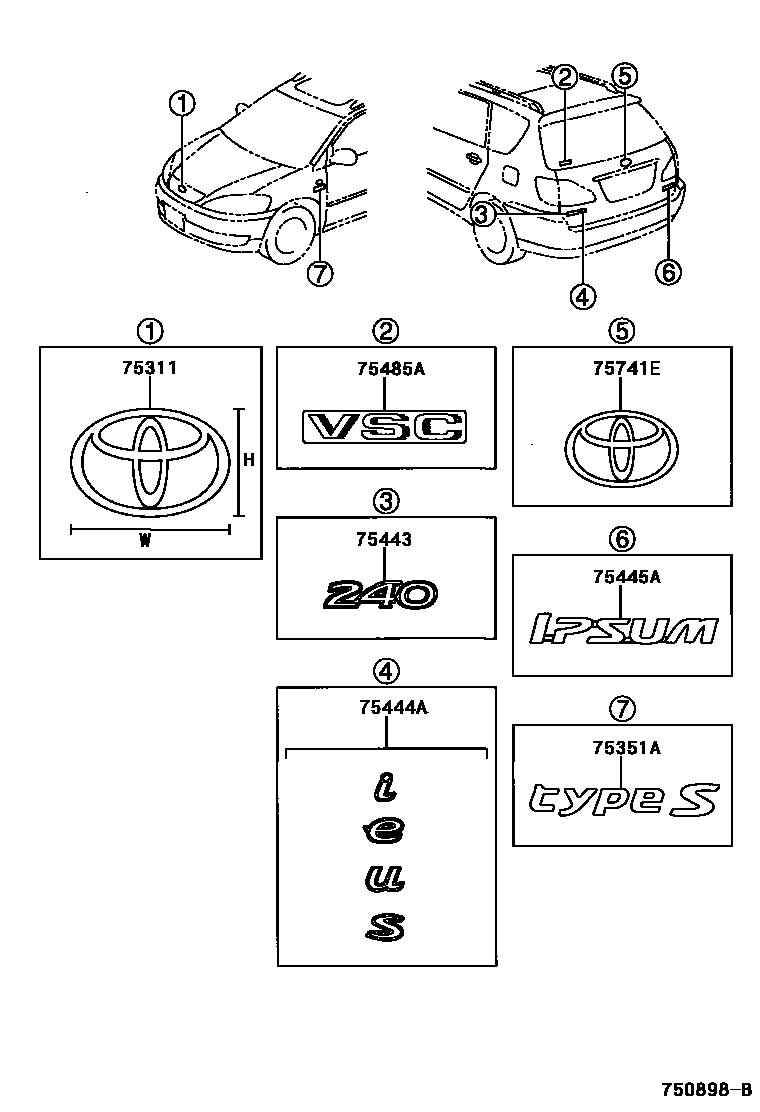

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main90975-02015iACM2#..240I,240S200310-200912

W=130,H=88.8

main90975-02046iACM2#..240S200105-200310

main90975-02048iACM2#..240I,240U200310-200912

W=140,H=95.7

75351AEMBLEM, FRONT FENDER

main75351-44020iACM2#..240I200206-200303

75443PLATE, BACK DOOR NAME, NO.3

main75443-44030iACM2#..07S200105-200706

75444APLATE, BACK DOOR NAME, NO.4

main75444-44030iACM2#..240E200105-200310

main75444-44040iACM2#..240I200105-200310

main75444-44050iACM2#..240U200105-200706

main75444-44060iACM2#..06S..240S200105-200706

75445APLATE, BACK DOOR NAME, NO.5

main75445-44070iACM2#200105-200706

75485APLATE, BACK WINDOW NAME

main75485-44040iACM26200105-200706

75741EEMBLEM, SYMBOL

main90975-02038iACM2#200105-200706

7 parts on this diagram · 1 diagram in section
