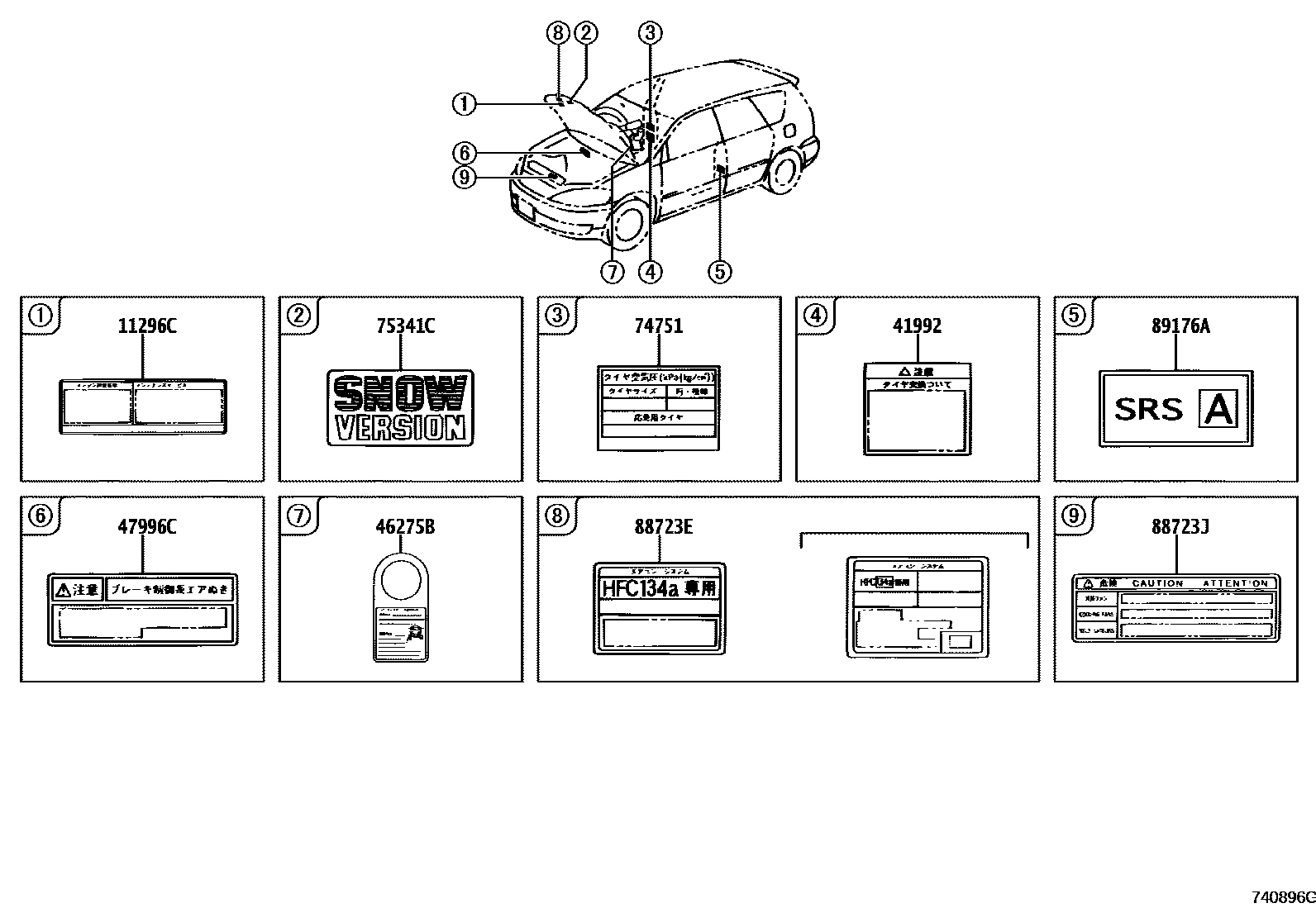

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1 0003 1

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-28010i2AZFE..ACM2#200105-200205

main11296-28011i2AZFE..ACM2#200205-200302

sub11296-28012

main11296-28012i2AZFE..ACM2#..06S200302-200706

41992LABEL, DIFFERENTIAL NOTICE

main41992-33010iACM26200105-200706

46275BLABEL, PARKING BRAKE RELEASE INFORMATION, NO.2

main46275-47010iACM2#200105-200905

47996CLABEL, BRAKE BLEED CAUTION

main47996-21010iACM26..06S200105-200706

74751LABEL, TIRE PRESSURE INFORMATION

main42661-44110iACM2#..06S..240U200105-200706

main42661-44190iACM2#..06S..240S200310-200706

75341CPLATE, HOOD NAME

main75341-20060iACM2#200105-200310

88723ELABEL, COOLER SERVICE CAUTION

main88723-42050iACM2#200105-200202

sub88733-51010

main88733-30050iACM2#200202-200912

sub88733-37050

88723JLABEL, COOLER SERVICE CAUTION, NO.2

main88723-20081iACM2#200310-200912

sub16793-31070

89176ALABEL, AIRBAG DEPLOYMENT INFORMATION

main89176-32010iACM2#200105-200706

9 parts on this diagram · 3 diagrams in section
