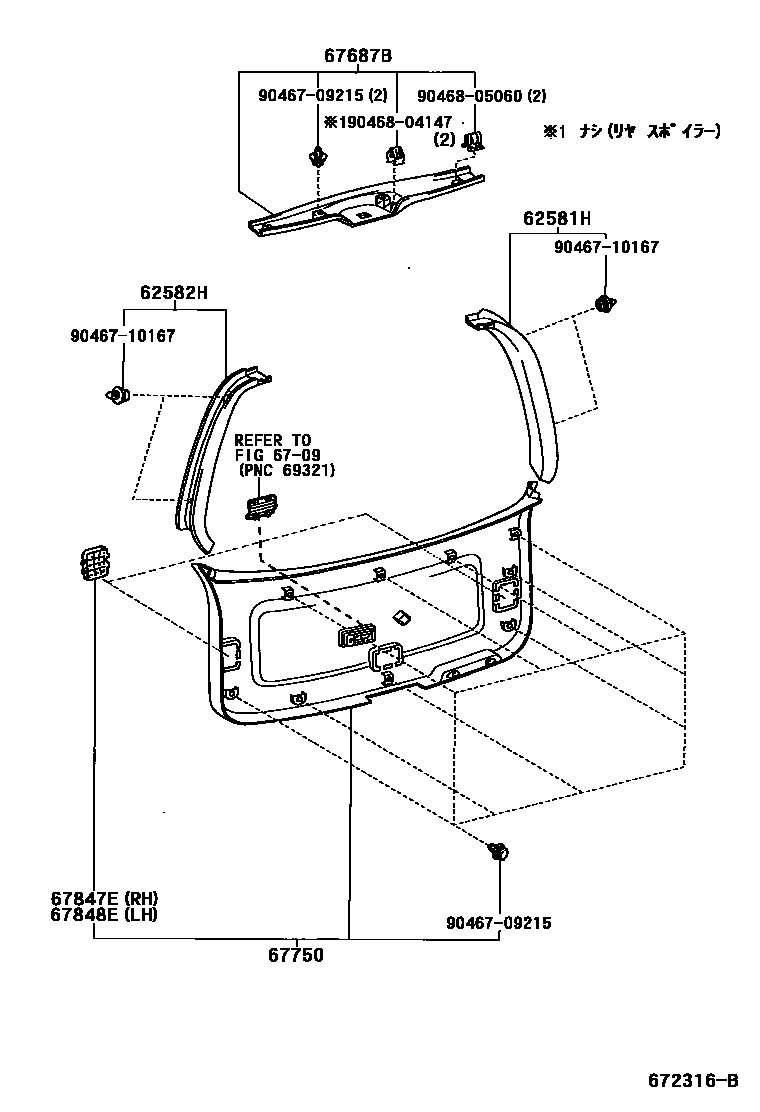

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1

62581HGARNISH, REAR WINDOW SIDE, RH

main62581-44040-A0iACM2#..240E,240I,240U200105-200912

IVORY,TRIM0#

sub62581-44040¥2,840

main62581-44040-B0iACM2#200105-200310

LT.GRAY,TRIM1#

sub62581-44040¥2,840

main62581-44040-B1iACM2#..240S200310-200912

LT.GRAY,TRIM1#

sub62581-44040¥2,840

62582HGARNISH, REAR WINDOW SIDE, LH

main62582-44040-A0iACM2#..240E,240I,240U200105-200912

IVORY,TRIM0#

sub62582-44040¥2,840

main62582-44040-B0iACM2#200105-200310

LT.GRAY,TRIM1#

sub62582-44040¥2,840

main62582-44040-B1iACM2#..240S200310-200912

LT.GRAY,TRIM1#

sub62582-44040¥2,840

6709

67687BGARNISH, BACK WINDOW

main67687-44040-A0iACM2#..240E,240I,240U200105-200310

IVORY,TRIM0#

sub67687-44040¥5,100

main67687-44040-B0iACM2#..240E,240I,240U200105-200310

LT.GRAY,TRIM1#

sub67687-44040¥5,100

main67687-44050-A0iACM2#..240I,240U200105-200912

sub67687-44050¥5,100

main67687-44050-B0iACM2#200105-200310

sub67687-44050¥5,100

main67687-44050-B1iACM2#..240S200310-200912

sub67687-44050¥5,100

67750BOARD ASSY, BACK DOOR TRIM

main67750-44060-A0iACM2#..240I,240U200105-200912

IVORY,TRIM0#

main67750-44060-B0iACM2#200105-200310

MD.GRAY,TRIM1#

main67750-44060-B1iACM2#..240S200310-200912

DK.GRAY,TRIM1#

67847ECOVER, BACK DOOR SERVICE HOLE, RH

main67847-44030-A0iACM2#..240I,240U200105-200912

IVORY,TRIM0#

main67847-44030-B0iACM2#200105-200310

MD.GRAY,TRIM1#

main67847-44030-B1iACM2#..240S200310-200912

DK.GRAY,TRIM1#

67848ECOVER, BACK DOOR SERVICE HOLE, LH

main67848-44030-A0iACM2#..240E,240I,240U200105-200912

IVORY,TRIM0#

main67848-44030-B0iACM2#200105-200310

MD.GRAY,TRIM1#

main67848-44030-B1iACM2#..240S200310-200912

DK.GRAY,TRIM1#

9046709215

main90467-09215¥110

9046710167

main90467-10167¥90

9046804147

main90468-04147¥70

9046805060

main90468-05060¥90

11 parts on this diagram · 3 diagrams in section
