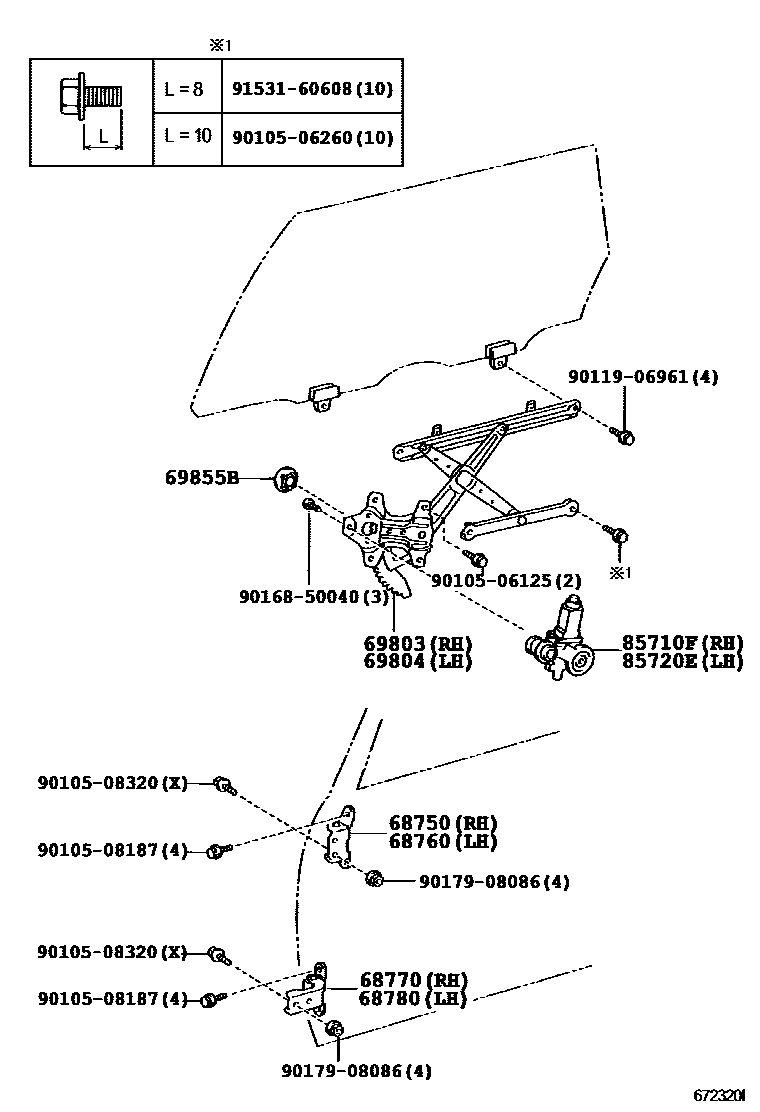

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-42010iACM2#200105-200912

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-42010iACM2#200105-200912

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52030iACM2#200105-200609

sub68770-52031

main68770-52031iACM2#200610-200912

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52030iACM2#200105-200609

sub68780-52031

main68780-52031iACM2#200610-200912

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-44020iACM2#200105-200706

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-44020iACM2#200105-200706

69855BCOVER, DOOR WINDOW REGULATOR GEAR

main69855-20010iACM2#200105-200706

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-44050iACM2#200105-200706

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-44050iACM2#200105-200706

9010506125

main90105-06125

9010506260

main90105-06260

9010508187

main90105-08187

9010508320

main90105-08320

9011906961

main90119-06961

9016850040

main90168-50040

9017908086

main90179-08086

9153160608

main91531-60608

17 parts on this diagram · 1 diagram in section
