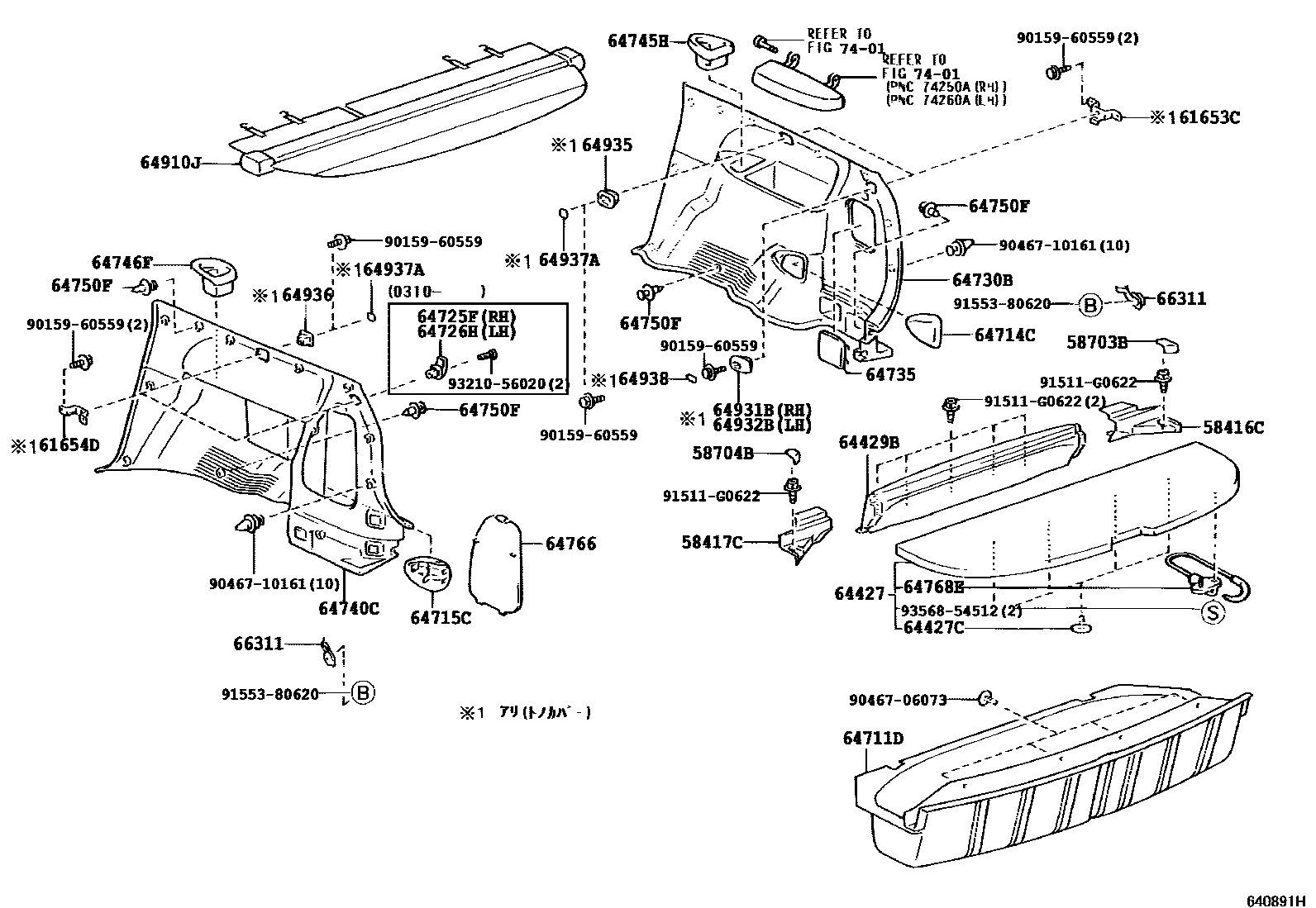

DECK BOARD & DECK TRIM COVER
58416CBRACKET, DECK BOARD, NO.1 RH
58417CBRACKET, DECK BOARD, NO.1 LH
58703BCOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704BCOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
61653CBRACKET, DECK SIDE TRIM, RH
61654DBRACKET, DECK SIDE TRIM, NO.2
64427LID, LUGGAGE ROOM BOX
64427CCLIP(FOR LUGGAGE ROOM BOX LID)
64429BBOX, LUGGAGE ROOM
64711DCARPET, LUGGAGE COMPARTMENT FLOOR
64714CCOVER, DECK SIDE TRIM, RH
64715CCOVER, DECK SIDE TRIM, LH
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64726HHOOK, DECK SIDE TRIM, NO.2
64730BPANEL ASSY, DECK TRIM SIDE, RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
IVORY,TRIM0#
MD.GRAY,TRIM1#
MD.GRAY,TRIM1#
IVORY,TRIM0#
DARK GRAY,TRIM1#
IVORY,TRIM0#
64735COVER, DECK TRIM SIDE SERVICE HOLE
64740CPANEL ASSY, DECK TRIM SIDE, LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
IVORY,TRIM0#
MD.GRAY,TRIM1#
MD.GRAY,TRIM1#
IVORY,TRIM0#
DARK GRAY,TRIM1#
IVORY,TRIM0#
64745HHOLDER, DECK SIDE TRIM CUP, RH
sub64745-44030
64746FHOLDER, DECK SIDE TRIM CUP, LH
sub64746-44030
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64766COVER SUB-ASSY, QUARTER TRIM JACK
64768ESTOPPER, QUARTER TRIM LID
64910JCOVER ASSY, TONNEAU
IVORY,TRIM0#
BLACK,TRIM1#
64931BHANGER, TONNEAU COVER, RH
64932BHANGER, TONNEAU COVER, LH
64935HOLDER, TONNEAU COVER, RH
sub64935-44050
64936HOLDER, TONNEAU COVER, LH
sub64936-44020
64937ACAP, TONNEAU COVER HOLDER, NO.1
sub64937-44010
64938HOOK, TONNEAU COVER, A
66311HOOK, ROPE
IVORY,TRIM0#
MD.GRAY,TRIM1#
DK.GRAY,TRIM1#
7401
9015960559
main90159-60559
9046706073
main90467-06073
9046710161
main90467-10161
91511G0622
main91511-G0622
9155380620
main91553-80620
9321056020
main93210-56020
9356854512
main93568-54512
38 parts on this diagram · 1 diagram in section
