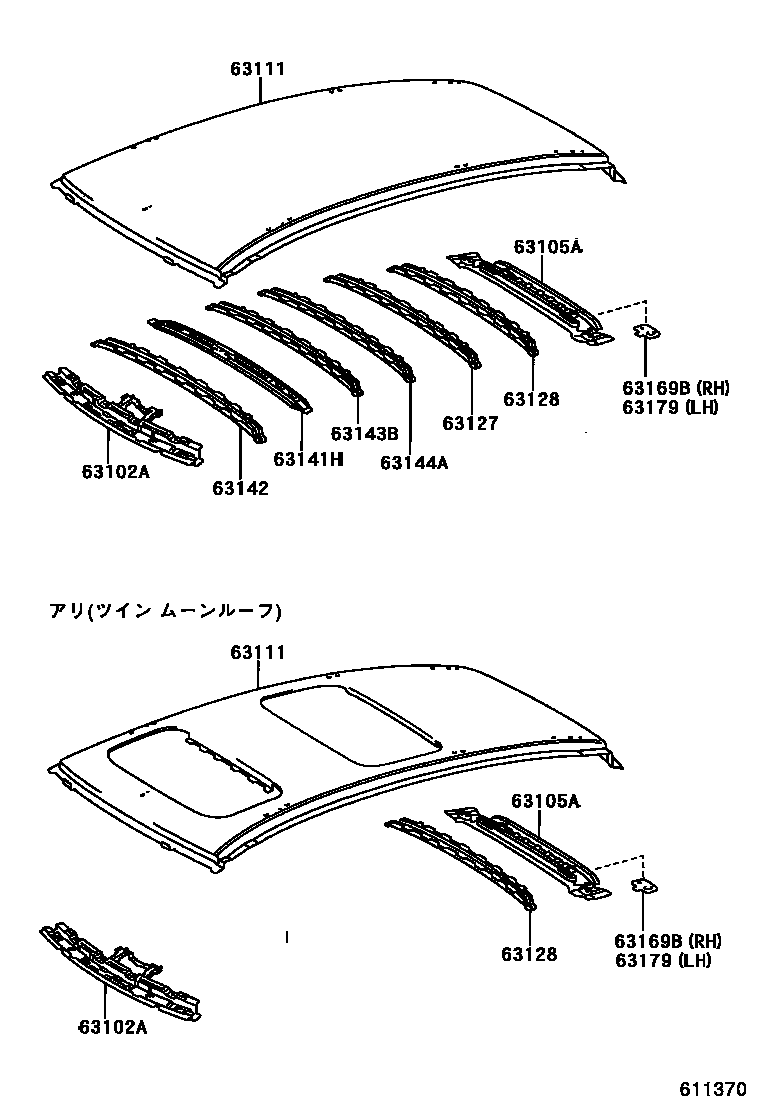

ROOF PANEL & BACK WINDOW GLASS

0001 1�-� ���� 0002 1�-� �-� 0003 1��� �-� �-� 0004 1��� �-� �-�

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-44040iACM2#..06S200105-200706

main63102-44050iACM2#200105-200706

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-44010iACM2#200105-200706

63111PANEL, ROOF

main63111-44110iACM2#..07S200105-200706

main63111-44130iACM2#200105-200706

main63111-44150iACM2#..06S200105-200706

main63111-44170iACM2#..06S200105-200706

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-44030iACM2#200105-200706

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-44020iACM2#200105-200706

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-44040iACM2#200105-200706

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-44040iACM2#200105-200706

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-44040iACM2#200105-200706

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-44040iACM2#200105-200706

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-44010iACM2#200105-200706

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-44010iACM2#200105-200706

11 parts on this diagram · 4 diagrams in section
