FLOOR SIDE MEMBER
51681BRACKET, FLEXIBLE HOSE
51682BBRACKET, FLEXIBLE HOSE, LH
51992AHANGER, EXHAUST PIPE SUPPORT
55137BRACE, DASH TO FRAME, RH
55138BRACE, DASH TO FRAME, LH
5701
57013AMEMBER SUB-ASSY, FLOOR, FRONT RH
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57041MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH
57042MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH
57101EMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57102CMEMBER SUB-ASSY, FRONT SIDE, INNER LH
57105FPLATE SUB-ASSY, FRONT SIDE MEMBER, OUTER RH
57106FPLATE SUB-ASSY, FRONT SIDE MEMBER, OUTER LH
57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH
57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH
57141ASUPPORT, FRONT BUMPER ARM, RH
57142ASUPPORT, FRONT BUMPER ARM, LH
57165BREINFORCEMENT, FRONT CROSSMEMBER, NO.2 RH
57166CREINFORCEMENT, FRONT CROSSMEMBER, NO.2 LH
57167FREINFORCEMENT, FRONT CROSSMEMBER SIDE, RH
57168FREINFORCEMENT, FRONT CROSSMEMBER SIDE, LH
57181CREINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 RH
57182CREINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH
57183AEXTENSION, FRONT CROSSMEMBER, RR RH
57184BEXTENSION, FRONT CROSSMEMBER, RR LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57245REINFORCEMENT, FRONT SIDE MEMBER, NO.9 RH
57246REINFORCEMENT, FRONT SIDE MEMBER, NO.9 LH
57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH
57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57423BREINFORCEMENT, FRONT FLOOR UNDER, INNER RH
57424BREINFORCEMENT, FRONT FLOOR UNDER, INNER LH
57431APATCH, STEP PANEL UNDER, RH
57432PATCH, STEP PANEL UNDER, LH
57433AREINFORCEMENT, STEP PANEL, LOWER RH
57434BREINFORCEMENT, STEP PANEL, LOWER LH
57451MEMBER, FRONT FLOOR CROSS
57453BMEMBER, FRONT FLOOR CROSS, NO.3
57455DGUSSET, FRONT FLOOR CROSSMEMBER, RH
57456CGUSSET, FRONT FLOOR CROSSMEMBER, LH
57459MEMBER, FRONT FLOOR CROSS, NO.2
57475PLATE, FRONT FLOOR CROSSMEMBER
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57609AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
57615AMEMBER, REAR FLOOR SIDE, REAR RH
sub57615-28070
57616AMEMBER, REAR FLOOR SIDE, REAR LH
sub57616-28060
57645CREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR NO.3 RH
57646BREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR NO.3 LH
57794BRACKET, REAR SUSPENSION ARM, REAR LH NO.1
57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH
57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH
58181DRETAINER, PARKING BRAKE
58182CBRACKET, PARKING BRAKE CABLE COVER
58339KBRACKET JACK UP
9011910821
main90119-10821

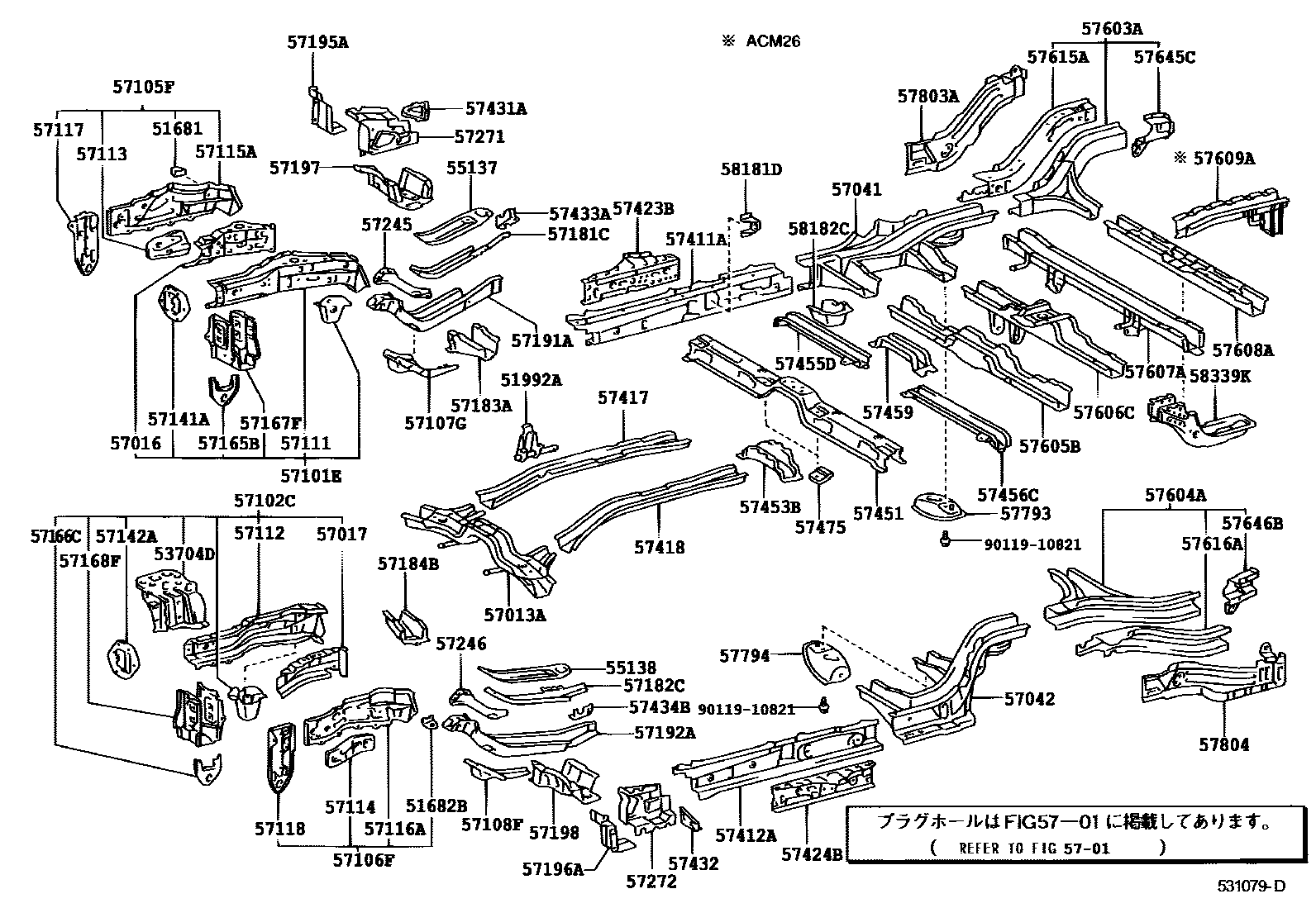

81 parts on this diagram · 1 diagram in section
