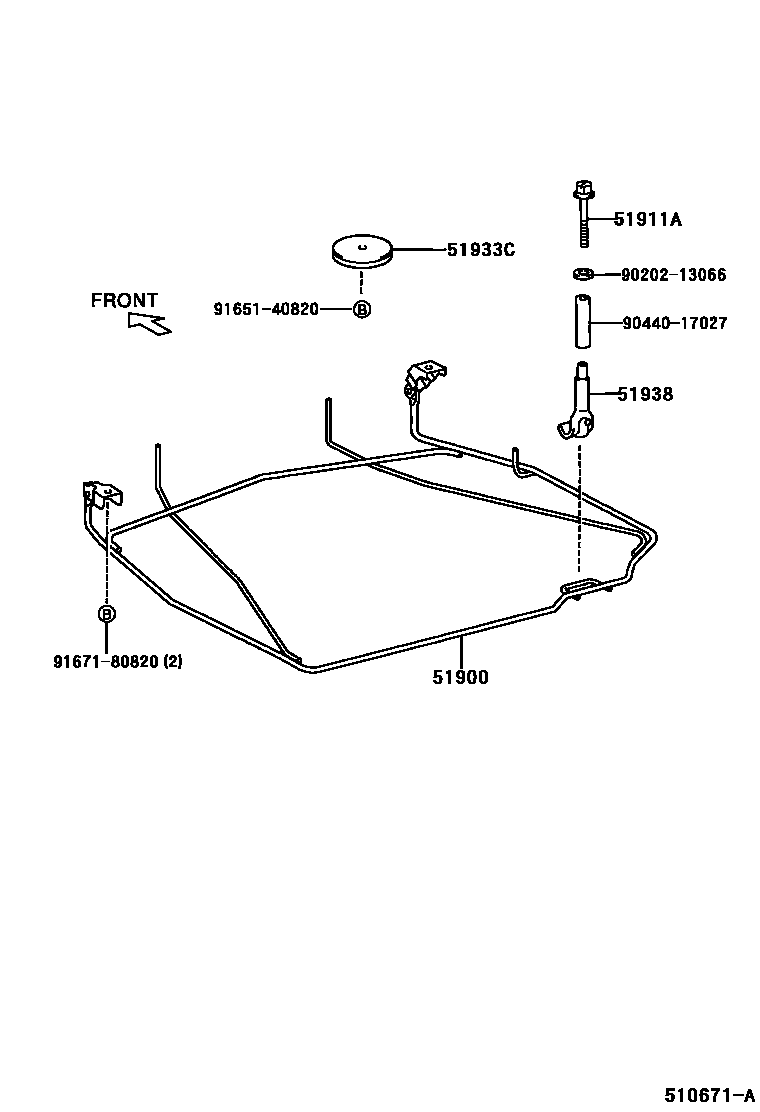

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51903-44060iACM2#¥8,500200105-200706

51911ABOLT, SPARE WHEEL

main51911-44030iACM2#¥760200105-200706

51933CSTOPPER, SPARE WHEEL

main51904-44020iACM2#¥1,350200105-200706

51938LOCK, SPARE WHEEL CARRIER

main51938-44010iACM2#¥570200105-200706

9020213066

main90202-13066¥140

9044017027

main90440-17027¥580

9165140820

main91651-40820¥90

9167180820

main91671-80820¥80

8 parts on this diagram · 1 diagram in section
