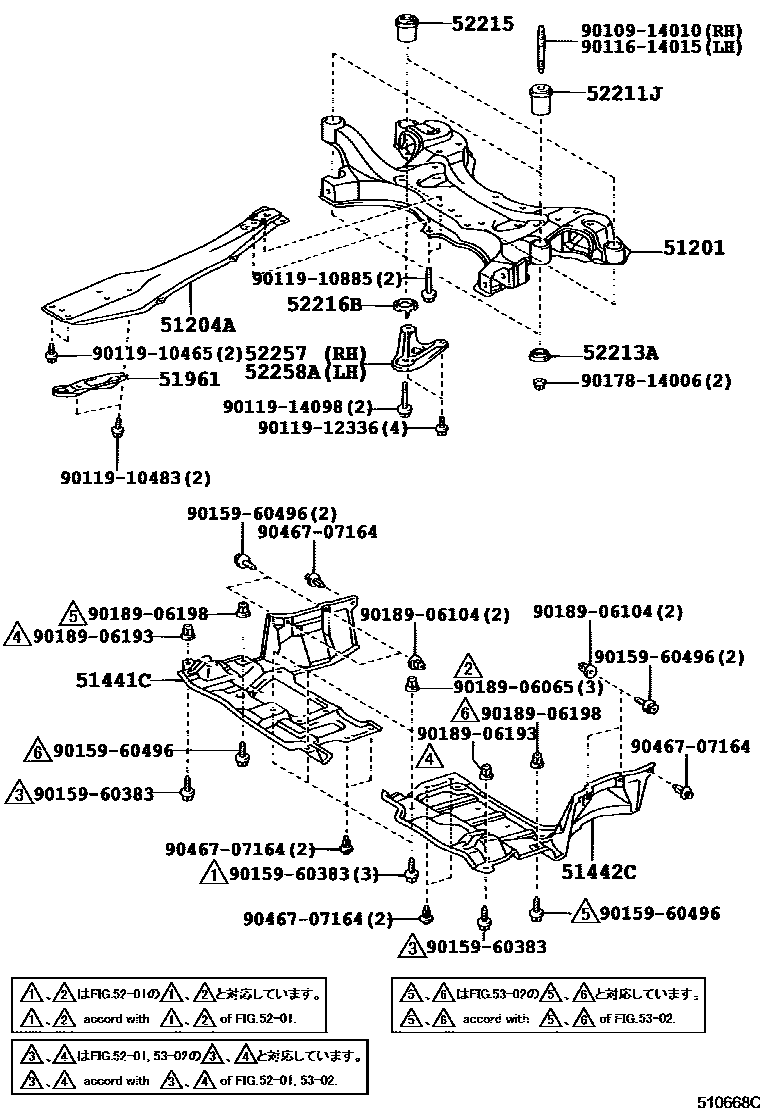

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-44020iACM21200105-200706

main51201-44030iACM26200105-200706

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-44010iACM21..07S200105-200706

main51204-44020iACM26..06S200105-200706

51441CCOVER, ENGINE UNDER, RH

main51441-44030iACM2#200105-200706

51442CCOVER, ENGINE UNDER, LH

main51442-44040iACM2#200105-200706

51961HOOK, NO.1

main51963-32040iACM2#200105-200706

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-44010iACM2#200105-200706

main52212-44010iACM2#..06S200105-200706

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-44010iACM2#200105-200706

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-44010iACM2#200105-200706

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-44010iACM2#200105-200706

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-44050iACM2#200105-200706

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-44050iACM2#200105-200706

9010914010

main90109-14010

9011614015

main90116-14015

9011910465

main90119-10465

9011910483

main90119-10483

9011910885

main90119-10885

9011912336

main90119-12336

9011914098

main90119-14098

9015960383

main90159-60383

9015960496

main90159-60496

9017814006

main90178-14006

9018906065

main90189-06065

9018906104

main90189-06104

9018906193

main90189-06193

9018906198

main90189-06198

9046707164

main90467-07164

26 parts on this diagram · 2 diagrams in section
