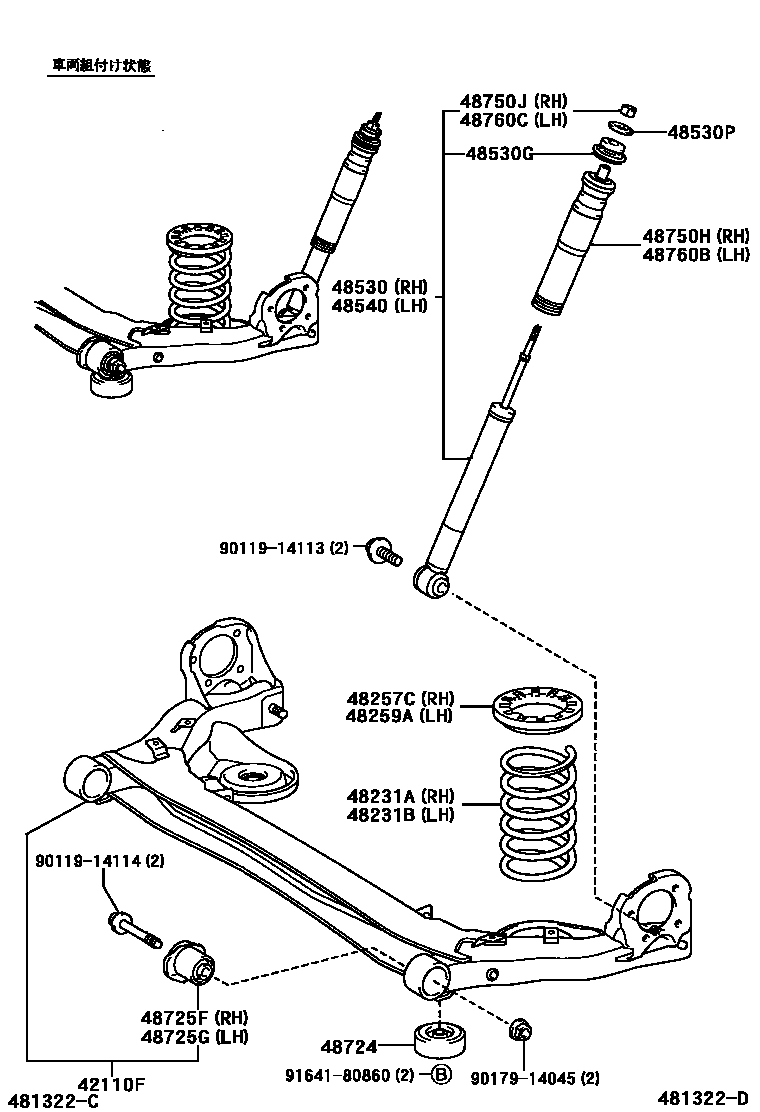

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1��(TEMS)

42110FBEAM ASSY, REAR AXLE

main42110-44060iACM2#..240I,240U200310-200506

sub42110-44061

main42110-44061iACM2#..07S..(240I,240U)200507-200706

sub42101-44051

sub48725-44051

main42110-44070iACM2#..240S200310-200506

sub42110-44071

main42110-44071iACM2#..06S..240S200507-200706

sub42101-44051

sub48725-28070

main42110-44090iACM2#200105-200310

sub42110-44091

48231ASPRING, COIL, REAR RH

main48231-44100iACM21200105-200310

main48231-44120iACM26200105-200310

main48231-44170iACM21..06S..240U200310-200706

main48231-44180iACM21..07S..240S200310-200706

main48231-44220iACM26..06S..240U200310-200706

main48231-44230iACM26..06S..240S200310-200706

48231BSPRING, COIL, REAR LH

main48231-44100iACM21200105-200310

main48231-44120iACM26200105-200310

main48231-44170iACM21..07S..(240I,240U)200310-200706

main48231-44180iACM21..06S..240S200310-200706

main48231-44220iACM26..06S..240U200310-200706

main48231-44230iACM26..06S..240S200310-200706

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-28060iACM2#200105-200706

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-28060iACM2#200105-200706

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-49235iACM21..240S,240U200105-200310

sub48530-80065

main48530-49235iACM21..240E,240I200105-200112

sub48530-80065

main48530-49245iACM26..240E,240I200105-200112

sub48530-80066

main48530-49245iACM26..240S,240U200105-200310

sub48530-80066

main48530-49495iACM21..240U200310

main48530-49505iACM26..240U200310

main48531-49225iACM21..240E,240I200105-200310

main48531-49245iACM26..240E,240I200105-200310

main48531-49305iACM21..240S200310-200705

main48531-49315iACM21..240I200310-200705

main48531-49325iACM26..07S..240S200310-200706

main48531-49335iACM26..240I200310-200705

main48531-49425iACM21..240S200705

main48531-49435iACM26..240I200705

main48531-49445iACM21..240I200705

main48531-49455iACM26..07S..240S200705

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90905-40019iACM2#..06S200105-200706

48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)

main90948-02159iACM2#200105-200304

main90948-02192iACM2#200305-200706

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-49235iACM21..240S,240U200105-200310

sub48530-80065

main48530-49245iACM26..240S,240U200105-200310

sub48530-80066

main48530-49495iACM21..240U200310

main48530-49505iACM26..240U200310

main48531-49225iACM21..240E,240I200105-200310

main48531-49245iACM26..240E,240I200105-200310

main48531-49305iACM21..240S200310-200705

main48531-49315iACM21..240I200310-200705

main48531-49325iACM26..06S..240S200310-200706

main48531-49335iACM26..240I200310-200705

main48531-49425iACM21..240S200705

main48531-49435iACM26..240I200705

main48531-49445iACM21..240I200705

main48531-49455iACM26..07S..240S200705

48724DAMPER, LWR CONTROL ARM DYNAMIC

main48724-44010iACM2#..06S200105-200706

48725FBUSH, REAR AXLE CARRIER, RH

main48725-28050iACM2#200105-200310

main48725-28070iACM2#..240S200310

main48725-44050iACM2#..240I,240U200310-200801

sub48725-44051

main48725-44051iACM2#..240I,240U200802

48725GBUSH, REAR AXLE CARRIER, LH

main48725-28050iACM2#200105-200310

main48725-28070iACM2#..240S200310

main48725-44050iACM2#..240I,240U200310-200801

sub48725-44051

main48725-44051iACM2#..240I,240U200802

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48341-28100iACM2#..240S200310-200705

main48341-44040iACM2#..240S200705

main48750-44010iACM2#200105-200705

main48750-44011iACM2#..240I,240U200705

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90170-12045iACM2#200105-200709

sub94130-61200

main94130-61200iACM2#200709

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48341-28100iACM2#..240S200310-200705

main48341-44040iACM2#..240S200705

main48750-44010iACM2#..240I,240U200105-200705

main48750-44011iACM2#..240I,240U200705

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90170-12045iACM2#200105-200709

sub94130-61200

main94130-61200iACM2#200709

9011914113

main90119-14113

9011914114

main90119-14114

9017914045

main90179-14045

9164180860

main91641-80860

20 parts on this diagram · 3 diagrams in section
