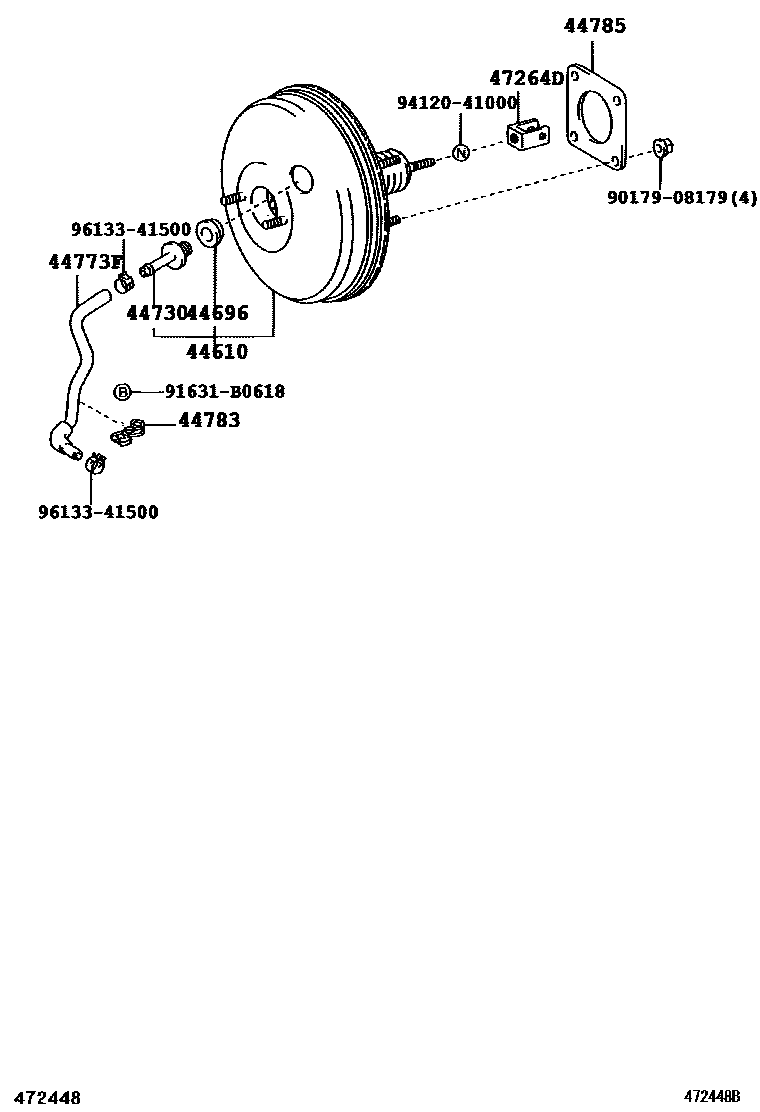

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-44140iACM26..06S200310-200706

main44610-44140iACM2#200105-200310

main44610-44210iACM2#200310-200602

sub44610-44211

main44610-44211iACM2#..06S200603-200706

44696GROMMET, CHECK VALVE

main90480-24439iACM21..07S200105-200706

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iACM21..06S200105-200706

44773FHOSE, UNION TO CHECK VALVE

main44773-44050iACM2#200105-200706

44783CLAMP, VACUUM HOSE

main44783-44010iACM2#200105-200706

44785GASKET, BRAKE BOOSTER

main44785-32010iACM2#200105-200706

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-60020iACM2#200105-200706

9017908179

main90179-08179

91631B0618

main91631-B0618

9412041000

main94120-41000

9613341500

main96133-41500

11 parts on this diagram · 1 diagram in section
