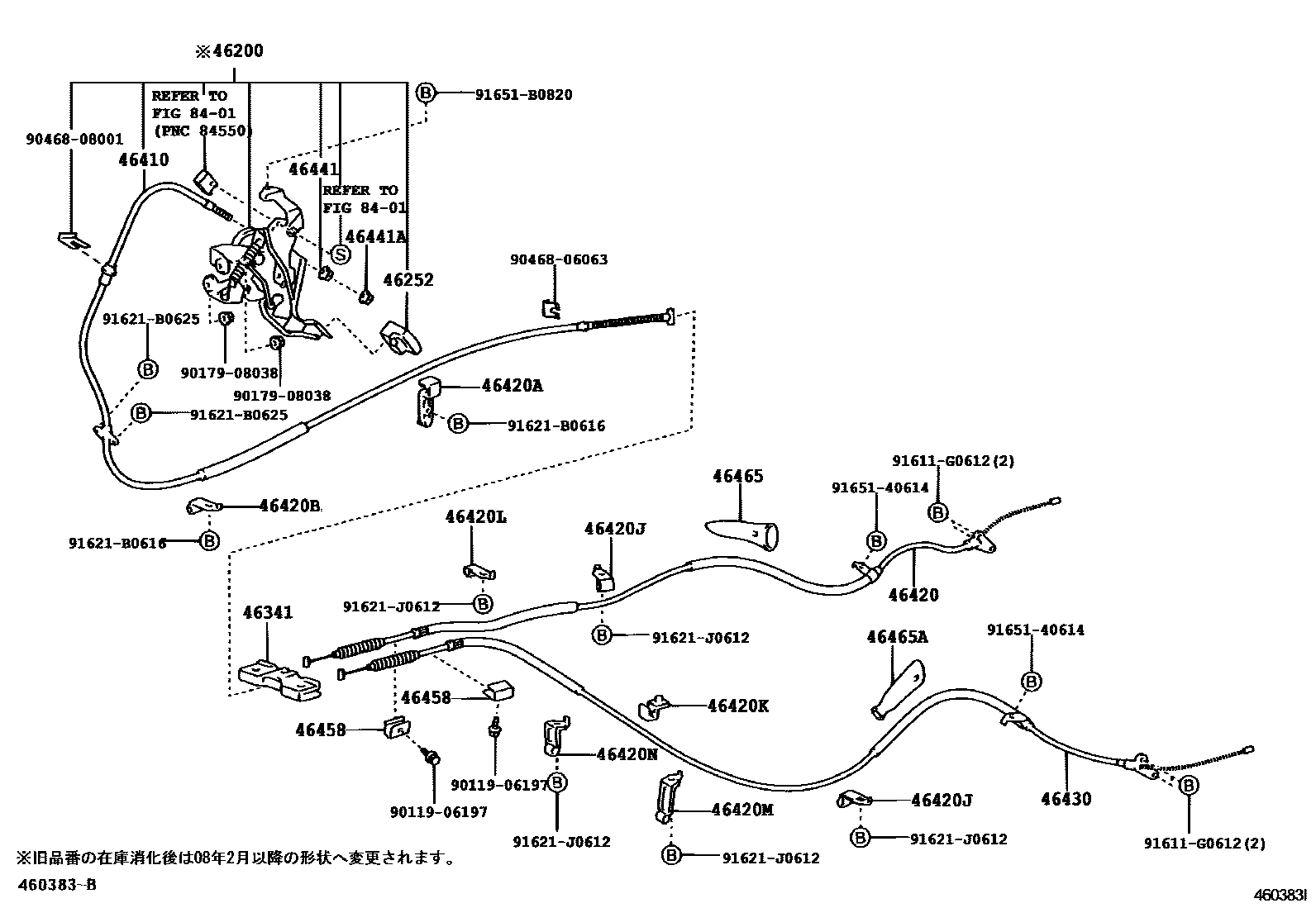

PARKING BRAKE & CABLE
46200PEDAL ASSY, PARKING BRAKE CONTROL
46252PAD, PARKING PEDAL
46341EQUALIZER, PARKING BRAKE
46410CABLE ASSY, PARKING BRAKE, NO.1
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)
46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)
46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)
46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)
46420MCLAMP, NO.6(FOR PARKING BRAKE CABLE)
46420NCLAMP, NO.7(FOR PARKING BRAKE CABLE)
46441NUT, WIRE ADJUSTING, NO.1
46458RETAINER, CABLE
46465GUIDE, PARKING BRAKE CABLE, RH
46465AGUIDE, PARKING BRAKE CABLE, LH
sub46465-28030
8401
9011906197
main90119-06197
9017908038
main90179-08038
9046806063
main90468-06063
9046808001
main90468-08001
91611G0612
main91611-G0612
91621B0616
main91621-B0616
91621B0625
main91621-B0625
91621J0612
main91621-J0612
9165140614
main91651-40614
91651B0820
main91651-B0820
29 parts on this diagram · 3 diagrams in section
