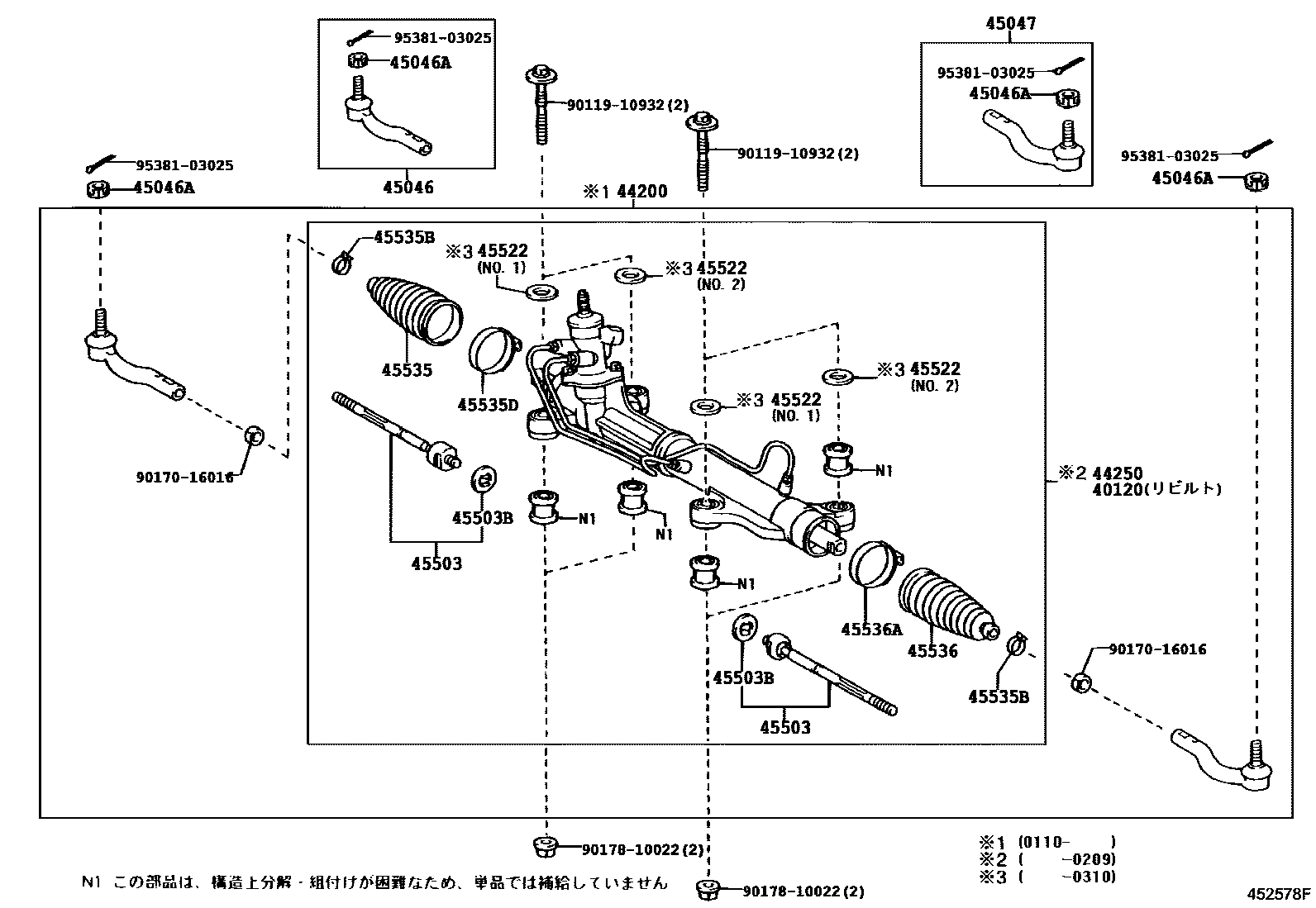

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-44140iACM21200105-200110

sub40120-44141

main40120-44141iACM21200110-200310

sub40120-44190

main40120-44160iACM26200105-200110

sub40120-44162

main40120-44161iACM26200105-200310

sub40120-44211

main40120-44170iACM21..240I,240U200105-200110

sub40120-44171

main40120-44171iACM21..240I,240U200110-200310

sub40120-44220

main40120-44180iACM26..240I,240U200105-200110

sub40120-44182

main40120-44181iACM26..240I,240U200105-200310

sub40120-44231

main40120-44190iACM21200310

main40120-44210iACM26200310

sub40120-44211

main40120-44220iACM21..240I,240U200310-200508

main40120-44230iACM26..240I,240U200310-200508

sub40120-44231

44200LINK ASSY, POWER STEERING

main44200-44140iACM21200110-200310

sub44200-44240

main44200-44161iACM26200110-200310

sub44200-44260

main44200-44170iACM21..240I,240U200110-200310

sub44200-44270

main44200-44181iACM26..240I,240U200110-200310

sub44200-44280

main44200-44240iACM21..06S200310-200706

main44200-44260iACM26..06S200310-200706

sub44200-44261

main44200-44270iACM21..240I,240U200310-200508

main44200-44280iACM26..240I,240U200310-200508

sub44200-44281

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-44140iACM21200105-200110

sub44250-44141

main44250-44141iACM21200110-200209

sub44200-44140

main44250-44160iACM26200105-200110

sub44250-44162

main44250-44161iACM26200105-200209

sub44200-44161

main44250-44170iACM21..240I,240U200105-200110

sub44250-44171

main44250-44171iACM21..240I,240U200110-200209

sub44200-44170

main44250-44180iACM26..240I,240U200105-200110

sub44250-44182

main44250-44181iACM26..240I,240U200105-200209

sub44200-44181

45046END SUB-ASSY, TIE ROD, RH

main45046-49125iACM26200105-200310

main45047-49055iACM21200105-200310

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iACM2#..06S200105-200706

45047END SUB-ASSY, TIE ROD, LH

main45046-49125iACM21200105-200310

main45047-49055iACM26200105-200310

45503END SUB-ASSY, STEERING RACK

main45503-49105iACM21200105-200310

main45503-49115iACM26200105-200310

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14007iACM2#200105-200706

45522BUSH, STEERING RACK

main45522-44010iACM21200105-200310

main45522-44020iACM21200105-200310

45535BOOT, STEERING RACK, NO.1

main45535-44010iACM2#200105-200706

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19018iACM2#200105-200204

sub90467-19021

main90467-19021iACM2#200204-200706

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016iACM2#200105-200706

45536BOOT, STEERING RACK, NO.2

main45535-44010iACM2#200105-200706

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016iACM2#200105-200706

9011910932

main90119-10932

9017016016

main90170-16016

9017810022

main90178-10022

9538103025

main95381-03025

18 parts on this diagram · 3 diagrams in section
