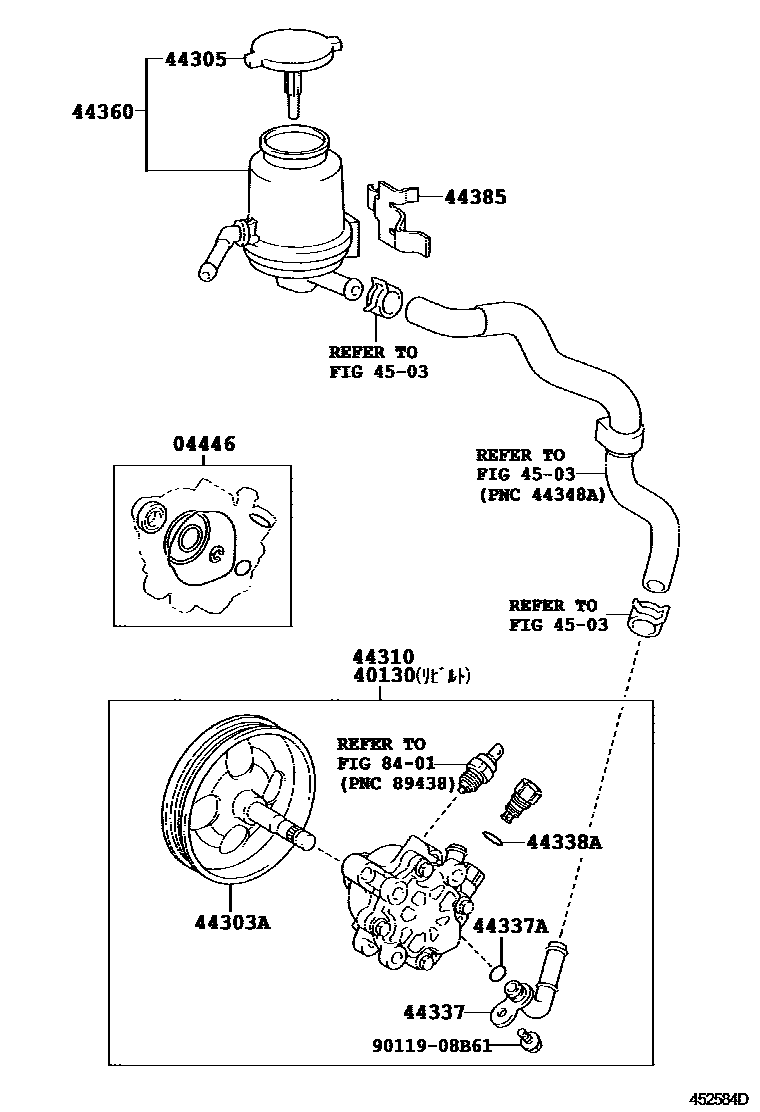

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-20170iACM2#200611

main04446-32050iACM2#200105-200611

40130PUMP ASSY,VANE REBUILT

main40130-28270iACM2#200611

sub44310-28270

main40130-42070iACM2#200105-200611

sub40130-28270

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iACM2#200105-200706

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iACM2#200310-200801

sub44305-28060

main44305-28060iACM2#200802

sub44305-28061

44310PUMP ASSY, VANE

main44310-28270iACM2#..06S200611-200706

main44310-42070iACM2#200105-200610

sub44310-28270

44337UNION, POWER STEERING SUCTION PORT

main44337-42010iACM2#200105-200706

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iACM2#200105-200310

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-18009iACM2#200310

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-44010iACM2#200105-200310

sub44360-44030

main44360-44030iACM2#..06S200310-200706

44385SUPPORT, SPRING, UPPER(FOR VANE PUMP OIL RESERVOIR)

main44385-38010iACM2#200105-200706

4503

8401

9011908B61

main90119-08B61

13 parts on this diagram · 1 diagram in section
