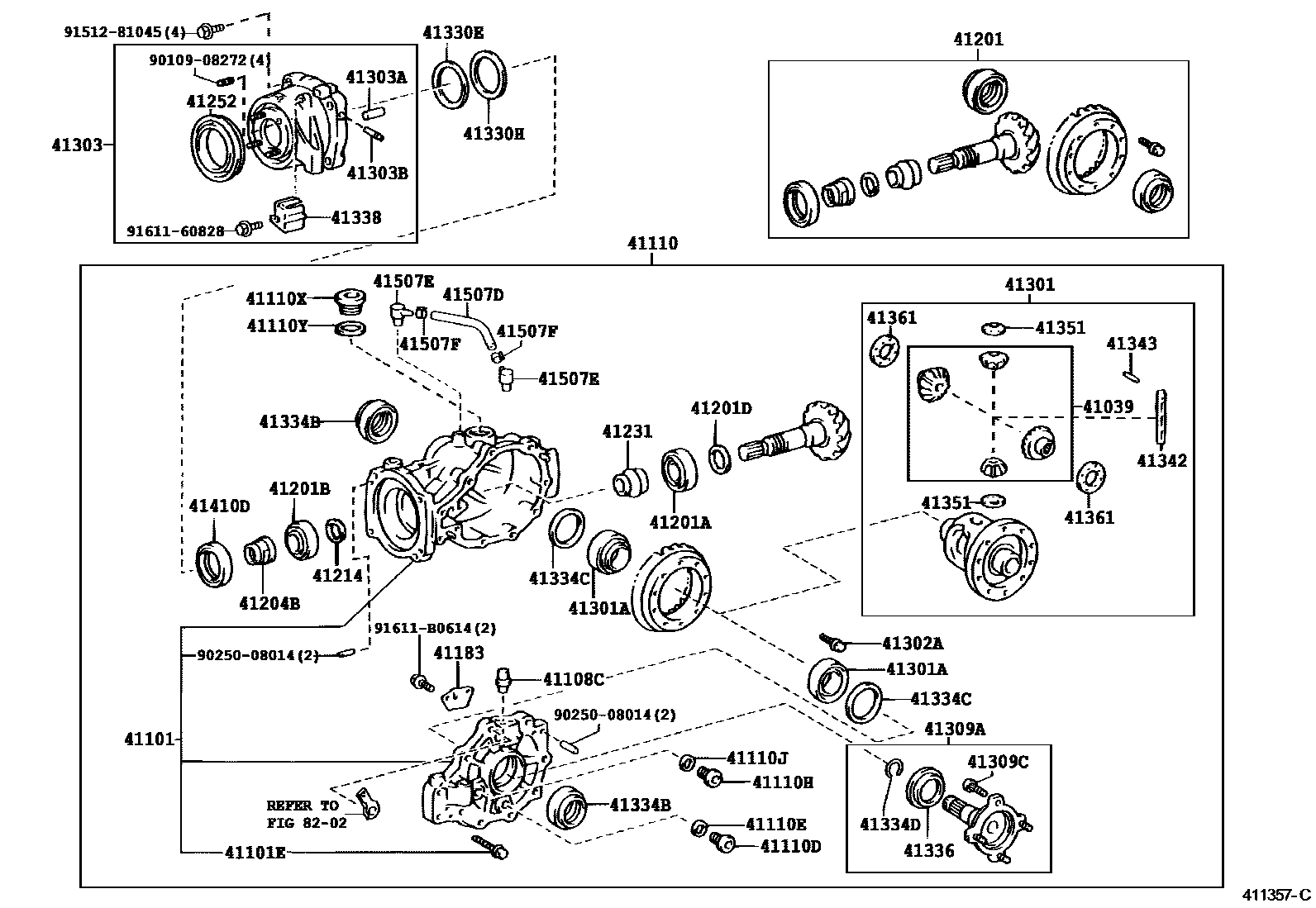

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
sub41101-44012
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)
sub90930-03235
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41110XPLUG (FOR DIFFERENTIAL INSPECTION)
41110YGASKET (FOR DIFFERENTIAL INSPECTION PLUG)
41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
sub41201-80690
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41303COUPLING SUB-ASSY, ELECTRO MAGNETIC CONTROL
sub41303-28011
41303APIN, STRAIGHT (FOR ELECTRO MAGNETIC CONTROL COUPLING)
41303BTUBE (FOR ELECTRO MAGNETIC CONTROL COUPLING)
41309CBOLT (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41330EWASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING)
41330HSPACER (FOR TRANSMISSION COUPLING)
41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
sub90311-42046
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41338BRACKET, CONNECTOR CLAMP
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41410DSEAL, OIL DIAPHRAGM
8202
9010908272
main90109-08272
9025008014
main90250-08014
9151281045
main91512-81045
9161160828
main91611-60828
91611B0614
main91611-B0614
49 parts on this diagram · 3 diagrams in section
