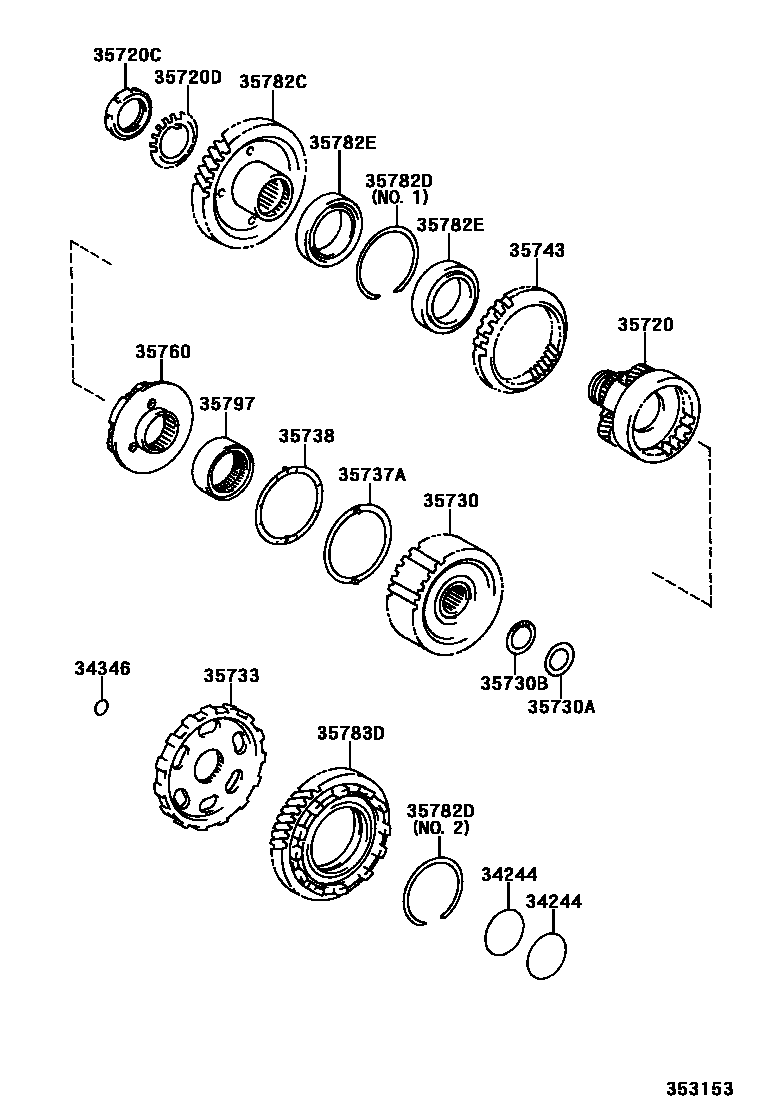

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL

main34244-21010iACM2#200105-200310

34346RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL

main34346-21011iACM26200105-200310

main34346-28010iACM26200105-200612

sub34346-21011

35720GEAR ASSY, FRONT PLANETARY

main35720-21010iACM21200105-200208

sub35720-44010

main35720-28040iACM26200105-200207

sub35720-28080

main35720-28080iACM26..06S200207-200706

main35720-44010iACM21200208-200706

sub35720-28080

35720CNUT (FOR FRONT PLANETARY GEAR)

main90179-46001iACM2#200105-200706

35720DWASHER (FOR FRONT PLANETARY GEAR)

main90209-46001iACM2#200105-200706

35730GEAR ASSY, REAR PLANETARY SUN

main35730-21010iACM21200105-200706

sub35730-28020

main35730-28010iACM26200105-200203

sub35730-28020

sub35737-28020

main35730-28020iACM26..06S200203-200706

35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)

main35789-21010iACM2#200105-200706

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-33003iACM2#200105-200706

35733GEAR, PARKING LOCK

main35733-21010iACM26200105-200310

main35733-32030iACM21200105-200310

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-21010iACM21..06S200105-200706

main35737-28010iACM26..06S200105-200706

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35737-21010iACM21200105-200706

main35737-28010iACM26200105-200203

main35737-28020iACM26..06S200203-200706

35743GEAR, FRONT PLANETARY RING

main35743-21010iACM21..07S200105-200706

sub35743-28010

main35743-28010iACM26..07S200105-200706

35760GEAR ASSY, REAR PLANETARY

main35760-21020iACM21200105-200208

sub35760-33030

main35760-28010iACM26200105-200706

main35760-33030iACM21..07S200208-200706

sub35760-28010

35782CGEAR, COUNTER DRIVE

main35782-28010iACM26..07S200105-200706

main35782-32031iACM21200105-200706

sub35782-28020

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-84001iACM2#200105-200310

main90520-89002iACM26200105-200310

sub90520-89004

main90520-89004iACM21200206-200310

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90366-60009iACM26..06S200105-200706

main90369-59001iACM21..07S200402-200706

35783DGEAR, COUNTER DRIVEN

main35783-28010iACM26200105-200310

main35783-32031iACM21200105-200502

sub35783-33040

main35783-33040iACM21200502

sub35783-28020

35797RACE, 1 WAY CLUTCH INNER

main35797-21010iACM2#..07S200105-200706

18 parts on this diagram · 1 diagram in section
