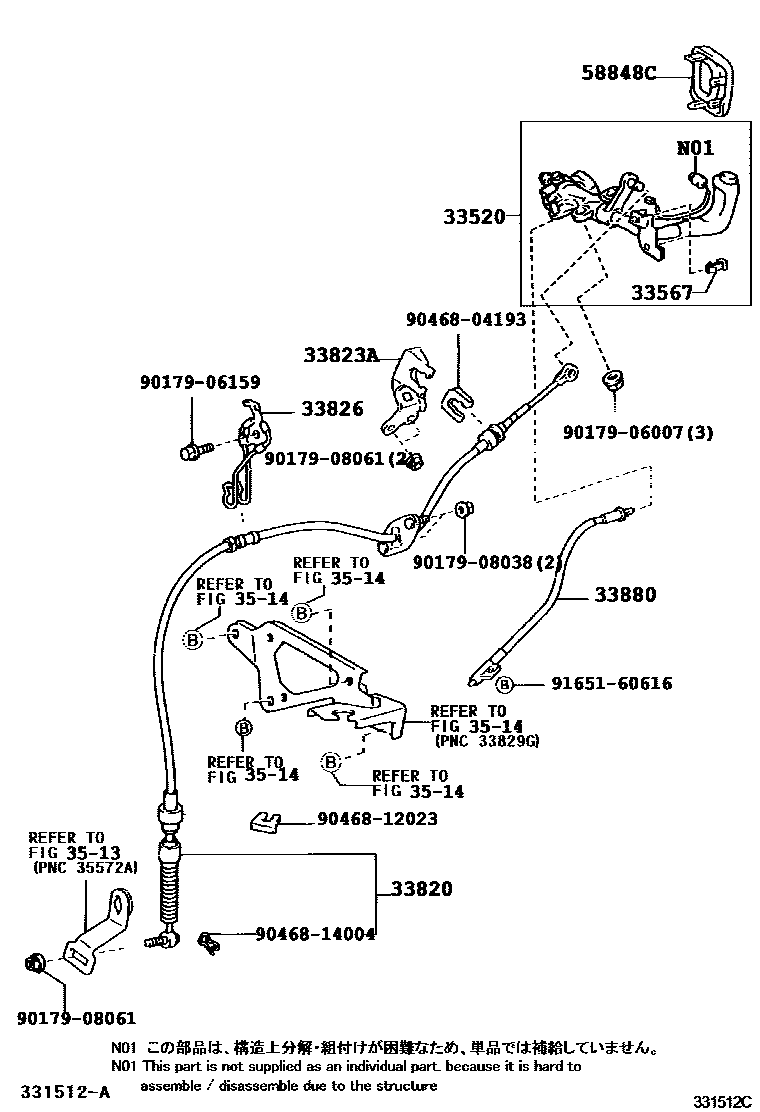

CONTROL SHAFT & CROSSSHAFT

33520SHAFT ASSY, CONTROL

main33520-44070-C0iACM2#200105-200311

BLACK,TRIM1#

sub33520-44071

main33520-44070-E0iACM2#..240E,240I,240U200105-200310

ORCHID BROWN,TRIM0#

sub33520-44071

main33520-44070-E1iACM2#..240I,240U200310-200311

SANDAL WOOD,TRIM0#

sub33520-44071

main33520-44071-C0iACM2#..240S200311-200912

BLACK,TRIM1#

main33520-44071-E1iACM2#..240I,240U200311-200912

SANDAL WOOD,TRIM0#

main33520-44110-E0iACM2#..240I200412-200507

33567CLAMP, CONTROL SHAFT TUBE

main33567-44010iACM2#200311

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-44160iACM2#200105-200706

sub33820-44161

33823ABRACKET, TRANSMISSION CONTROL CABLE

main33823-44070iACM2#..06S200105-200706

33826BRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33826-44080iACM2#..06S200105-200706

33880CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)

main33880-28051iACM2#..07S200105-200706

3513

3514

58848CCOVER, SHIFT LEVER HOLE

main58848-44010-A0iACM2#..240E,240I,240U200105-200912

IVORY,TRIM0#

sub58848-44010

main58848-44010-B0iACM2#200105-200310

MD.GRAY,TRIM1#

sub58848-44010

main58848-44010-B1iACM2#..240S200310-200912

DK.GRAY,TRIM1#

sub58848-44010

9017906007

main90179-06007

9017906159

main90179-06159

9017908038

main90179-08038

9017908061

main90179-08061

9046804193

main90468-04193

9046812023

main90468-12023

9046814004

main90468-14004

9165160616

main91651-60616

17 parts on this diagram · 1 diagram in section
