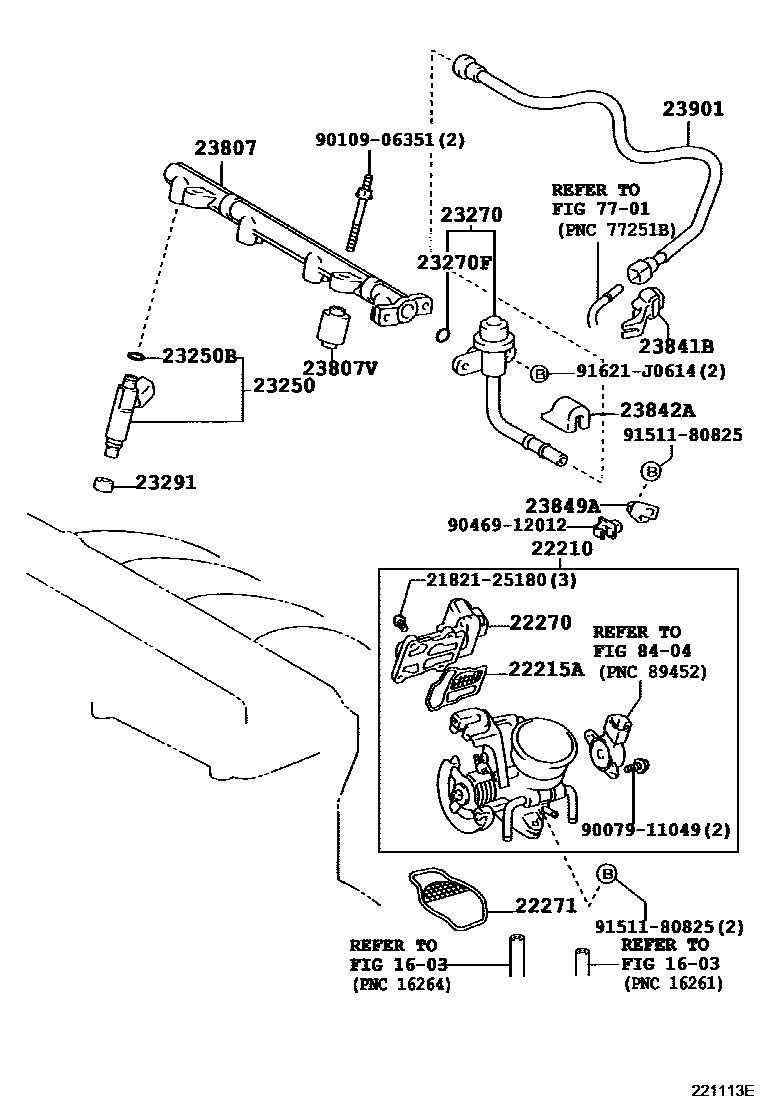

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1603

22210BODY ASSY, THROTTLE

main22210-28050i2AZFE..ACM2#200105-200310

sub22210-28130

22215AGASKET, IDLE SPEED CONTROL VALVE

main22215-28041i2AZFE..ACM2#200105-200108

sub22215-28042

main22215-28042i2AZFE..ACM2#200108-200310

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-28010i2AZFE..ACM2#200105-200310

22271GASKET, THROTTLE BODY

main22271-28020i2AZFE..ACM2#..06S200105-200706

23250INJECTOR ASSY, FUEL

main23209-0H030i2AZFE..ACM2#200711

main23209-28020i2AZFE..ACM2#200105-200310

main23209-28080i2AZFE..ACM2#200310-200711

main23209-28080i2AZFE..ACM2#200711

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i2AZFE..ACM2#200105-200607

main90301-07037i2AZFE..ACM2#200607

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28020i2AZFE..ACM2#200105-200801

sub23270-28021

main23270-28021i2AZFE..ACM2#200801

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2AZFE..ACM2#200310

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i2AZFE..ACM2#200105-200310

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-28020i2AZFE..ACM2#200105-200312

sub23814-28031

main23814-28031i2AZFE..ACM2#..06S200312-200706

sub23814-28060

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08053i2AZFE..ACM2#200105-200706

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i2AZFE..ACM2#..07S200607-200706

main23841-28010i2AZFE..ACM2#200105-200606

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i2AZFE..ACM2#200105-200706

23849ASUPPORT, FUEL PIPE

main23849-28010i2AZFE..ACM2#200105-200310

main23849-28030i2AZFE..ACM2#..06S200310-200706

23901TUBE SUB-ASSY, FUEL

main23901-28100i2AZFE..ACM2#200105-200310

main23901-28260i2AZFE..ACM2#..06S200310-200706

7701

8404

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9007911049

main90079-11049

9010906351

main90109-06351

9046912012

main90469-12012

9151180825

main91511-80825

91621J0614

main91621-J0614

24 parts on this diagram · 4 diagrams in section
