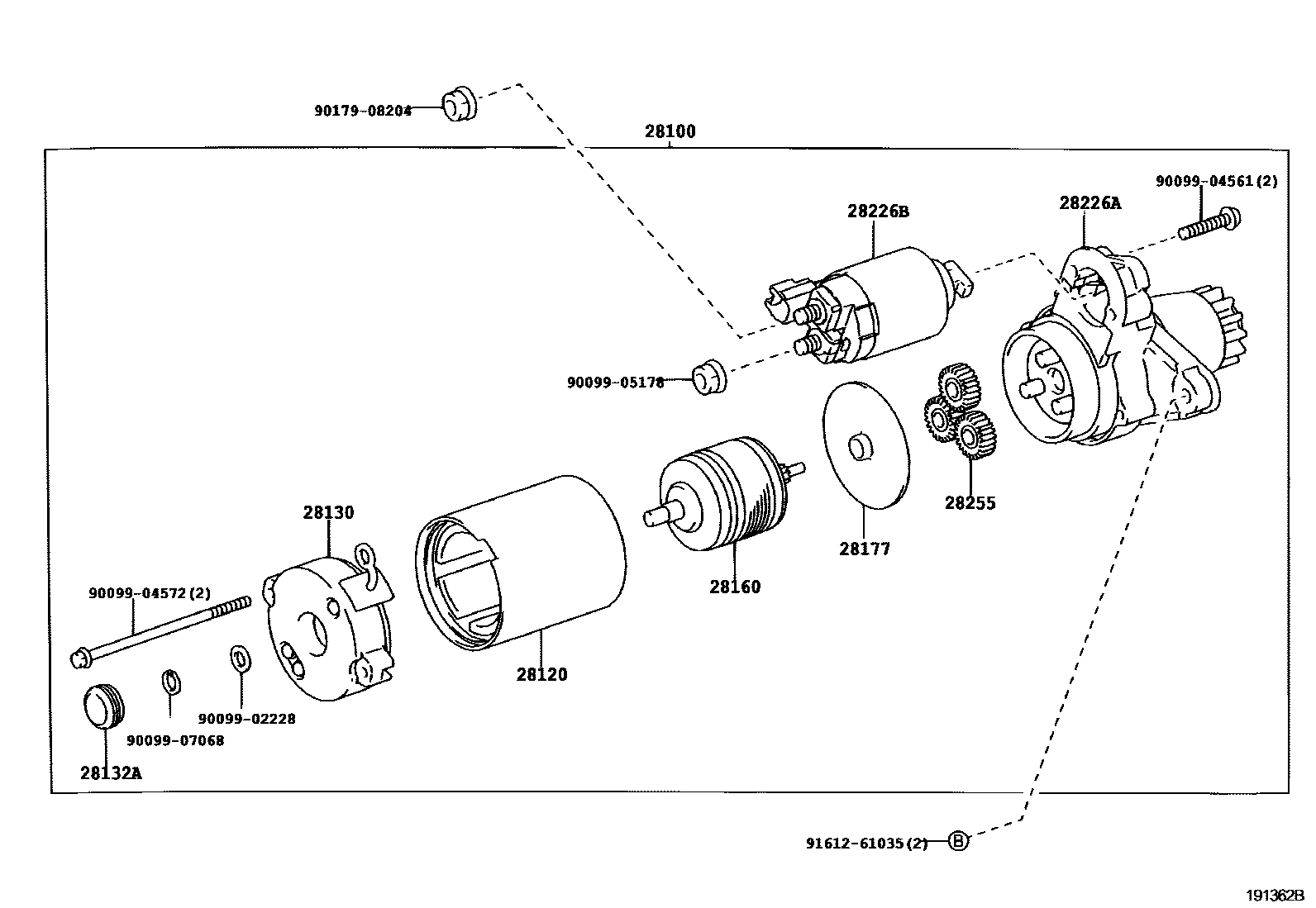

STARTER

28100STARTER ASSY

main28100-28040i2AZFE..ACM2#200105-200107

sub28100-28041

main28100-28041i2AZFE..ACM2#200107-200911

sub28100-28042

main28100-28050i2AZFE..ACM2#200105-200107

sub28100-28051

main28100-28051i2AZFE..ACM2#200107-200401

sub28100-28052

main28100-28052i2AZFE..ACM2#200401-200909

sub28100-28053

main28100-28053i2AZFE..ACM2#200910-200912

28120YOKE ASSY, STARTER

main28120-28040i2AZFE..ACM2#200105-200808

12V 1.6KW

sub28120-28060

main28120-28050i2AZFE..ACM2#200105-200808

12V 1.3KW

sub28120-28080

main28120-28060i2AZFE..ACM2#200808-200912

12V 1.6KW

main28120-28080i2AZFE..ACM2#200808-200912

12V 1.3KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-28040i2AZFE..ACM2#200105-200912

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2AZFE..ACM2#200105-200912

28160ARMATURE ASSY, STARTER

main28160-28040i2AZFE..ACM2#200105-200912

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2AZFE..ACM2#200105-200912

28226ASTARTER KIT, MOTOR TERMINAL

main28226-28040i2AZFE..ACM2#200105-200107

sub28226-28041

main28226-28041i2AZFE..ACM2#200107-200912

28226BSTARTER KIT, REPAIR SERVICE

main28226-28050i2AZFE..ACM2#200105-200205

sub28226-28051

main28226-28051i2AZFE..ACM2#200205-200912

28255GEAR, PLANET

main28255-28040i2AZFE..ACM2#200105-200912

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9017908204

main90179-08204

9161261035

main91612-61035

16 parts on this diagram · 1 diagram in section
