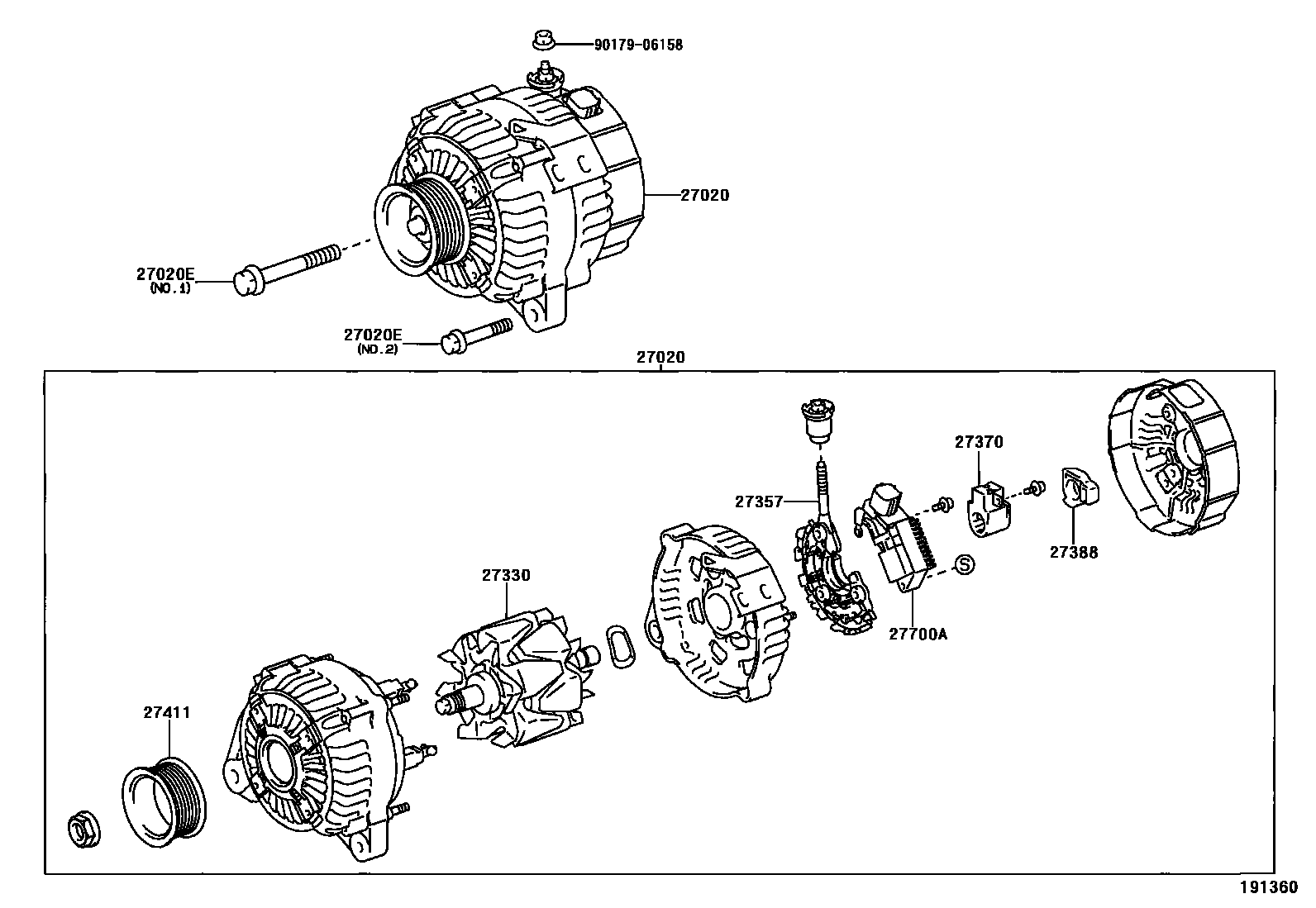

ALTERNATOR

0001 112V 120A 0002 112V 130A

27020ALTERNATOR ASSY

main27060-28160i2AZFE..ACM2#200105-200310

main27060-28230i2AZFE..ACM2#..06S200310-200706

27020EBOLT(FOR ALTERNATOR)

main91511-60840i2AZFE..ACM2#200105-200310

sub91511-J0840

main91511-J0840i2AZFE..ACM2#200310-200510

main91512-81085i2AZFE..ACM2#200105-200706

main91551-80840i2AZFE..ACM2#..06S200511-200706

27330ROTOR ASSY, ALTERNATOR

main27330-20070i2AZFE..ACM2#200105-200310

main27330-20130i2AZFE..ACM2#200310-200602

sub27330-33090

main27330-33090i2AZFE..ACM2#..06S200602-200706

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-17230i2AZFE..ACM2#200105-200310

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-20130i2AZFE..ACM2#200310-200602

main27370-58460i2AZFE..ACM2#..07S200602-200706

main27370-75060i2AZFE..ACM2#200105-200310

27388COVER, ALTERNATOR BRUSH

main27388-42010i2AZFE..ACM2#200105-200310

27411PULLEY, ALTERNATOR

main27411-28060i2AZFE..ACM2#200105-200706

27700AREGULATOR ASSY, GENERATOR

main27700-21040i2AZFE..ACM2#200105-200310

9017906158

main90179-06158

9 parts on this diagram · 2 diagrams in section
