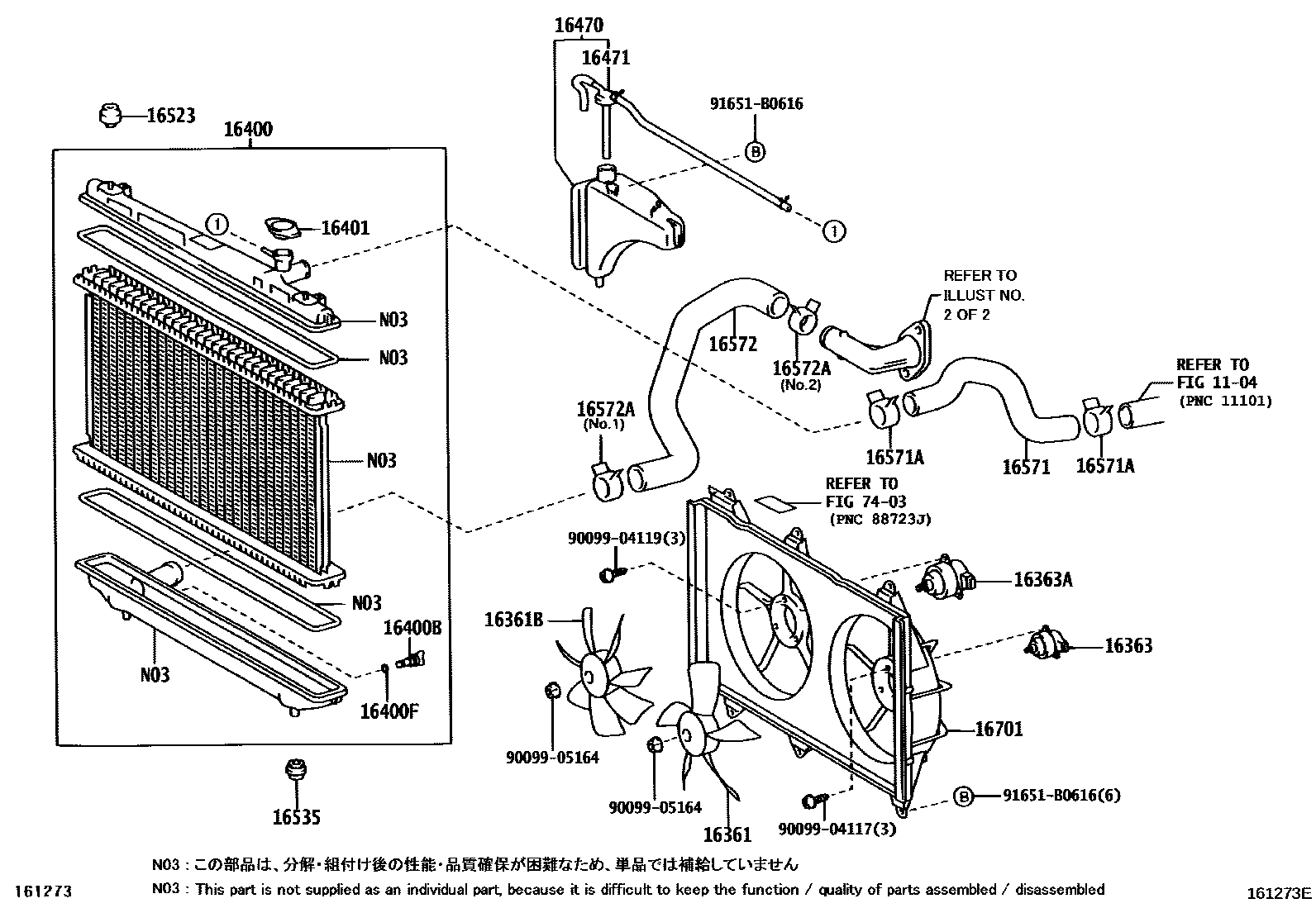

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

1104

16361FAN

main16361-28020i2AZFE..ACM2#200105-200407

sub16361-28021

main16361-28021i2AZFE..ACM2#..06S200408-200706

16361BFAN, NO.2

main16361-23040i2AZFE..ACM2#200105-200201

sub16361-28100

main16361-28100i2AZFE..ACM2#200201-200706

16363MOTOR, COOLING FAN

main16363-23010i2AZFE..ACM2#200105-200706

16363AMOTOR, COOLING FAN, NO.2

main16363-23020i2AZFE..ACM2#200105-200304

main16363-28150i2AZFE..ACM2#..06S200305-200706

16400RADIATOR ASSY

main16400-28290i2AZFE..ACM2#..06S200105-200706

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i2AZFE..ACM2#200105-200310

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2AZFE..ACM2#200105-200310

16401CAP SUB-ASSY, RADIATOR

main16401-31480i2AZFE..ACM2#200807

main16401-62100i2AZFE..ACM2#200105-200806

sub16401-31520

16470TANK ASSY, RADIATOR RESERVE

main16470-28070i2AZFE..ACM2#200105-200706

16471CAP SUB-ASSY, RESERVE TANK

main16405-28040i2AZFE..ACM2#200105-200706

16523CUSHION, SUB-RADIATOR SUPPORT

main16523-28010i2AZFE..ACM2#200105-200706

16535SUPPORT, RADIATOR, LOWER

main16535-74150i2AZFE..ACM2#..07S200105-200706

16571HOSE, RADIATOR, INLET

main16571-28120i2AZFE..ACM2#200105-200706

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37005i2AZFE..ACM2#..06S200204-200706

main90467-37006i2AZFE..ACM2#200105-200204

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-28090i2AZFE..ACM2#..07S200105-200706

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-37002i2AZFE..ACM2#..07S200105-200706

main90467-37005i2AZFE..ACM2#..07S200204-200706

main90467-37006i2AZFE..ACM2#200105-200204

sub90467-37005

16701SHROUD SUB-ASSY, FAN

main16711-28220i2AZFE..ACM2#200105-200706

7403

9009904117

main90099-04117

9009904119

main90099-04119

9009905164

main90099-05164

91651B0616

main91651-B0616

23 parts on this diagram · 3 diagrams in section
