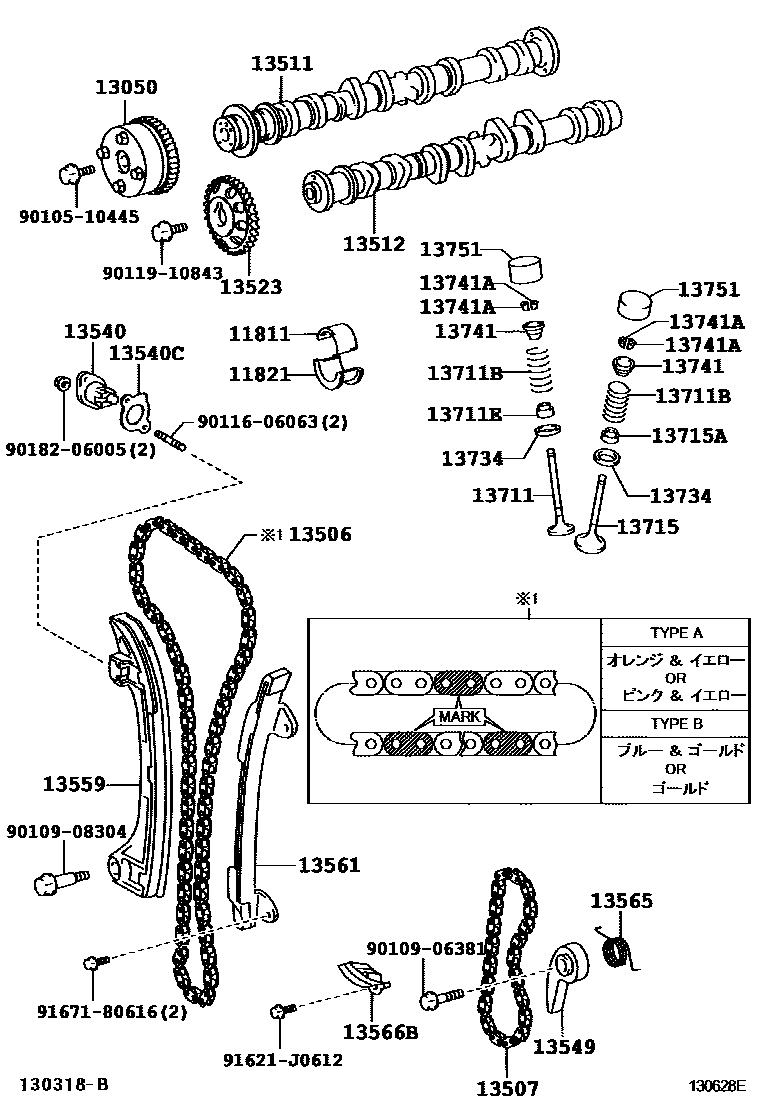

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
MARK 1
MARK 2
MARK 3
11821BEARING, CAMSHAFT, NO.2
MARK 1
MARK 2
MARK 3
13050GEAR ASSY, CAMSHAFT TIMING
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
13512CAMSHAFT, NO.2
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13549PLATE, CHAIN TENSIONER
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13565SPRING, CHAIN DAMPER
13566BGUIDE, TIMING CHAIN
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
9010510445
9010906381
9010908304
9011606063
9011910843
9018206005
91621J0612
9167180616
32 parts on this diagram · 1 diagram in section
