STANDARD TOOL

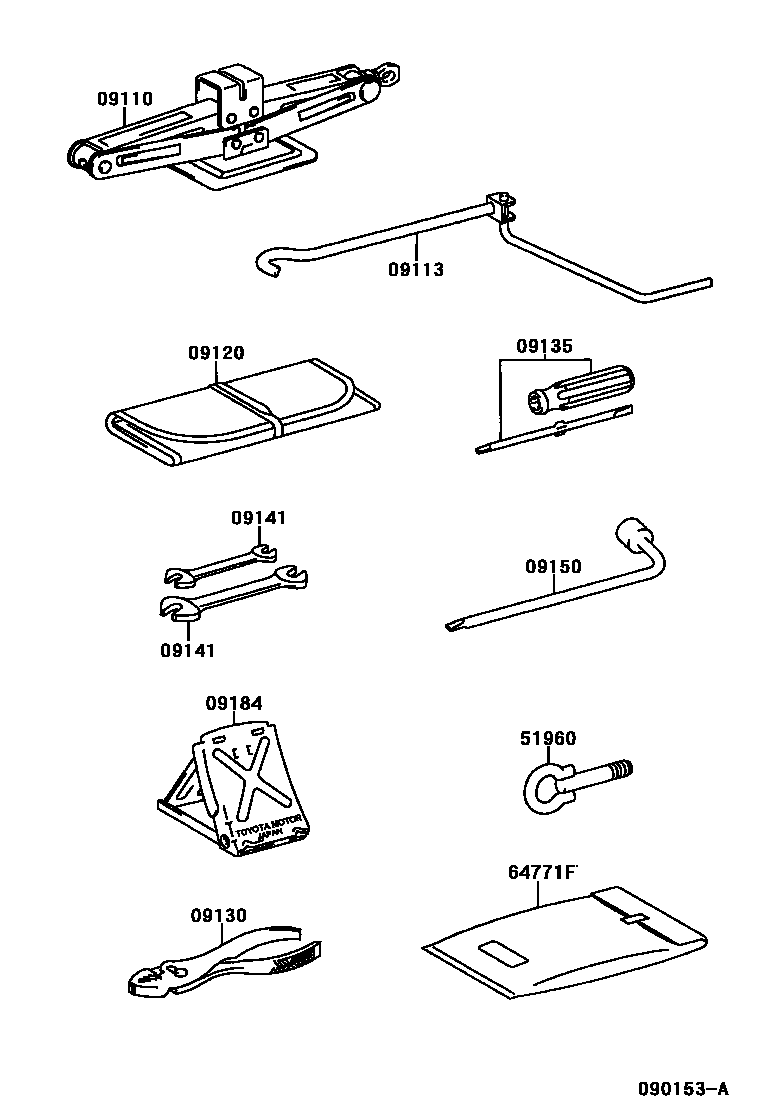

Parts diagram

09110JACK ASSY

main09110-44010i200105-200706

09113HANDLE, JACK

main09113-44010i200105-200706

09120BAG, TOOL

main09120-12011i200105-200310

main09120-16030i200105-200706

09130PLIERS

main99913-11500i200105-200706

09135DRIVER, SCREW

main99915-10700i200105-200706

09141SPANNER

main99914-10810i200105-200706

main99914-11214i200105-200706

09150WRENCH, HUB NUT BOX

main09150-40010i200105-200912

09184STOPPER, WHEEL

main09184-00010i200105-200912

51960HOOK ASSY, FRONT

main51960-28010i200105-200706

main51960-28010i200310

64771FCOVER, SPARE WHEEL

main64771-44010i200105-200912

10 parts on this diagram · 1 diagram in section
