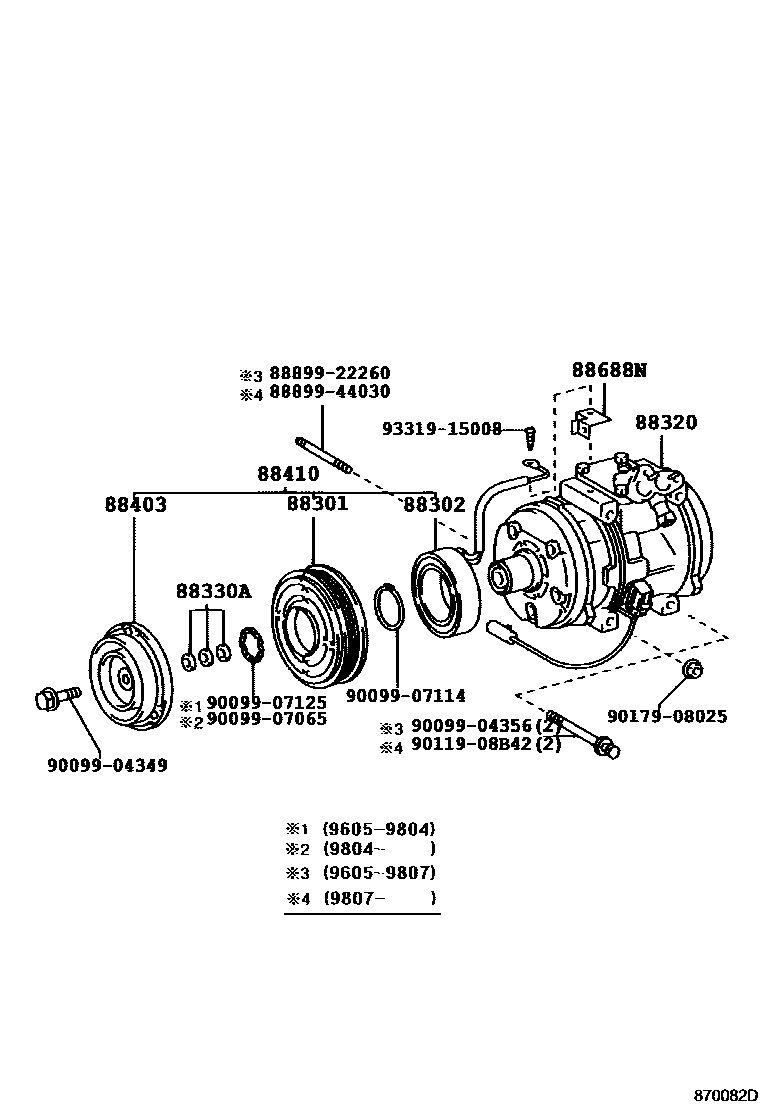

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-32070iSXM10..E199807

main88412-44010iSXM1#199605-199807

main88412-44050iCXM10,SXM1#..ATG,IPSUM,L199807

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iSXM1#199605-199708

sub88411-2A030

main88411-2A030iCXM10,SXM1#199708-199807

main88411-44010iSXM10..E199807

88320COMPRESSOR ASSY, COOLER

main88320-44010iSXM1#..E,IPSUM199605-199804

sub88320-44H90

main88320-44020iSXM1#199605-199804

sub88320-44H91

main88320-44030iCXM10..E199709-199804

sub88320-44H90

main88320-44040iCXM10..IPSUM,L199709-199804

sub88320-44H91

main88320-44050iSXM10..E199804-199807

main88320-44060iSXM1#..ATG,IPSUM,L199804-199807

sub88320-44H92

main88320-44080iCXM10199804-199807

sub88320-44H92

main88320-44110iSXM10..E199807-200105

main88320-48040iCXM10,SXM1#..ATG,IPSUM,L199807-200105

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iSXM1#199605-199708

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iCXM10,SXM1#..ATG,IPSUM,L199807

main88403-30290iSXM1#199605-199807

main88403-32010iSXM10..E199807

88410CLUTCH ASSY, MAGNET

main88410-44010iCXM10,SXM1#199605-199807

main88410-44050iCXM10,SXM1#..ATG,IPSUM,L199807

main88410-44060iSXM10..E199807

88688NBRACKET, COOLER

main88688-2D800iCXM10199709-199807

main88688-32670iCXM10,SXM1#..ATG,IPSUM,L199807

main88688-33260iSXM1#199605-199807

8889922260COVER, EVAPORATOR

main88899-22260

8889944030COVER, EVAPORATOR

main88899-44030

9009904349

main90099-04349

9009904356

main90099-04356

9009907065

main90099-07065

9009907114

main90099-07114

9009907125

main90099-07125

9011908B42

main90119-08B42

9017908025

main90179-08025

9331915008

main93319-15008

17 parts on this diagram · 2 diagrams in section
